Hub Sprockets: what size range does the table cover?

The table lists 333 standard sprockets for 10 chain sizes (05B / 06B / 081 / 083 / 08B / 10B / 12B / 16B / 20B / 24B), 8–57 teeth, in single, double and triple strand versions. Bores, keyways and set-screw holes are machined to your drawing; other tooth counts and chain sizes are made to order.

Hub Sprockets: what is it and when should I use it?

Hub sprockets with a boss — the hub takes bores, keyways and set screws; rigid and shaft-ready. Made to GB/T 1243 / ISO 606 / DIN 8187 tooth forms, teeth can be induction hardened. The table lists teeth z, OD de, pitch dia. dp and hub dimensions for single / double / triple rows by chain number. Hub sprockets take bores, keyways and set screws directly and are the shaft-ready default; plate sprockets are the light, economical option to weld or bolt onto a hub or flange; taper-bushed sprockets mount keyless with a Taper-Lock bush for quick, well-centred fitting and removal. Tooth forms follow GB/T 1243 / ISO 606 / DIN 8187 and teeth can be induction hardened.

Hub Sprockets: can I order a size that is not in the table, or just one piece?

Yes. Everything on this page is made to drawing, and the table is only the standard-size subset of the catalogue. Minimum order quantity is one piece — we routinely make single replacement parts for OEMs whose original supplier has discontinued the item. Send a DWG, STEP or PDF drawing (or a sample part): you get a formal quotation within 24 hours after the information is complete, and the first article ships within 30 days of drawing approval, with inspection records.

Hub Sprockets: what do I need to send to get a quote?

Send the drawing or: chain size (ANSI/ISO number or pitch), number of teeth, strands, hub type (A/B/C/D) and dimensions, bore with tolerance and keyway, set-screw holes, hardening requirement and quantity. For a non-standard chain, send the chain spec sheet or the chain itself.

Hub Sprockets | Wolfer

Name: Custom Gears for Robotics
Brand: Wolfer

Specifications · Selector

Hub sprocket selector

All 333 standard sizes from the catalogue PDF across 10 chain sizes. Switch chain size with the tabs; search by model or filter by teeth. All dimensions in mm.

Select by chain size

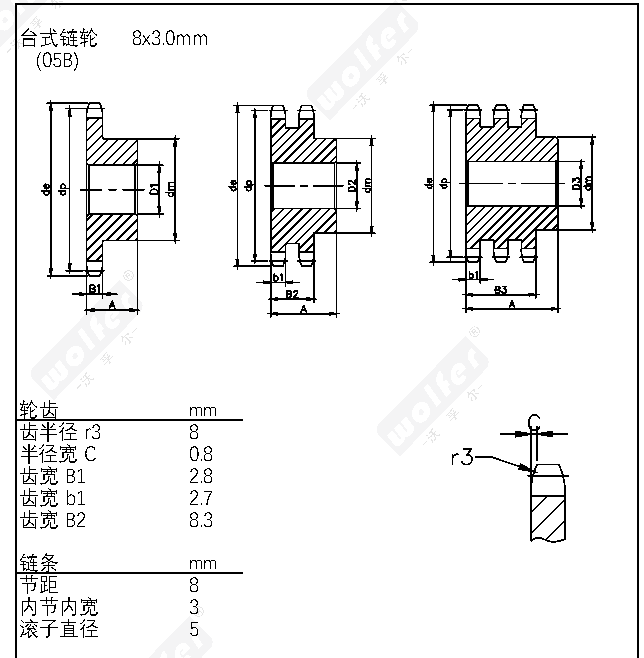

05B tooth & hub section — 05B · tooth & hub section

Hub sprockets · DIN 8187 / ISO 606 · single / double / triple strand (column superscripts ¹ ² ³) · de tip Ø · dp pitch Ø · dm hub Ø · D hub length · A strand spacing (mm) · Model code: chain-teeth

Model search

Teeth z

–

Complete size table · 333 sizes (static version for printing and full-text search)

Hub sprocket selector — 05B (36)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
05B-8Z	8	23.4	20.9	13	6	12	12	6	18	—	—	—
05B-9Z	9	25.9	23.39	15	6	12	15	6	18	—	—	—
05B-10Z	10	28.4	25.89	17	6	12	17	8	18	—	—	—
05B-11Z	11	31	28.39	18	7	13	19	8	18	—	—	—
05B-12Z	12	33.7	30.91	20	7	13	21	8	18	—	—	—
05B-13Z	13	36.7	33.42	23	7	13	24	8	18	—	—	—
05B-14Z	14	39.2	35.95	25	7	13	26	8	18	—	—	—
05B-15Z	15	41.7	38.48	28	7	13	29	8	18	—	—	—
05B-16Z	16	44.2	41.01	30	8	14	32	10	20	—	—	—
05B-17Z	17	46.7	43.53	30	8	14	34	10	20	—	—	—
05B-18Z	18	49.2	46.07	30	8	14	37	10	20	—	—	—
05B-19Z	19	51.7	48.61	30	8	14	39	10	20	—	—	—
05B-20Z	20	54.2	51.14	30	8	14	40	10	20	—	—	—
05B-21Z	21	57.2	53.67	35	8	14	45	12	20	—	—	—
05B-22Z	22	59.4	56.21	35	8	14	45	12	20	—	—	—
05B-23Z	23	62.2	58.75	35	8	14	45	12	20	—	—	—
05B-24Z	24	64.7	61.29	35	8	14	45	12	20	—	—	—
05B-25Z	25	67.2	63.83	35	8	14	45	12	20	—	—	—
05B-26Z	26	69.7	66.37	40	10	16	50	12	22	—	—	—
05B-27Z	27	72.3	68.91	40	10	16	50	12	22	—	—	—
05B-28Z	28	74.7	71.45	40	10	16	50	12	22	—	—	—
05B-29Z	29	77.2	73.99	40	10	16	50	12	22	—	—	—
05B-30Z	30	80.2	76.53	40	10	16	50	12	22	—	—	—
05B-31Z	31	82.7	79.08	40	12	16	60	12	22	—	—	—
05B-32Z	32	85.2	81.61	40	12	16	60	12	22	—	—	—
05B-33Z	33	87.7	84.16	40	12	16	60	12	22	—	—	—
05B-34Z	34	90.2	86.7	40	12	16	60	12	22	—	—	—
05B-35Z	35	92.7	89.24	40	12	16	60	12	22	—	—	—
05B-36Z	36	95.2	91.79	40	12	16	60	12	22	—	—	—
05B-37Z	37	97.7	94.33	40	12	16	60	12	22	—	—	—
05B-38Z	38	100.2	96.88	40	12	16	60	12	22	—	—	—
05B-39Z	39	102.7	99.42	40	12	16	60	12	22	—	—	—
05B-40Z	40	105.2	101.97	40	12	16	60	12	22	—	—	—
05B-45Z	45	118.6	114.69	60	12	20	60	12	22	—	—	—
05B-50Z	50	131.5	127.41	60	12	20	60	12	22	—	—	—
05B-57Z	57	149.3	145.22	80	14	20	60	12	22	—	—	—

Hub sprocket selector — 06B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
06B-8Z	8	28.6	24.89	15	8	20	15	8	25	15	8	32
06B-9Z	9	31.5	27.85	18	8	20	18	8	25	18	8	32
06B-10Z	10	34.5	30.82	20	8	20	20	8	25	20	10	32
06B-11Z	11	37.5	33.8	22	8	25	22	10	30	22	12	35
06B-12Z	12	40.5	36.8	25	8	25	25	10	30	25	12	35
06B-13Z	13	43.5	39.8	28	8	25	28	10	30	28	12	35
06B-14Z	14	46.5	42.8	31	8	25	31	10	30	31	12	35
06B-15Z	15	49.5	45.81	34	8	25	34	10	30	34	12	35
06B-16Z	16	52.5	48.82	37	10	28	37	12	30	37	12	35
06B-17Z	17	55.5	51.83	40	10	28	40	12	30	40	12	35
06B-18Z	18	58.6	54.85	43	10	28	43	12	30	43	12	35
06B-19Z	19	61.6	57.87	45	10	28	46	12	30	46	12	35
06B-20Z	20	64.6	60.89	46	10	28	49	12	30	49	12	35
06B-21Z	21	67.6	63.91	48	12	28	52	16	30	52	16	40
06B-22Z	22	70.6	66.93	50	12	28	55	16	30	55	16	40
06B-23Z	23	73.7	69.95	52	12	28	58	16	30	58	16	40
06B-24Z	24	76.7	72.97	54	12	28	61	16	30	61	16	40
06B-25Z	25	79.7	76	57	12	28	64	16	30	64	16	40
06B-26Z	26	82.7	79.02	60	12	28	67	16	30	67	16	40
06B-27Z	27	85.7	82.04	60	12	28	70	16	30	70	16	40
06B-28Z	28	88.8	85.07	60	12	28	73	16	30	73	16	40
06B-29Z	29	91.8	88.09	60	12	28	76	16	30	76	16	40
06B-30Z	30	94.8	91.12	60	12	28	79	16	30	79	16	40
06B-31Z	31	97.9	94.15	65	14	30	80	16	30	80	16	40
06B-32Z	32	100.9	97.17	65	14	30	80	16	30	80	16	40
06B-33Z	33	103.9	100.2	65	14	30	80	16	30	80	16	40
06B-34Z	34	106.9	103.23	65	14	30	80	16	30	85	16	40
06B-35Z	35	110	106.26	65	14	30	80	16	30	85	16	40
06B-36Z	36	113	109.29	70	16	30	90	16	30	90	16	40
06B-37Z	37	116	112.32	70	16	30	90	16	30	90	16	40
06B-38Z	38	119	115.34	70	16	30	90	16	30	90	16	40
06B-39Z	39	122.1	118.37	70	16	30	90	16	30	90	16	40
06B-40Z	40	125.1	121.4	70	16	30	90	16	30	90	16	40

Hub sprocket selector — 081 (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
081-8Z	8	39.5	33.18	21	8	14	31	16	45	31	16	65
081-9Z	9	43.4	37.13	25	8	14	37	16	45	37	16	65
081-10Z	10	47.4	41.1	28	8	14	42	16	45	42	16	65
081-11Z	11	51.4	45.07	31	8	16	47	16	50	47	20	70
081-12Z	12	55.4	49.07	35	8	16	53	16	50	53	20	70
081-13Z	13	59.4	53.06	39	8	16	59	16	50	59	20	70
081-14Z	14	63.4	57.07	43	8	16	65	20	50	65	20	70
081-15Z	15	67.4	61.09	47	8	16	71	20	50	71	20	70
081-16Z	16	71.4	65.1	50	10	18	77	20	50	77	20	70
081-17Z	17	75.4	69.11	50	10	18	83	20	50	83	20	70
081-18Z	18	79.4	73.14	50	10	18	89	20	50	89	20	70
081-19Z	19	83.5	77.16	50	10	18	95	20	50	95	20	70
081-20Z	20	87.5	81.19	50	10	18	100	20	50	100	20	70
081-21Z	21	91.5	85.22	60	12	20	100	20	50	100	25	70
081-22Z	22	95.5	89.24	60	12	20	100	20	50	100	25	70
081-23Z	23	99.6	93.27	60	12	20	110	20	50	110	25	70
081-24Z	24	103.6	97.29	60	12	20	110	20	50	110	25	70
081-25Z	25	107.6	101.33	60	12	20	120	20	50	120	25	70
081-26Z	26	111.7	105.36	70	16	20	120	20	50	120	25	70
081-27Z	27	115.7	109.4	70	16	20	120	20	50	120	25	70
081-28Z	28	119.7	113.42	70	16	20	120	20	50	120	25	70
081-29Z	29	123.8	117.46	70	16	20	120	20	50	120	25	70
081-30Z	30	127.8	121.5	70	16	20	120	20	50	120	25	70
081-31Z	31	131.8	125.54	70	16	20	120	20	50	130	25	70
081-32Z	32	135.9	129.56	70	16	20	120	20	50	130	25	70
081-33Z	33	139.9	133.6	70	16	20	120	20	50	130	25	70
081-34Z	34	143.9	137.64	70	16	20	120	20	50	130	25	70
081-35Z	35	148	141.68	70	16	20	120	20	50	130	25	70
081-36Z	36	152	145.72	70	16	25	120	25	50	130	25	70
081-37Z	37	156.1	149.76	70	16	25	120	25	50	130	25	70
081-38Z	38	160.1	153.8	70	16	25	120	25	50	130	25	70
081-39Z	39	164.1	157.83	70	16	25	120	25	50	130	25	70
081-40Z	40	168.2	161.87	70	16	25	120	25	50	130	25	70

Hub sprocket selector — 083 (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
083-8Z	8	39.5	33.18	21	8	14	42	20	65	42	20	95
083-9Z	9	43.4	37.13	25	8	14	50	20	65	50	20	95
083-10Z	10	47.4	41.1	28	8	14	56	20	65	56	20	95
083-11Z	11	51.4	45.07	31	8	16	64	20	70	64	25	100
083-12Z	12	55.4	49.07	35	8	16	72	20	70	72	25	100
083-13Z	13	59.4	53.06	39	8	16	80	20	70	80	25	100
083-14Z	14	63.4	57.07	43	8	16	88	20	70	88	25	100
083-15Z	15	67.4	61.09	47	8	16	96	20	70	96	25	100
083-16Z	16	71.4	65.1	50	10	18	104	25	70	104	25	100
083-17Z	17	75.4	69.11	50	10	18	112	25	70	112	25	100
083-18Z	18	79.4	73.14	50	10	18	120	25	70	120	25	100
083-19Z	19	83.5	77.16	50	10	18	128	25	70	128	25	100
083-20Z	20	87.5	81.19	50	10	18	130	25	70	130	25	100
083-21Z	21	91.5	85.22	60	12	20	130	25	70	130	25	100
083-22Z	22	95.5	89.24	60	12	20	130	25	70	130	25	100
083-23Z	23	99.6	93.27	60	12	20	130	25	70	130	25	100
083-24Z	24	103.6	97.29	60	12	20	130	25	70	130	25	100
083-25Z	25	107.6	101.33	60	12	20	130	25	70	130	25	100
083-26Z	26	111.7	105.36	70	12	20	130	25	70	130	30	100
083-27Z	27	115.7	109.4	70	12	20	130	25	70	130	30	100
083-28Z	28	119.7	113.42	70	12	20	130	25	70	130	30	100
083-29Z	29	123.8	117.46	70	12	20	130	25	70	130	30	100
083-30Z	30	127.8	121.5	70	12	20	130	25	70	130	30	100
083-31Z	31	131.8	125.54	70	14	20	140	25	70	130	30	100
083-32Z	32	135.9	129.56	70	14	20	140	25	70	130	30	100
083-33Z	33	139.9	133.6	70	14	20	140	25	70	140	30	100
083-34Z	34	143.9	137.64	70	14	20	140	25	70	140	30	100
083-35Z	35	148	141.68	70	14	20	140	25	70	140	30	100
083-36Z	36	152	145.72	70	16	25	140	25	70	140	30	100
083-37Z	37	156.1	149.76	70	16	25	140	25	70	140	30	100
083-38Z	38	160.1	153.8	70	16	25	140	25	70	140	30	100
083-39Z	39	164.1	157.83	70	16	25	140	25	70	140	30	100
083-40Z	40	168.2	161.87	70	16	25	140	25	70	140	30	100

Hub sprocket selector — 08B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
08B-8Z	8	38	33.18	20	10	25	20	10	32	20	10	46
08B-9Z	9	42	37.13	24	10	25	24	10	32	24	12	46
08B-10Z	10	45.9	41.1	26	10	25	28	10	32	28	12	46
08B-11Z	11	49.9	45.07	29	10	25	32	12	35	32	16	50
08B-12Z	12	53.9	49.07	33	10	28	35	12	35	35	16	50
08B-13Z	13	57.9	53.06	37	10	28	38	12	35	38	16	50
08B-14Z	14	61.9	57.07	41	10	28	42	12	35	42	16	50
08B-15Z	15	65.9	61.09	45	10	28	46	12	35	46	16	50
08B-16Z	16	69.9	65.1	50	12	28	50	16	38	50	16	50
08B-17Z	17	74	69.11	52	12	28	54	16	38	54	16	50
08B-18Z	18	78	73.14	56	12	28	58	16	38	58	16	50
08B-19Z	19	82	77.16	60	12	28	62	16	38	62	16	50
08B-20Z	20	86	81.19	64	12	28	66	16	38	66	16	50
08B-21Z	21	90.1	85.22	68	14	28	70	16	40	70	16	55
08B-22Z	22	94.1	89.24	70	14	28	70	16	40	70	16	55
08B-23Z	23	98.1	93.27	70	14	28	70	16	40	70	16	55
08B-24Z	24	102.1	97.29	70	14	28	75	16	40	75	16	55
08B-25Z	25	106.2	101.33	70	14	28	80	16	40	80	16	55
08B-26Z	26	110.2	105.36	70	16	30	85	16	40	85	20	55
08B-27Z	27	114.2	109.4	70	16	30	85	16	40	85	20	55
08B-28Z	28	118.3	113.42	70	16	30	90	16	40	90	20	55
08B-29Z	29	122.3	117.46	80	16	30	95	16	40	95	20	55
08B-30Z	30	126.3	121.5	80	16	30	100	16	40	100	20	55
08B-31Z	31	103.4	125.54	90	16	30	100	20	40	110	20	55
08B-32Z	32	134.4	129.56	90	16	30	100	20	40	110	20	55
08B-33Z	33	138.4	133.6	90	16	30	100	20	40	110	20	55
08B-34Z	34	142.5	137.64	90	16	30	100	20	40	110	20	55
08B-35Z	35	146.5	141.68	90	16	30	100	20	40	110	20	55
08B-36Z	36	150.6	145.72	90	16	35	100	20	40	120	25	55
08B-37Z	37	154.6	149.76	90	16	35	100	20	40	120	25	55
08B-38Z	38	158.6	153.8	90	16	35	100	20	40	120	25	55
08B-39Z	39	162.7	157.83	90	16	35	100	20	40	120	25	55
08B-40Z	40	166.7	161.87	90	16	35	100	20	40	120	25	55

Hub sprocket selector — 10B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
10B-8Z	8	48.4	41.48	25	10	25	25	12	40	25	12	55
10B-9Z	9	53.3	46.42	30	10	25	30	12	40	30	12	55
10B-10Z	10	58.3	51.37	35	10	25	35	12	40	35	16	55
10B-11Z	11	63.2	56.34	37	12	30	39	16	40	39	16	55
10B-12Z	12	68.2	61.34	42	12	30	44	16	40	44	16	55
10B-13Z	13	73.2	66.32	47	12	30	49	16	40	49	16	55
10B-14Z	14	78.2	71.34	52	12	30	54	16	40	54	16	55
10B-15Z	15	83.2	76.36	57	12	30	59	16	40	59	16	55
10B-16Z	16	88.3	81.37	60	12	30	64	16	45	64	16	60
10B-17Z	17	93.3	86.39	60	12	30	69	16	45	69	16	60
10B-18Z	18	98.3	91.42	70	14	30	74	16	45	74	16	60
10B-19Z	19	103.3	96.45	70	14	30	79	16	45	79	16	60
10B-20Z	20	108.4	101.49	75	14	30	84	16	45	84	16	60
10B-21Z	21	113.4	106.52	75	16	30	85	20	45	85	16	60
10B-22Z	22	118.4	111.55	80	16	30	90	20	45	90	16	60
10B-23Z	23	123.5	116.58	80	16	30	95	20	45	95	16	60
10B-24Z	24	128.5	121.62	80	16	30	100	20	45	100	16	60
10B-25Z	25	133.6	126.66	80	16	30	105	20	45	105	16	60
10B-26Z	26	138.6	131.7	85	20	35	110	20	45	110	20	60
10B-27Z	27	143.6	136.75	85	20	35	110	20	45	110	20	60
10B-28Z	28	148.7	141.78	90	20	35	115	20	45	115	20	60
10B-29Z	29	153.7	146.83	90	20	35	115	20	45	115	20	60
10B-30Z	30	158.8	151.87	90	20	35	120	20	45	120	20	60
10B-31Z	31	163.8	156.92	95	20	35	120	20	45	120	20	60
10B-32Z	32	168.9	161.95	95	20	35	120	20	45	120	20	60
10B-33Z	33	173.9	167	95	20	35	120	20	45	120	20	60
10B-34Z	34	178.9	172.05	95	20	35	120	20	45	120	20	60
10B-35Z	35	184	177.1	95	20	35	120	20	45	120	20	60
10B-36Z	36	189	182.15	100	20	35	120	20	45	120	25	60
10B-37Z	37	194.1	187.2	100	20	35	120	20	45	120	25	60
10B-38Z	38	199.1	192.24	100	20	35	120	20	45	120	25	60
10B-39Z	39	204.2	197.29	100	20	35	120	20	45	120	25	60
10B-40Z	40	209.2	202.34	100	20	35	120	20	45	120	25	60

Hub sprocket selector — 12B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
12B-8Z	8	58	49.78	31	12	30	31	16	45	31	16	65
12B-9Z	9	63.9	55.7	37	12	30	37	16	45	37	16	65
12B-10Z	10	69.8	61.64	42	12	30	42	16	45	42	16	65
12B-11Z	11	75.8	67.61	46	16	35	47	16	50	47	20	70
12B-12Z	12	81.8	73.6	52	16	35	53	16	50	53	20	70
12B-13Z	13	87.8	79.59	58	16	35	59	16	50	59	20	70
12B-14Z	14	93.8	85.6	64	16	35	65	20	50	65	20	70
12B-15Z	15	99.8	91.63	70	16	35	71	20	50	71	20	70
12B-16Z	16	105.8	97.65	75	16	35	77	20	50	77	20	70
12B-17Z	17	111.9	103.67	80	16	35	83	20	50	83	20	70
12B-18Z	18	117.9	109.71	80	16	35	89	20	50	89	20	70
12B-19Z	19	123.9	115.75	80	16	35	95	20	50	95	20	70
12B-20Z	20	130	121.78	80	16	35	100	20	50	100	20	70
12B-21Z	21	136	127.82	90	20	40	100	20	50	100	25	70
12B-22Z	22	142	133.86	90	20	40	100	20	50	100	25	70
12B-23Z	23	148.1	139.9	90	20	40	110	20	50	110	25	70
12B-24Z	24	154.1	145.94	90	20	40	110	20	50	110	25	70
12B-25Z	25	160.2	152	90	20	40	120	20	50	120	25	70
12B-26Z	26	166.2	158.04	95	20	40	120	20	50	120	25	70
12B-27Z	27	172.3	164.09	95	20	40	120	20	50	120	25	70
12B-28Z	28	178.3	170.13	95	20	40	120	20	50	120	25	70
12B-29Z	29	184.4	176.19	95	20	40	120	20	50	120	25	70
12B-30Z	30	190.4	182.25	95	20	40	120	20	50	120	25	70
12B-31Z	31	196.5	188.31	95	20	40	120	20	50	130	25	70
12B-32Z	32	202.5	194.35	95	20	40	120	20	50	130	25	70
12B-33Z	33	208.6	200.4	95	20	40	120	20	50	130	25	70
12B-34Z	34	214.6	206.46	95	20	40	120	20	50	130	25	70
12B-35Z	35	220.7	212.52	95	20	40	120	20	50	130	25	70
12B-36Z	36	226.8	218.58	100	25	40	120	25	50	130	25	70
12B-37Z	37	232.8	224.64	100	25	40	120	25	50	130	25	70
12B-38Z	38	238.9	230.69	100	25	40	120	25	50	130	25	70
12B-39Z	39	244.9	236.75	100	25	40	120	25	50	130	25	70
12B-40Z	40	251	242.81	100	25	40	120	25	50	130	25	70

Hub sprocket selector — 16B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
16B-8Z	8	77.9	66.37	42	16	35	42	20	65	42	20	95
16B-9Z	9	85.8	74.27	50	16	35	50	20	65	50	20	95
16B-10Z	10	93.8	82.19	55	16	35	56	20	65	56	20	95
16B-11Z	11	101.7	90.14	61	16	40	64	20	70	64	25	100
16B-12Z	12	109.7	98.14	69	16	40	72	20	70	72	25	100
16B-13Z	13	117.7	106.12	78	16	40	80	20	70	80	25	100
16B-14Z	14	125.7	114.15	84	16	40	88	20	70	88	25	100
16B-15Z	15	133.7	122.17	92	16	40	96	20	70	96	25	100
16B-16Z	16	141.8	130.2	100	20	45	104	25	70	104	25	100
16B-17Z	17	149.8	138.22	100	20	45	112	25	70	112	25	100
16B-18Z	18	157.8	146.28	100	20	45	120	25	70	120	25	100
16B-19Z	19	165.9	154.38	100	20	45	128	25	70	128	25	100
16B-20Z	20	173.9	162.38	100	20	45	130	25	70	130	25	100
16B-21Z	21	182	170.43	110	20	50	130	25	70	130	25	100
16B-22Z	22	190.1	178.48	110	20	50	130	25	70	130	25	100
16B-23Z	23	198.1	186.53	110	20	50	130	25	70	130	25	100
16B-24Z	24	206.2	194.59	110	20	50	130	25	70	130	25	100
16B-25Z	25	214.2	202.66	110	20	50	130	25	70	130	25	100
16B-26Z	26	222.3	210.72	120	20	50	130	25	70	130	30	100
16B-27Z	27	230.4	218.79	120	20	50	130	25	70	130	30	100
16B-28Z	28	238.4	226.85	120	20	50	130	25	70	130	30	100
16B-29Z	29	246.5	234.92	120	20	50	130	25	70	130	30	100
16B-30Z	30	254.6	243	120	20	50	130	25	70	130	30	100
16B-31Z	31	262.6	251.08	120	25	50	140	25	70	140	30	100
16B-32Z	32	270.7	259.13	120	25	50	140	25	70	140	30	100
16B-33Z	33	278.8	267.21	120	25	50	140	25	70	140	30	100
16B-34Z	34	286.9	275.28	120	25	50	140	25	70	140	30	100
16B-35Z	35	294.9	283.36	120	25	50	140	25	70	140	30	100
16B-36Z	36	303	291.44	120	25	50	140	25	70	140	30	100
16B-37Z	37	311.1	299.51	120	25	50	140	25	70	140	30	100
16B-38Z	38	319.2	307.59	120	25	50	140	25	70	140	30	100
16B-39Z	39	327.2	315.67	120	25	50	140	25	70	140	30	100
16B-40Z	40	335.3	323.73	120	25	50	140	25	70	140	30	100

Hub sprocket selector — 20B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
20B-8Z	8	96	82.96	53	20	40	53	20	75	53	25	110
20B-9Z	9	106.5	92.84	63	20	40	63	20	75	63	25	110
20B-10Z	10	117	102.74	70	20	40	70	20	75	70	25	110
20B-11Z	11	127	112.68	77	20	45	80	25	80	80	30	115
20B-12Z	12	137	122.68	88	20	45	90	25	80	90	30	115
20B-13Z	13	147.5	132.65	98	20	45	100	25	80	100	30	115
20B-14Z	14	157.6	142.68	108	20	45	110	25	80	110	30	115
20B-15Z	15	167.7	152.72	118	20	45	120	25	80	120	30	115
20B-16Z	16	177.7	162.75	120	25	50	120	25	80	120	30	115
20B-17Z	17	187.8	172.78	120	25	50	120	30	80	120	30	115
20B-18Z	18	197.8	182.85	120	25	50	120	30	80	120	30	115
20B-19Z	19	207.9	192.91	120	25	50	120	30	80	120	30	115
20B-20Z	20	217.9	202.98	120	25	50	120	30	80	140	30	115
20B-21Z	21	228	213.04	140	30	55	140	30	80	140	30	115
20B-22Z	22	238.1	223.11	140	30	55	140	30	80	140	30	115
20B-23Z	23	248.2	233.17	140	30	55	140	30	80	140	30	115
20B-24Z	24	258.3	243.23	140	30	55	140	30	80	140	30	115
20B-25Z	25	268.4	253.33	140	30	55	140	30	80	150	30	115
20B-26Z	26	278.4	263.4	150	30	55	150	30	80	150	30	115
20B-27Z	27	288.5	273.48	150	30	55	150	30	80	150	30	115
20B-28Z	28	298.5	283.56	150	30	55	150	30	80	150	30	115
20B-29Z	29	308.6	293.65	150	30	55	150	30	80	150	30	115
20B-30Z	30	318.7	303.75	150	30	55	150	30	80	150	30	115
20B-31Z	31	328.8	313.85	150	30	55	150	30	80	150	30	115
20B-32Z	32	338.9	323.91	150	30	55	150	30	80	150	30	115
20B-33Z	33	349	334.01	150	30	55	150	30	80	150	30	115
20B-34Z	34	359.1	344.1	150	30	55	150	30	80	150	30	115
20B-35Z	35	369.2	354.2	150	30	55	150	30	80	150	30	115
20B-36Z	36	379.2	364.3	150	30	55	150	30	80	150	30	115
20B-37Z	37	389.3	374.39	150	30	55	150	30	80	150	30	115
20B-38Z	38	399.4	384.49	150	30	55	150	30	80	150	30	115
20B-39Z	39	409.5	394.59	150	30	55	150	30	80	150	30	115
20B-40Z	40	419.6	404.66	150	30	55	150	30	80	150	30	115

Hub sprocket selector — 24B (33)
Model Code	Teeth z	de	dp	dm¹	D1	A¹	dm²	D2	A²	dm³	D3	A³
24B-8Z	8	113	99.55	58	20	45	58	25	95	58	25	140
24B-9Z	9	125	111.4	70	20	45	70	25	95	70	25	140
24B-10Z	10	137	123.49	80	20	45	80	25	95	80	25	140
24B-11Z	11	149	135.21	90	25	50	90	25	100	90	30	150
24B-12Z	12	161	147.22	102	25	50	102	25	100	102	30	150
24B-13Z	13	173	159.18	114	25	50	114	25	100	114	30	150
24B-14Z	14	185	171.22	128	25	50	128	25	100	128	30	150
24B-15Z	15	197	183.26	132	25	50	132	25	100	132	30	150
24B-16Z	16	209	195.3	136	25	55	136	30	100	136	30	150
24B-17Z	17	221	207.34	136	25	55	136	30	100	136	30	150
24B-18Z	18	233	219.42	136	25	55	160	30	100	160	30	150
24B-19Z	19	245.5	231.49	136	25	55	160	30	100	160	30	150
24B-20Z	20	257.5	243.57	136	25	55	160	30	100	160	30	150
24B-21Z	21	270.5	255.65	150	30	60	160	30	100	160	40	150
24B-22Z	22	282.5	267.73	150	30	60	160	30	100	160	40	150
24B-23Z	23	294.5	279.8	150	30	60	160	30	100	160	40	150
24B-24Z	24	307	291.88	150	30	60	160	30	100	160	40	150
24B-25Z	25	319	304	150	30	60	160	30	100	160	40	150
24B-26Z	26	331	316.08	150	30	60	160	30	100	160	40	150
24B-27Z	27	343	328.19	150	30	60	160	30	100	160	40	150
24B-28Z	28	355	340.27	150	30	60	160	30	100	160	40	150
24B-29Z	29	367.5	352.38	150	30	60	160	30	100	160	40	150
24B-30Z	30	379.5	364.5	150	30	60	160	30	100	160	40	150
24B-31Z	31	391.5	376.62	150	30	60	160	40	100	160	40	150
24B-32Z	32	403.5	388.69	150	30	60	160	40	100	160	40	150
24B-33Z	33	415.5	400.81	150	30	60	160	40	100	160	40	150
24B-34Z	34	428	412.93	150	30	60	160	40	100	160	40	150
24B-35Z	35	440	425.04	150	30	60	160	40	100	160	40	150
24B-36Z	36	452	437.16	150	30	60	160	40	100	160	40	150
24B-37Z	37	464	449.27	150	30	60	160	40	100	160	40	150
24B-38Z	38	476.5	461.39	150	30	60	160	40	100	160	40	150
24B-39Z	39	488.5	473.5	150	30	60	160	40	100	160	40	150
24B-40Z	40	501.5	485.62	150	30	60	160	40	100	160	40	150

Static copy of the selector data for reference and printing; use the interactive selector above to filter, sort and request a quote. All dimensions in mm; full range and tolerances per the PDF catalogue.

Click a column header to sort. Superscripts ¹ ² ³ = single / double / triple strand. Dimensions in mm. Source: Wolfer sprocket catalogue. Download PDF catalogue ↗

Rotary motion

Synchronous drive parts

Linear motion parts

Shaft connection & protection

Verticals we serve

ENGINEERED SOLUTIONS · VERIFIED APPLICATIONS

Bevel gears at −56% vs. Japanese OEM

About

Capabilities

Quality

Guangzhou HQ + Foshan plant

Knowledge Hub

News & media

Support

ISO 1328 Class 5 vs. AGMA Q12

Hub Sprockets

Hub sprocket selector

Common questions about this series

Hub Sprockets: what size range does the table cover?

Hub Sprockets: what is it and when should I use it?

Hub Sprockets: can I order a size that is not in the table, or just one piece?

Hub Sprockets: what do I need to send to get a quote?
