Disc / Diaphragm Couplings: what size range does the table cover?

This page covers 12 series (TM1, TM2, TM3, TM4, DJM, DJM-T, SJM, ZDJM/ZSJM, DJM-Y-P/SJM-Y-P, DSJM, WDJM, WSJM) with 155 catalogue sizes: bores from Ø3 to Ø760 mm, rated torque 1.4–8 100 000 N·m. Finished bores, keyways and clamp variants are machined to your shaft; sizes outside the tables are made to drawing.

Disc / Diaphragm Couplings: what is it and when should I use it?

Metal disc packs (single / double) transmit torque: lubrication-free, maintenance-free, zero backlash, high-temperature tolerant; compensates angular / axial misalignment. TM is the miniature series, DJM / SJM the keyed single / double series; ZDJM, locking-disc and external-bushing series in the PDF. Disc couplings are the choice for zero-backlash, maintenance-free, high-stiffness drives — servo axes, spindles, encoders and high-temperature locations where elastomers cannot be used. A single disc pack takes angular and axial misalignment; use the double-disc versions when there is also radial offset.

Disc / Diaphragm Couplings: can I order a size that is not in the table, or just one piece?

Yes. Everything on this page is made to drawing, and the table is only the standard-size subset of the catalogue. Minimum order quantity is one piece — we routinely make single replacement parts for OEMs whose original supplier has discontinued the item. Send a DWG, STEP or PDF drawing (or a sample part): you get a formal quotation within 24 hours after the information is complete, and the first article ships within 30 days of drawing approval, with inspection records.

Disc / Diaphragm Couplings: what do I need to send to get a quote?

Send: shaft diameters and lengths on both sides (with keyways or clamp preference), rated and peak torque, speed, the misalignment you expect (angular, radial, axial), space available (outside diameter and overall length), operating temperature and whether the drive is servo/positioning or general. A drawing or STEP of the two shaft ends is ideal; a sketch with these values is enough for a first quote.

TM / DJM / SJM Disc Couplings

Coupling Selector · Specifications

TM / DJM / SJM Disc Couplings selector

Choose a series by its drawing, then view dimensions and performance separately. Search, use the declared filters, or sort by any column.

Choose a series by drawing

Select a drawing to load its matching data

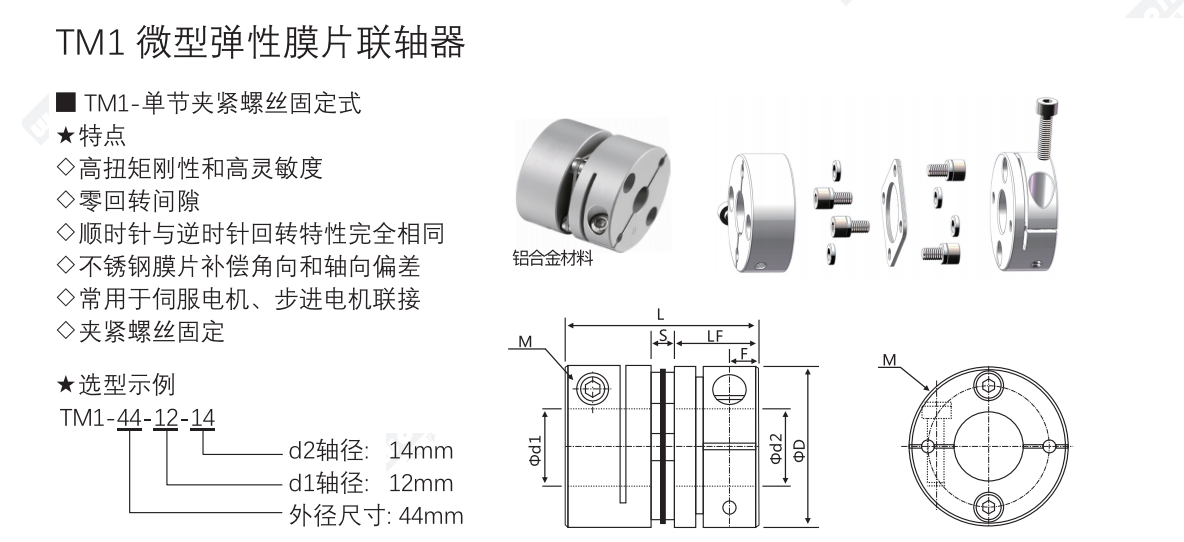

TM1 Series dimensional drawing — TM1 Series · Engineering drawing · PDF page 1

Parameter category

Data table

Model search

Complete size table · 310 sizes (static version for printing and full-text search)

TM1 Series · TM1 Dimensions
Model	Minimum bore dmin · mm	Maximum bore dmax · mm	Outside diameter D · mm	Overall length L · mm	S dimension S · mm	LF dimension LF · mm	Set screw M	Tightening torque N·m
TM1-26	5	10	26	25.5	2.5	11.5	M3	1.5
TM1-34	8	14	34	31.3	3.1	14.1	M4	1.5
TM1-39	10	16	39	34.1	4.1	15	M4	2.5
TM1-44	11	19	44	34.5	4.5	15	M4	2.5
TM1-56	14	24	56	45	5	20	M5	7
TM1-68	19	35	68	54	6	24	M6	12
TM1-82	24	40	82	68	8	30	M8	16

TM1 Series · TM1 performance data
Model	Rated torque N·m	Maximum torque N·m	Maximum speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Angular deviation °	Axial deviation mm	Mass g
TM1-26	1.4	2.8	10000	1.8×10^-6	690	1	±0.2	24
TM1-34	2.8	5.6	10000	7.2×10^-6	1650	1	±0.2	46
TM1-39	5.8	11.6	10000	1.8×10^-5	2500	1	±0.2	78
TM1-44	8.7	17.4	10000	2.5×10^-5	2900	1	±0.2	96
TM1-56	25	50	10000	1.0×10^-4	8400	1	±0.2	206
TM1-68	55	110	10000	1.9×10^-4	11500	1	±0.2	366
TM1-82	80	160	10000	7.0×10^-4	14550	1	±0.2	710

TM2 Series · TM2 Dimensions
Model	Bore	C3 mm	Φ D mm	L mm	S mm	LF mm	LP mm	M	Tightening torque N·m
TM2-26	5	10	26	35	2.5	11.5	7	M3	1.5
TM2-34	8	14	34	45	3.1	14.1	10.6	M4	1.5
TM2-39	10	16	39	49	4.1	15	10.8	M4	2.5
TM2-44	11	19	44	50	4.5	15	11	M4	2.5
TM2-56	14	24	56	63	5	20	13	M5	7
TM2-68	19	35	68	74	6	24	14	M6	12
TM2-82	24	40	82	98	8	30	22	M8	16

TM2 Series · TM2 Performance
Model	Rated torque N·m	Maximum torque N·m	Permissible speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Radial misalignment mm	Angular misalignment °	Axial misalignment mm	Weight g
TM2-26	1.4	2.8	10000	3.3×10-6	950	0.04	1.5	±0.4	34
TM2-34	2.8	5.6	10000	8.9×10-6	1960	0.04	1.5	±0.4	70
TM2-39	5.8	11.6	10000	2.4×10-5	4500	0.04	1.5	±0.4	118
TM2-44	8.7	17.4	10000	3.2×10-5	5100	0.04	1.5	±0.4	142
TM2-56	25	50	10000	1.1×10-4	10500	0.04	1.5	±0.4	296
TM2-68	55	110	10000	2.8×10-4	18500	0.04	1.5	±0.4	544
TM2-82	80	160	10000	1.0×10-3	21800	0.04	1.5	±0.4	1020

TM3 Series · TM3 Dimensions
Model	Bore	C3 mm	Φ D mm	L mm	Φ N mm	S mm	LF mm	M	Tightening torque N·m
TM3-34	6	9	34	27	21.6	3	12	M3	1.5
TM3-44	10	14	44	34	29.6	4	15	M4	3.4
TM3-56	14	20	56	45	38	5	20	M5	7
TM3-68	15	25	68	54	46	6	24	M6	14
TM3-82	20	30	82	68	56	8	30	M8	25

TM3 Series · TM3 Performance
Model	Rated torque N·m	Maximum torque N·m	Permissible speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Angular misalignment °	Axial misalignment mm	Weight g
TM3-34	3.8	7.6	6000	3.8×10-6	1500	1	±0.15	38
TM3-44	9.7	19.4	6000	14.5×10-6	3000	1	±0.15	84
TM3-56	24	48	6000	48.5×10-6	4200	1	±0.15	132
TM3-68	40	80	6000	126×10-6	6500	1	±0.15	232
TM3-82	85	170	6000	565×10-6	8600	1	±0.15	420

TM4 Series · TM4 Dimensions
Model	Bore	C3 mm	Φ D mm	L mm	ΦN mm	S mm	LF mm	LP mm	M	Tightening torque N·m
TM4-34	6	9	34	37	21.6	3	12	7	M3	1.5
TM4-44	10	14	44	47	29.6	4	15	9	M4	3.4
TM4-56	14	20	56	63	38	5	20	11	M5	7
TM4-68	15	25	68	74	46	6	24	14	M6	14
TM4-82	20	30	82	98	56	8	30	22	M8	25

TM4 Series · TM4 Performance
Model	Rated torque N·m	Maximum torque N·m	Permissible speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Radial misalignment mm	Angular misalignment °	Axial misalignment mm	Weight g
TM4-34	3.8	7.6	6000	6.5×10-6	1300	0.02	2	±0.3	46
TM4-44	9.7	19.4	6000	25.4×10-6	2800	0.02	2	±0.3	98
TM4-56	24	48	6000	82.5×10-6	4000	0.02	2	±0.3	194
TM4-68	40	80	6000	225×10-6	6200	0.02	2	±0.3	376
TM4-82	85	170	6000	985×10-6	8300	0.02	2	±0.3	640

DJM keyed single-disc coupling · DJM principal dimensions
Model	Bore range d · mm	D D · mm	A A · mm	B B · mm	L L · mm	J J · mm
DJM-00	3-20	57	4.9	20	44.9	10
DJM-01	5-22	68	6.1	26	58.1	13
DJM-02	6-28	81	6.6	26	58.6	16
DJM-03	8-35	93	8.4	29	66.4	22
DJM-04	10-42	104	11.2	34	79.2	20
DJM-05	15-50	126	11.7	42	95.7	25
DJM-06	20-60	143	11.7	48	107.7	28
DJM-07	25-80	168	16.8	58	132.8	23
DJM-08	30-82	196	17	64	145	30
DJM-09	30-95	214	21.6	77	175.6	22
DJM-10	40-108	246	23	89	201	23
DJM-11	52-118	266	23	102	227	40
DJM-12	60-110	276	23	128	273.5	—
DJM-13	60-135	308	27	160	347	—
DJM-14	60-155	346	32	182	396	—
DJM-15	60-165	375	32	198	428	—
DJM-16	70-180	410	32	214	460	—
DJM-17	70-190	445	38	225	488	—
DJM-18	80-205	470	38	248	534	—
DJM-19	90-230	512	32	278	588	—
DJM-20	90-255	556	32.5	305	642.5	—
DJM-21	100-265	588	34	318	670	—
DJM-22	100-275	630	34.5	332	698.5	—
DJM-23	100-290	655	35.5	348	731.5	—

DJM keyed single-disc coupling · DJM performance data
Model	Nominal torque N·m	Allowable speed rpm	Mass kg	Rotational inertia kg·cm²	Allowable axial compensation mm	Allowable angular compensation
DJM-00	9.8	20000	0.14	1.74	±0.8	1°
DJM-01	33	20000	0.6	8	±0.8	1°
DJM-02	90	20000	1.1	24	±1.0	1°
DJM-03	173	18000	1.7	48	±1.2	1°
DJM-04	245	15000	2.5	80	±1.4	1°
DJM-05	420	13000	4.3	224	±1.6	0°45′
DJM-06	772	12000	6.9	440	±1.8	0°45′
DJM-07	1270	10000	11.3	1080	±2.0	0°45′
DJM-08	2080	10000	16.7	2080	±2.2	0°45′
DJM-09	3328	9000	22.7	3520	±2.4	0°45′
DJM-10	4900	8000	35.4	7200	±2.6	0°45′
DJM-11	6368	8000	52	12800	±2.8	0°45′
DJM-12	8900	6300	57.2	14400	±1.8	0°45′
DJM-13	15280	5000	77.3	22200	±2.0	0°30′
DJM-14	25410	4700	123	40800	±2.0	0°30′
DJM-15	37130	4300	156	64800	±2.0	0°30′
DJM-16	47120	3900	191	100200	±2.2	0°30′
DJM-17	57000	3500	245	150000	±2.2	0°30′
DJM-18	63186	3500	329	186600	±2.4	0°30′
DJM-19	82590	3200	394	288000	±2.4	0°30′
DJM-20	102100	2800	530	448200	±2.5	0°30′
DJM-21	126070	2450	619	609600	±2.7	0°30′
DJM-22	146350	2150	683	831600	±2.8	0°30′
DJM-23	173830	2000	791	1070400	±3.0	0°30′

DJM-T locking-assembly single-disc coupling · DJM-T principal dimensions
Model	Bore range d · mm	D D · mm	L L · mm	A A · mm	B B · mm
DJM-01T	8-22	68	90	6.1	26
DJM-02T	10-32	82	95	6.6	26
DJM-03T	10-35	93	110	8.4	29
DJM-04T	10-42	104	124	11.2	34
DJM-05T	15-50	126	152	11.7	42
DJM-06T	15-60	143	160	11.7	48
DJM-07T	20-70	168	200	16.8	58

DJM-T locking-assembly single-disc coupling · DJM-T performance data
Model	Mass kg	Allowable speed rpm	Nominal torque N·m	Allowable angular compensation °	Allowable axial compensation mm
DJM-01T	0.85	20000	33	1°	±0.8
DJM-02T	1.2	20000	90	1°	±1.0
DJM-03T	1.7	18000	173	1°	±1.2
DJM-04T	2.7	15000	245	1°	±1.4
DJM-05T	6.5	13000	420	1°	±1.6
DJM-06T	8.9	12000	772	1°	±1.8
DJM-07T	15.8	10000	1270	1°	±2.5

SJM keyed double-disc coupling · SJM principal dimensions
Model	Bore range d · mm	D D · mm	A A · mm	B B · mm	L L · mm	C C · mm
SJM-00	3-20	57	4.9	20	100	60
SJM-01	5-22	68	6.1	26	141	89
SJM-02	6-32	81	6.6	26	141	89
SJM-03	8-35	93	8.4	29	160	102
SJM-04	10-42	104	11.2	34	195	127
SJM-05	15-50	126	11.7	42	211	127
SJM-06	20-60	143	11.7	48	223	127
SJM-07	25-75	168	16.8	58	243	127
SJM-08	30-82	196	17	64	268	140
SJM-09	30-95	214	21.6	77	306	152
SJM-10	40-108	246	23	89	356	178
SJM-11	52-118	266	23	102	382	178
SJM-12	60-110	276	23	128	409	153
SJM-13	60-135	308	27	160	492	172
SJM-14	60-155	346	32	182	554	190
SJM-15	60-165	375	32	198	620	224
SJM-16	70-180	410	32	214	682	254
SJM-17	70-190	445	38	225	720	270
SJM-18	80-205	470	38	248	770	274
SJM-19	90-230	512	32	278	843	287
SJM-20	90-255	556	32.5	305	902	292
SJM-21	100-265	588	34	318	948	312
SJM-22	100-275	630	34.5	332	1008	344
SJM-23	100-290	655	35.5	348	1052	356

SJM keyed double-disc coupling · SJM performance data
Model	Nominal torque N·m	Allowable speed rpm	Mass kg	Rotational inertia kg·cm²	Allowable axial compensation mm	Allowable angular compensation	Allowable radial compensation mm
SJM-00	9.8	20000	0.23	3	±1.6	2°	0.5
SJM-01	33	20000	1.2	8	±1.6	2°	0.5
SJM-02	90	20000	1.9	24	±1.6	2°	0.5
SJM-03	173	18000	2.9	48	±2.4	2°	0.6
SJM-04	245	15000	4.7	80	±2.8	2°	0.7
SJM-05	420	13000	7.1	224	±3.2	1°30′	0.7
SJM-06	772	12000	10.8	440	±3.6	1°30′	0.8
SJM-07	1270	10000	16.3	1080	±4.0	1°30′	0.8
SJM-08	2080	10000	24.7	2080	±4.4	1°30′	0.9
SJM-09	3328	9000	32.5	3520	±4.8	1°30′	0.9
SJM-10	4900	8000	50	7200	±5.2	1°30′	1
SJM-11	6368	6300	75	12800	±5.6	1°30′	1.2
SJM-12	8900	6300	72.2	18000	±3.6	1°	1.2
SJM-13	15280	5000	120	37000	±4.0	1°	1.2
SJM-14	25410	4700	175	68000	±4.0	1°	1.2
SJM-15	37130	4300	234	108000	±4.0	1°	1.3
SJM-16	47120	3900	306	167000	±4.4	1°	1.3
SJM-17	57000	3500	369	250000	±4.4	1°	1.4
SJM-18	63186	3500	448	311000	±4.8	1°	1.5
SJM-19	82590	3200	596	480000	±4.8	1°	1.6
SJM-20	102100	2800	763	747000	±5.2	1°	1.8
SJM-21	126070	2450	919	1016000	±5.4	1°	1.8
SJM-22	146350	2150	1068	1386000	±5.6	1°	2
SJM-23	173830	2000	1235	1784000	±6.0	1°	2

ZDJM/ZSJM taper-bush disc coupling · ZDJM/ZSJM principal dimensions
Model	Bore range d1,d2 · mm	D D · mm	L L · mm	L1 L1 · mm	C C · mm	A A · mm
ZDJM-01	8-22	68	64	25	—	6.1
ZSJM-01	8-22	68	147	25	89	6.1
ZDJM-02	10-30	82	73	29	—	6.6
ZSJM-02	10-30	82	155	29	89	6.6
ZDJM-03	10-30	93	81	32	—	8.4
ZSJM-03	10-30	93	174	32	102	8.4
ZDJM-04	10-38	104	96	37	—	11.2
ZSJM-04	10-38	104	212	37	127	11.2
ZDJM-05	15-50	126	97	37	—	11.7
ZSJM-05	15-50	126	212	37	127	11.7

ZDJM/ZSJM taper-bush disc coupling · ZDJM/ZSJM performance data
Model	Nominal torque N·m	Allowable speed rpm	Mass kg	Rotational inertia kg·cm²	Allowable axial compensation mm	Allowable angular compensation	Allowable radial compensation mm
ZDJM-01	33	10000	1.1	0.78×10^-3	±0.45	1°	0.04
ZSJM-01	33	10000	1.33	1.07×10^-3	±0.9	2°	0.3
ZDJM-02	90	15000	1.38	1.24×10^-3	±0.55	1°	0.04
ZSJM-02	90	15000	1.74	1.61×10^-3	±1.1	2°	0.3
ZDJM-03	173	15000	1.7	2.08×10^-3	±1.2	1°	0.04
ZSJM-03	173	15000	2.16	2.71×10^-3	±2.4	2°	0.3
ZDJM-04	245	15000	2.3	3.58×10^-3	±1.4	1°	0.04
ZSJM-04	245	15000	2.86	4.53×10^-3	±2.8	2°	0.3
ZDJM-05	420	15000	3.02	6.32×10^-3	±1.6	1°	0.04
ZSJM-05	420	15000	4.18	7.93×10^-3	±3.2	2°	0.3

DJM-Y-P/SJM-Y-P shrink-disc coupling · Shrink-disc coupling principal dimensions
Model	Bore range d1,d2 · mm	D D · mm	L L · mm	phi_max phi_max · mm	A A · mm	C C · mm
01	19-31	68	45	72	6.1	89
02	19-31	81	45	72	6.6	89
03	19-42	93	56	100	8.4	102
04	19-48	104	63	100	11.2	127
05	28-60	126	70	115	11.7	127
06	35-70	143	75	155	11.7	127
07	45-80	168	98	170	18	127
08	50-85	194	98	185	19.5	140
09	60-95	214	98	215	21.6	152
10	65-105	246	110	230	23.9	178
11	75-115	266	110	263	27.2	178
12	80-115	276	110	263	17.5	153
13	95-135	300	160	330	19	172
14	110-160	350	180	370	21.5	190
15	125-170	370	200	405	24	224
16	135-190	405	210	430	29.5	254
17	140-210	430	220	460	29.5	270
18	145-230	460	250	485	31	274
19	155-260	520	270	570	32	287
20	160-270	570	280	590	32.5	292
21	170-295	590	290	645	34	312
22	190-310	645	290	660	34.5	344
23	200-320	660	330	660	35.5	356
24	210-350	690	360	750	44	380
25	220-360	750	380	770	44	400
26	240-380	770	450	800	50	420
27	250-400	800	480	850	50	440
28	280-420	850	500	850	50	450
29	300-470	940	550	980	60	480
30	330-520	1020	570	1050	60	500
31	360-550	1070	570	1070	66	520
32	390-590	1180	590	1080	70	580
33	420-630	1250	650	1250	82	600
34	450-670	1370	680	1370	92	600
35	490-760	1480	680	1480	105	700
36	520-760	1520	700	1480	110	700
37	590-760	1550	700	1480	115	710
38	645-760	1580	700	1480	124	710
39	700-760	1600	700	1480	130	720
40	720-760	1650	700	1480	138	720

DJM-Y-P/SJM-Y-P shrink-disc coupling · Shrink-disc coupling performance data
Model	Nominal torque N·m	Allowable speed rpm
01	33	20000
02	90	20000
03	173	18000
04	245	15000
05	420	13000
06	772	12000
07	1270	10000
08	2080	10000
09	3328	9000
10	4900	8000
11	6368	6300
12	8900	6300
13	15280	5000
14	25410	4700
15	37130	4300
16	47120	3900
17	57000	3500
18	63186	3500
19	82590	3200
20	102100	2800
21	126070	2450
22	146350	2150
23	173830	2000
24	200000	1400
25	250000	1250
26	315000	1200
27	400000	1150
28	500000	1100
29	630000	1000
30	800000	930
31	1000000	880
32	1250000	820
33	1600000	740
34	2000000	680
35	2500000	620
36	3020000	570
37	4050000	520
38	5300000	480
39	6600000	430
40	8100000	400

DSJM Series · DSJM Dimensions
Model	Bore	Φ D mm	Φ D1 mm	L mm	L1 mm	L2 mm	W mm	M
DSJM-56	3-20	56	32	74	20	24	5	4-M5
DSJM-68	5-25	68	40	86	25	24	6	4-M6
DSJM-82	6-35	82	54	100	29	26	8	4-M6
DSJM-94	8-38	94	58	107	30	30	8.5	4-M8
DSJM-104	10-42	104	68	120	35	30	10	4-M8
DSJM-115	12-45	115	73	141	39.5	38	12	6-M10
DSJM-126	15-50	126	78	143	40	38	12.5	6-M10
DSJM-144	20-60	144	88	162	45	46	13	6-M12
DSJM-152	25-75	152	104	186	45	70	13	6-M12
DSJM-178	30-80	178	118	218	55	80	14	6-M12
DSJM-190	30-85	190	126	260	65	100	15	6-M12
DSJM-210	30-90	210	130	290	75	110	15	6-M16
DSJM-225	40-100	225	144	335	90	115	20	6-M16
DSJM-262	50-115	262	166	391	100	145	23	6-M20

DSJM Series · DSJM Performance
Model	Rated torque N·m	Maximum torque N·m	Permissible speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Radial misalignment mm	Angular misalignment mm	Axial misalignment mm	Weight g
DSJM-56	25	50	15000	0.19X10-3	7.5×103	0.04	1.5	±0.6	690
DSJM-68	55	110	14000	0.54X10-3	13×103	0.04	1.5	±0.6	1209
DSJM-82	80	160	11000	1.6X10-3	39×103	0.04	1.5	±0.6	1769
DSJM-94	170	340	9500	2.8X10-3	78×103	0.04	1.5	±0.6	3037
DSJM-104	240	480	8800	4.6X10-3	115×103	0.04	1.5	±0.6	4513
DSJM-115	330	660	8000	6.5X10-3	170×103	0.04	1.5	±0.6	4700
DSJM-136	420	840	6800	11.9X10-3	200×103	0.04	1.5	±0.8	7979
DSJM-144	700	1400	6000	18.2X10-3	350×103	0.04	1.5	±0.8	11893
DSJM-152	800	1600	5800	21.5X10-3	750×103	0.06	2	±0.8	13013
DSJM-178	1300	2600	5100	46.5X10-3	1420×103	0.06	2	±1.0	20440
DSJM-190	2000	4000	4700	76.3X10-3	1690×103	0.06	2	±1.0	29140
DSJM-210	3900	7600	4300	122X10-3	2340×103	0.06	2	±1.2	36016
DSJM-225	4900	9800	4000	175X10-3	2970×103	0.06	2	±1.2	50478
DSJM-262	7900	15800	3400	410X10-3	5390×103	0.06	2	±1.4	79043

WDJM external-locking single-disc coupling · WDJM principal dimensions
Model	Common bores mm	D D · mm	L L · mm	LF LF · mm	S S · mm	M1 locking screw	M2 removal screw
WDJM-56×65	12,12.7,14,15,16,17,18,19,20,22,24	56	65	24.5	6	M5	M5
WDJM-65×68.6	14,15,16,17,18,19,20,22,24,25,28,30,32,35	65	68.6	25.8	5.7	M6	M6
WDJM-87×77	16,17,18,19,20,22,24,25,30,32,35	87	77	28.3	8.5	M6	M6
WDJM-94×78	16,18,19,20,22,24,25,28,30,32,35,40,45,48	94	78	28.5	9.5	M6	M6
WDJM-104×80	20,25,28,30,32,35,38,40,45,48,50,55,60	104	80	26.8	10.5	M6	M6
WDJM-126×88	20,25,28,30,32,35,38,40,45,48,50,55,60,62,65	126	88	31.1	12	M8	M8

WDJM external-locking single-disc coupling · WDJM performance data
Model	Rated torque N·m	Allowable torque N·m	Allowable speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Allowable eccentricity mm	Allowable angle °	Axial deviation mm	Mass g
WDJM-56×65	9.8	19.6	10000	4.2×10^-5	4.1×10^4	0.02	0.5	±0.5	680
WDJM-65×68.6	33	66	7000	3.6×10^-4	7.5×10^4	0.02	0.5	±0.5	1000
WDJM-87×77	95	190	6000	1.2×10^-3	1.0×10^5	0.02	0.5	±0.5	1230
WDJM-94×78	173	346	4500	2.0×10^-3	2.3×10^5	0.02	0.5	±0.5	2000
WDJM-104×80	245	490	4500	2.95×10^-3	2.6×10^5	0.02	0.5	±0.5	2100
WDJM-126×88	420	840	4500	6.35×10^-3	7.4×10^5	0.02	0.5	±0.5	4150

WSJM Series · WSJM Dimensions
Model	d1,d2,	øD mm	L mm	LF mm	LP mm	S mm	M1	M2
WSJM-56×80	12,12.7,14,15,16,17,18,19,20,22,24,25	56	80	24.5	11	6	M5	M5
WSJM-65×90.8	14,15,16,17,18,19,20,22,24,25,28,30,32,35	65	90.8	25.8	15.8	5.7	M6	M6
WSJM-87×104	16,17,18,19,20,22,24,25,30,32,35	87	104	28.3	19	8.5	M6	M6
WSJM-94×108	16,18,19,20,22,24,25,28,30,32,35,40,45,48	94	108	28.5	20	9.5	M6	M6
WSJM-104×115	20,25,28,30,32,35,38,40,45,48,50,55,60	104	112	26.8	21	10.5	M6	M6
WSJM-126×125	20,25,28,30,32,35,38,40,45,48,50,55,60,62,65	126	125	32.1	23	12	M8	M8

WSJM Series · WSJM Performance
Model	Rated torque N·m	Permissible torque N·m	Permissible speed rpm	Moment of inertia kg·m²	Static torsional stiffness N·m/rad	Permissible radial misalignment mm	Permissible angular misalignment °	Axial misalignment mm	Weight g
WSJM-56×80	18	36	7700	6.1×10-5	2.7×104	0.02	0.6	±0.5	800
WSJM-65×90.8	60	120	7000	8.2×10-4	3.8×104	0.02	0.6	±0.5	1250
WSJM-87×104	180	360	6000	1.3×10-3	5.0×104	0.02	0.6	±0.5	1620
WSJM-94×108	270	540	4500	2.56×10-3	1.2×105	0.02	0.6	±0.5	2410
WSJM-104×115	420	840	4500	7.95×10-3	1.3×105	0.02	0.6	±0.5	2530
WSJM-126×125	675	1350	4500	1.67×10-2	2.7×105	0.02	0.6	±0.5	5320

Static copy of the selector data for reference and printing; use the interactive selector above to filter, sort and request a quote. All dimensions in mm; full range and tolerances per the PDF catalogue.

Dimensions and performance are shown separately. Sort by any column; consult the PDF catalogue for the full range, tolerances, and operating conditions. Download PDF catalogue ↗

Rotary motion

Synchronous drive parts

Linear motion parts

Shaft connection & protection

Verticals we serve

ENGINEERED SOLUTIONS · VERIFIED APPLICATIONS

Bevel gears at −56% vs. Japanese OEM

About

Capabilities

Quality

Guangzhou HQ + Foshan plant

Knowledge Hub

News & media

Support

ISO 1328 Class 5 vs. AGMA Q12

Disc / Diaphragm Couplings

TM / DJM / SJM Disc Couplings selector

Common questions about this series

Disc / Diaphragm Couplings: what size range does the table cover?

Disc / Diaphragm Couplings: what is it and when should I use it?

Disc / Diaphragm Couplings: can I order a size that is not in the table, or just one piece?

Disc / Diaphragm Couplings: what do I need to send to get a quote?
