Spur gear
Ground spur gears (module 1–6, 40Cr, JIS Grade 2) and milled spur gears (module 0.5–4, C45 steel, DIN 3967 8d25). 20° pressure angle, 601 standard sizes with online filtering — custom sizes to your drawing.
Last updated Reviewed by Luo Genwen, Production Plant Manager
FAQ
Common questions about this series
Spur gear: what size range does the table cover?
The table on this page lists 601 standard sizes in 2 series (Milled series · C45 steel, Ground series · 40Cr): module 0.5–6, 10–127 teeth, bores from Ø2 to Ø75 mm. Sizes outside this range are made to your drawing.
Spur gear: what is it and when should I use it?
Ground spur gears (module 1–6, 40Cr, JIS Grade 2) and milled spur gears (module 0.5–4, C45 steel, DIN 3967 8d25). 20° pressure angle, 601 standard sizes with online filtering — custom sizes to your drawing. Choose the milled C45 series (DIN 3967 8d25) for general-purpose, low- to medium-speed drives where cost matters, and the ground 40Cr series (JIS Grade 2, 45–55 HRC) when you need higher accuracy, quieter running or higher loads. Both are 20° pressure-angle spur gears with no axial thrust, so bearings can be simple.
Spur gear: can I order a size that is not in the table, or just one piece?
Yes. Everything on this page is made to drawing, and the table is only the standard-size subset of the catalogue. Minimum order quantity is one piece — we routinely make single replacement parts for OEMs whose original supplier has discontinued the item. Send a DWG, STEP or PDF drawing (or a sample part): you get a formal quotation within 24 hours after the information is complete, and the first article ships within 30 days of drawing approval, with inspection records.
Spur gear: what do I need to send to get a quote?
Send the drawing or these values: module (or DP), number of teeth, pressure angle, helix angle and hand (for helical), face width, bore with tolerance and keyway, hub dimensions, material and heat treatment, required accuracy class (ISO 1328 / DIN / AGMA / JIS) and quantity. A STEP file plus a 2D drawing with critical tolerances is ideal; a photo of the old part with basic measurements is enough for a first quote.
Specifications · Selector
Spur gear online selector
All 601 standard sizes from the product catalogue PDF. Filter by series, module, style, teeth or bore — or search by model code. All dimensions in mm.
–
–
Complete size table · 601 sizes (static version for printing and full-text search)

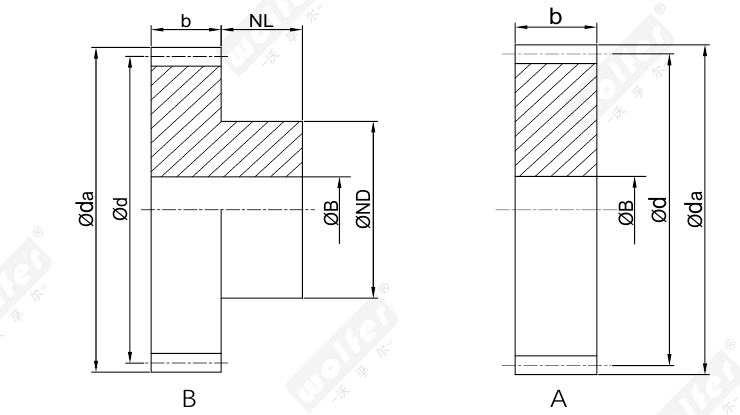

| Model Code | Module m | Fig. | Teeth z | Face b mm | Tip Ø da mm | Pitch Ø d mm | Hub len NL mm | Hub Ø ND mm | Bore B(H7) mm | Rated torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10-M0.5-4-2-B | 0.5 | B | 10 | 4 | 6 | 5 | 4 | 3.75 | 2 | 0.8 Ncm | 0.8 g |
| 12-M0.5-4-2-B | 0.5 | B | 12 | 4 | 7 | 6 | 4 | 4 | 2 | 1 Ncm | 1 g |
| 13-M0.5-4-2-B | 0.5 | B | 13 | 4 | 7.5 | 6.5 | 4 | 5 | 2 | 1.1 Ncm | 1 g |
| 14-M0.5-4-2-B | 0.5 | B | 14 | 4 | 8 | 7 | 4 | 5 | 2 | 1.2 Ncm | 2 g |
| 15-M0.5-4-3-B | 0.5 | B | 15 | 4 | 8.5 | 7.5 | 4 | 6 | 3 | 1.4 Ncm | 2 g |
| 16-M0.5-4-3-B | 0.5 | B | 16 | 4 | 9 | 8 | 4 | 6 | 3 | 1.5 Ncm | 2 g |
| 17-M0.5-4-3-B | 0.5 | B | 17 | 4 | 9.5 | 8.5 | 4 | 6 | 3 | 1.6 Ncm | 2 g |
| 18-M0.5-4-3-B | 0.5 | B | 18 | 4 | 10 | 9 | 4 | 6 | 3 | 1.7 Ncm | 2 g |
| 19-M0.5-4-3-B | 0.5 | B | 19 | 4 | 10.5 | 9.5 | 4 | 8 | 3 | 1.9 Ncm | 3 g |
| 20-M0.5-4-3-B | 0.5 | B | 20 | 4 | 11 | 10 | 4 | 8 | 3 | 2.2 Ncm | 3 g |
| 21-M0.5-4-3-B | 0.5 | B | 21 | 4 | 11.5 | 10.5 | 4 | 8 | 3 | 2.4 Ncm | 4 g |
| 22-M0.5-4-3-B | 0.5 | B | 22 | 4 | 12 | 11 | 4 | 8 | 3 | 2.7 Ncm | 4 g |
| 23-M0.5-4-3-B | 0.5 | B | 23 | 4 | 12.5 | 11.5 | 4 | 8 | 3 | 3 Ncm | 4 g |
| 24-M0.5-4-3-B | 0.5 | B | 24 | 4 | 13 | 12 | 4 | 8 | 3 | 3.3 Ncm | 4 g |
| 25-M0.5-4-4-B | 0.5 | B | 25 | 4 | 13.5 | 12.5 | 4 | 10 | 4 | 3.6 Ncm | 5 g |
| 26-M0.5-4-4-B | 0.5 | B | 26 | 4 | 14 | 13 | 4 | 10 | 4 | 4 Ncm | 5 g |
| 27-M0.5-4-4-B | 0.5 | B | 27 | 4 | 14.5 | 13.5 | 4 | 10 | 4 | 4.3 Ncm | 5 g |
| 28-M0.5-4-4-B | 0.5 | B | 28 | 4 | 15 | 14 | 4 | 10 | 4 | 4.7 Ncm | 6 g |
| 30-M0.5-4-4-B | 0.5 | B | 30 | 4 | 16 | 15 | 4 | 10 | 4 | 5.5 Ncm | 7 g |
| 32-M0.5-4-4-B | 0.5 | B | 32 | 4 | 17 | 16 | 4 | 12 | 4 | 6.3 Ncm | 9 g |
| 35-M0.5-4-4-B | 0.5 | B | 35 | 4 | 18.5 | 17.5 | 4 | 12 | 4 | 7.7 Ncm | 10 g |
| 36-M0.5-4-4-B | 0.5 | B | 36 | 4 | 19 | 18 | 4 | 12 | 4 | 8.2 Ncm | 10 g |
| 38-M0.5-4-4-B | 0.5 | B | 38 | 4 | 20 | 19 | 4 | 12 | 4 | 9.2 Ncm | 11 g |
| 40-M0.5-4-4-B | 0.5 | B | 40 | 4 | 21 | 20 | 4 | 12 | 4 | 10.3 Ncm | 12 g |
| 42-M0.5-4-5-B | 0.5 | B | 42 | 4 | 22 | 21 | 4 | 15 | 5 | 11.5 Ncm | 14 g |
| 45-M0.5-4-5-B | 0.5 | B | 45 | 4 | 23.5 | 22.5 | 4 | 15 | 5 | 13.4 Ncm | 16 g |
| 48-M0.5-4-5-B | 0.5 | B | 48 | 4 | 25 | 24 | 4 | 15 | 5 | 15.5 Ncm | 18 g |
| 50-M0.5-4-5-B | 0.5 | B | 50 | 4 | 26 | 25 | 4 | 15 | 5 | 17 Ncm | 19 g |
| 52-M0.5-4-5-B | 0.5 | B | 52 | 4 | 27 | 26 | 4 | 15 | 5 | 18.5 Ncm | 20 g |
| 54-M0.5-4-5-B | 0.5 | B | 54 | 4 | 28 | 27 | 4 | 15 | 5 | 20.2 Ncm | 22 g |
| 55-M0.5-4-5-B | 0.5 | B | 55 | 4 | 28.5 | 27.5 | 4 | 15 | 5 | 21 Ncm | 23 g |
| 56-M0.5-4-5-B | 0.5 | B | 56 | 4 | 29 | 28 | 4 | 15 | 5 | 21.9 Ncm | 23 g |
| 60-M0.5-4-5-B | 0.5 | B | 60 | 4 | 31 | 30 | 4 | 20 | 5 | 25.5 Ncm | 30 g |
| 64-M0.5-4-5-B | 0.5 | B | 64 | 4 | 33 | 32 | 4 | 20 | 5 | 29.4 Ncm | 33 g |
| 65-M0.5-4-5-B | 0.5 | B | 65 | 4 | 33.5 | 32.5 | 4 | 20 | 5 | 30.5 Ncm | 33 g |
| 70-M0.5-4-5-B | 0.5 | B | 70 | 4 | 36 | 35 | 4 | 20 | 5 | 36 Ncm | 39 g |
| 72-M0.5-4-5-B | 0.5 | B | 72 | 4 | 37 | 36 | 4 | 20 | 5 | 38.3 Ncm | 40 g |
| 75-M0.5-4-5-B | 0.5 | B | 75 | 4 | 38.5 | 37.5 | 4 | 20 | 5 | 42 Ncm | 42 g |
| 80-M0.5-4-5-B | 0.5 | B | 80 | 4 | 41 | 40 | 4 | 20 | 5 | 48.5 Ncm | 47 g |
| 85-M0.5-4-6-B | 0.5 | B | 85 | 4 | 43.5 | 42.5 | 4 | 25 | 6 | 55.6 Ncm | 57 g |
| 90-M0.5-4-6-B | 0.5 | B | 90 | 4 | 46 | 45 | 4 | 25 | 6 | 63.2 Ncm | 62 g |
| 96-M0.5-4-6-B | 0.5 | B | 96 | 4 | 49 | 48 | 4 | 25 | 6 | 73.2 Ncm | 69 g |
| 100-M0.5-4-6-B | 0.5 | B | 100 | 4 | 51 | 50 | 4 | 25 | 6 | 80.2 Ncm | 74 g |
| 114-M0.5-4-6-B | 0.5 | B | 114 | 4 | 58 | 57 | 4 | 25 | 6 | 108 Ncm | 94 g |
| 120-M0.5-4-6-B | 0.5 | B | 120 | 4 | 61 | 60 | 4 | 25 | 6 | 121 Ncm | 100 g |
| 10-M0.8-5-3-B | 0.8 | B | 10 | 5 | 9.6 | 8 | 6 | 5 | 3 | 2 Ncm | 3 g |
| 12-M0.8-5-3-B | 0.8 | B | 12 | 5 | 11.2 | 9.6 | 6 | 8 | 3 | 2.6 Ncm | 4 g |
| 13-M0.8-5-3-B | 0.8 | B | 13 | 5 | 12 | 10.4 | 6 | 8 | 3 | 2.9 Ncm | 5 g |
| 14-M0.8-5-3-B | 0.8 | B | 14 | 5 | 12.8 | 11.2 | 6 | 8 | 3 | 3.3 Ncm | 6 g |
| 15-M0.8-5-3-B | 0.8 | B | 15 | 5 | 13.6 | 12 | 6 | 8 | 3 | 3.6 Ncm | 6 g |
| 16-M0.8-5-4-B | 0.8 | B | 16 | 5 | 14.4 | 12.8 | 6 | 10 | 4 | 3.8 Ncm | 7 g |
| 17-M0.8-5-4-B | 0.8 | B | 17 | 5 | 15.2 | 13.6 | 6 | 10 | 4 | 4 Ncm | 7 g |
| 18-M0.8-5-4-B | 0.8 | B | 18 | 5 | 16 | 14.4 | 6 | 10 | 4 | 4.5 Ncm | 8 g |
| 19-M0.8-5-4-B | 0.8 | B | 19 | 5 | 16.8 | 15.2 | 6 | 10 | 4 | 5.1 Ncm | 9 g |
| 20-M0.8-5-4-B | 0.8 | B | 20 | 5 | 17.6 | 16 | 6 | 10 | 4 | 5.7 Ncm | 12 g |
| 21-M0.8-5-4-B | 0.8 | B | 21 | 5 | 18.4 | 16.8 | 6 | 12 | 4 | 6.4 Ncm | 14 g |
| 22-M0.8-5-4-B | 0.8 | B | 22 | 5 | 19.2 | 17.6 | 6 | 12 | 4 | 7.1 Ncm | 15 g |
| 23-M0.8-5-4-B | 0.8 | B | 23 | 5 | 20 | 18.4 | 6 | 12 | 4 | 7.9 Ncm | 15 g |
| 24-M0.8-5-4-B | 0.8 | B | 24 | 5 | 20.8 | 19.2 | 6 | 12 | 4 | 8.7 Ncm | 16 g |
| 25-M0.8-5-5-B | 0.8 | B | 25 | 5 | 21.6 | 20 | 6 | 15 | 5 | 9.5 Ncm | 18 g |
| 26-M0.8-5-5-B | 0.8 | B | 26 | 5 | 22.4 | 20.8 | 6 | 15 | 5 | 10.4 Ncm | 18 g |
| 27-M0.8-5-5-B | 0.8 | B | 27 | 5 | 23.2 | 21.6 | 6 | 15 | 5 | 11.3 Ncm | 19 g |
| 28-M0.8-5-5-B | 0.8 | B | 28 | 5 | 24 | 22.4 | 6 | 15 | 5 | 12.2 Ncm | 20 g |
| 30-M0.8-5-5-B | 0.8 | B | 30 | 5 | 25.6 | 24 | 6 | 15 | 5 | 14.3 Ncm | 22 g |
| 32-M0.8-5-5-B | 0.8 | B | 32 | 5 | 27.2 | 25.6 | 6 | 15 | 5 | 16.5 Ncm | 23 g |
| 35-M0.8-5-5-B | 0.8 | B | 35 | 5 | 29.6 | 28 | 6 | 15 | 5 | 20.2 Ncm | 26 g |
| 36-M0.8-5-5-B | 0.8 | B | 36 | 5 | 30.4 | 28.8 | 6 | 15 | 5 | 21.5 Ncm | 28 g |
| 38-M0.8-5-5-B | 0.8 | B | 38 | 5 | 32 | 30.4 | 6 | 18 | 5 | 24.3 Ncm | 33 g |
| 40-M0.8-5-5-B | 0.8 | B | 40 | 5 | 33.6 | 32 | 6 | 18 | 5 | 27.2 Ncm | 35 g |
| 42-M0.8-5-6-B | 0.8 | B | 42 | 5 | 35.2 | 33.6 | 6 | 18 | 6 | 30.4 Ncm | 37 g |
| 45-M0.8-5-6-B | 0.8 | B | 45 | 5 | 37.6 | 36 | 6 | 18 | 6 | 35.5 Ncm | 41 g |
| 48-M0.8-5-6-B | 0.8 | B | 48 | 5 | 40 | 38.4 | 6 | 18 | 6 | 41 Ncm | 45 g |
| 50-M0.8-5-6-B | 0.8 | B | 50 | 5 | 41.6 | 40 | 6 | 18 | 6 | 45 Ncm | 48 g |
| 52-M0.8-5-6-B | 0.8 | B | 52 | 5 | 43.2 | 41.6 | 6 | 18 | 6 | 49 Ncm | 51 g |
| 54-M0.8-5-6-B | 0.8 | B | 54 | 5 | 44.8 | 43.2 | 6 | 18 | 6 | 53.4 Ncm | 55 g |
| 55-M0.8-5-6-B | 0.8 | B | 55 | 5 | 45.6 | 44 | 6 | 18 | 6 | 55.6 Ncm | 60 g |
| 56-M0.8-5-6-B | 0.8 | B | 56 | 5 | 46.4 | 44.8 | 6 | 18 | 6 | 57.9 Ncm | 65 g |
| 60-M0.8-5-6-B | 0.8 | B | 60 | 5 | 49.6 | 48 | 6 | 18 | 6 | 67.6 Ncm | 76 g |
| 64-M0.8-5-6-B | 0.8 | B | 64 | 5 | 52.8 | 51.2 | 6 | 18 | 6 | 78.2 Ncm | 84 g |
| 65-M0.8-5-6-B | 0.8 | B | 65 | 5 | 53.6 | 52 | 6 | 18 | 6 | 81 Ncm | 90 g |
| 70-M0.8-5-6-B | 0.8 | B | 70 | 5 | 57.6 | 56 | 6 | 18 | 6 | 95.8 Ncm | 107 g |
| 72-M0.8-5-6-B | 0.8 | B | 72 | 5 | 59.2 | 57.6 | 6 | 20 | 6 | 102 Ncm | 117 g |
| 75-M0.8-5-6-B | 0.8 | B | 75 | 5 | 61.6 | 60 | 6 | 20 | 6 | 112 Ncm | 123 g |
| 80-M0.8-5-6-B | 0.8 | B | 80 | 5 | 65.6 | 64 | 6 | 20 | 6 | 129 Ncm | 145 g |
| 85-M0.8-5-6-B | 0.8 | B | 85 | 5 | 69.6 | 68 | 6 | 20 | 6 | 149 Ncm | 159 g |
| 90-M0.8-5-6-B | 0.8 | B | 90 | 5 | 73.6 | 72 | 6 | 20 | 6 | 169 Ncm | 193 g |
| 96-M0.8-5-8-B | 0.8 | B | 96 | 5 | 78.4 | 76.8 | 6 | 25 | 8 | 196 Ncm | 218 g |
| 100-M0.8-5-8-B | 0.8 | B | 100 | 5 | 81.6 | 80 | 6 | 25 | 8 | 215 Ncm | 254 g |
| 114-M0.8-5-8-B | 0.8 | B | 114 | 5 | 92.8 | 91.2 | 6 | 25 | 8 | 291 Ncm | 311 g |
| 120-M0.8-5-8-B | 0.8 | B | 120 | 5 | 97.6 | 96 | 6 | 25 | 8 | 327 Ncm | 384 g |
| 11-M1-15-5-B | 1 | B | 11 | 15 | 13 | 11 | 10 | 8 | 5 | 0.3 Nm | 12 g |
| 12-M1-15-6-B | 1 | B | 12 | 15 | 14 | 12 | 10 | 9 | 6 | 0.35 Nm | 13 g |
| 13-M1-15-6-B | 1 | B | 13 | 15 | 15 | 13 | 10 | 10 | 6 | 0.4 Nm | 16 g |
| 14-M1-15-6-B | 1 | B | 14 | 15 | 16 | 14 | 10 | 11 | 6 | 0.45 Nm | 20 g |
| 15-M1-15-6-B | 1 | B | 15 | 15 | 17 | 15 | 10 | 12 | 6 | 0.49 Nm | 24 g |
| 16-M1-15-6-B | 1 | B | 16 | 15 | 18 | 16 | 10 | 13 | 6 | 0.53 Nm | 28 g |
| 17-M1-15-6-B | 1 | B | 17 | 15 | 19 | 17 | 10 | 14 | 6 | 0.55 Nm | 33 g |
| 18-M1-15-8-B | 1 | B | 18 | 15 | 20 | 18 | 10 | 15 | 8 | 0.62 Nm | 33 g |
| 19-M1-15-8-B | 1 | B | 19 | 15 | 21 | 19 | 10 | 15 | 8 | 0.72 Nm | 37 g |
| 20-M1-15-8-B | 1 | B | 20 | 15 | 22 | 20 | 10 | 16 | 8 | 0.81 Nm | 42 g |
| 21-M1-15-8-B | 1 | B | 21 | 15 | 23 | 21 | 10 | 16 | 8 | 0.91 Nm | 46 g |
| 22-M1-15-8-B | 1 | B | 22 | 15 | 24 | 22 | 10 | 16 | 8 | 1.01 Nm | 50 g |
| 23-M1-15-8-B | 1 | B | 23 | 15 | 25 | 23 | 10 | 18 | 8 | 1.12 Nm | 58 g |
| 24-M1-15-10-B | 1 | B | 24 | 15 | 26 | 24 | 10 | 20 | 10 | 1.25 Nm | 61 g |
| 25-M1-15-10-B | 1 | B | 25 | 15 | 27 | 25 | 10 | 20 | 10 | 1.36 Nm | 66 g |
| 26-M1-15-10-B | 1 | B | 26 | 15 | 28 | 26 | 10 | 20 | 10 | 1.5 Nm | 70 g |
| 27-M1-15-10-B | 1 | B | 27 | 15 | 29 | 27 | 10 | 20 | 10 | 1.64 Nm | 75 g |
| 28-M1-15-10-B | 1 | B | 28 | 15 | 30 | 28 | 10 | 20 | 10 | 1.77 Nm | 80 g |
| 29-M1-15-10-B | 1 | B | 29 | 15 | 31 | 29 | 10 | 20 | 10 | 1.95 Nm | 85 g |
| 30-M1-15-10-B | 1 | B | 30 | 15 | 32 | 30 | 10 | 20 | 10 | 2.09 Nm | 90 g |
| 31-M1-15-10-B | 1 | B | 31 | 15 | 33 | 31 | 10 | 25 | 10 | 2.24 Nm | 110 g |
| 32-M1-15-10-B | 1 | B | 32 | 15 | 34 | 32 | 10 | 25 | 10 | 2.43 Nm | 115 g |
| 33-M1-15-10-B | 1 | B | 33 | 15 | 35 | 33 | 10 | 25 | 10 | 2.62 Nm | 120 g |
| 34-M1-15-10-B | 1 | B | 34 | 15 | 36 | 34 | 10 | 25 | 10 | 2.79 Nm | 130 g |
| 35-M1-15-10-B | 1 | B | 35 | 15 | 37 | 35 | 10 | 25 | 10 | 2.99 Nm | 135 g |
| 36-M1-15-10-B | 1 | B | 36 | 15 | 38 | 36 | 10 | 25 | 10 | 3.18 Nm | 140 g |
| 37-M1-15-10-B | 1 | B | 37 | 15 | 39 | 37 | 10 | 25 | 10 | 3.29 Nm | 145 g |
| 38-M1-15-10-B | 1 | B | 38 | 15 | 40 | 38 | 10 | 25 | 10 | 3.64 Nm | 155 g |
| 39-M1-15-10-B | 1 | B | 39 | 15 | 41 | 39 | 10 | 25 | 10 | 3.85 Nm | 160 g |
| 40-M1-15-10-B | 1 | B | 40 | 15 | 42 | 40 | 10 | 25 | 10 | 4.09 Nm | 170 g |
| 41-M1-15-10-B | 1 | B | 41 | 15 | 43 | 41 | 10 | 30 | 10 | 4.36 Nm | 190 g |
| 42-M1-15-10-B | 1 | B | 42 | 15 | 44 | 42 | 10 | 30 | 10 | 4.59 Nm | 200 g |
| 43-M1-15-10-B | 1 | B | 43 | 15 | 45 | 43 | 10 | 30 | 10 | 4.86 Nm | 210 g |
| 44-M1-15-10-B | 1 | B | 44 | 15 | 46 | 44 | 10 | 30 | 10 | 5.11 Nm | 215 g |
| 45-M1-15-10-B | 1 | B | 45 | 15 | 47 | 45 | 10 | 30 | 10 | 5.38 Nm | 225 g |
| 46-M1-15-10-B | 1 | B | 46 | 15 | 48 | 46 | 10 | 30 | 10 | 5.66 Nm | 230 g |
| 47-M1-15-10-B | 1 | B | 47 | 15 | 49 | 47 | 10 | 30 | 10 | 6.02 Nm | 240 g |
| 48-M1-15-10-B | 1 | B | 48 | 15 | 50 | 48 | 10 | 30 | 10 | 6.42 Nm | 250 g |
| 49-M1-15-10-B | 1 | B | 49 | 15 | 51 | 49 | 10 | 30 | 10 | 6.82 Nm | 260 g |
| 50-M1-15-12-B | 1 | B | 50 | 15 | 52 | 50 | 10 | 30 | 12 | 7.25 Nm | 260 g |
| 51-M1-15-12-B | 1 | B | 51 | 15 | 53 | 51 | 10 | 40 | 12 | 7.69 Nm | 310 g |
| 52-M1-15-12-B | 1 | B | 52 | 15 | 54 | 52 | 10 | 40 | 12 | 8.18 Nm | 320 g |
| 53-M1-15-12-B | 1 | B | 53 | 15 | 55 | 53 | 10 | 40 | 12 | 8.43 Nm | 330 g |
| 54-M1-15-12-B | 1 | B | 54 | 15 | 56 | 54 | 10 | 40 | 12 | 8.93 Nm | 340 g |
| 55-M1-15-12-B | 1 | B | 55 | 15 | 57 | 55 | 10 | 40 | 12 | 9.34 Nm | 350 g |
| 56-M1-15-12-B | 1 | B | 56 | 15 | 58 | 56 | 10 | 40 | 12 | 9.72 Nm | 360 g |
| 57-M1-15-12-B | 1 | B | 57 | 15 | 59 | 57 | 10 | 40 | 12 | 10.1 Nm | 370 g |
| 58-M1-15-12-B | 1 | B | 58 | 15 | 60 | 58 | 10 | 40 | 12 | 10.5 Nm | 380 g |
| 59-M1-15-12-B | 1 | B | 59 | 15 | 61 | 59 | 10 | 40 | 12 | 11 Nm | 390 g |
| 60-M1-15-12-B | 1 | B | 60 | 15 | 62 | 60 | 10 | 40 | 12 | 11.5 Nm | 400 g |
| 61-M1-15-12-B | 1 | B | 61 | 15 | 63 | 61 | 10 | 50 | 12 | 12 Nm | 470 g |
| 62-M1-15-12-B | 1 | B | 62 | 15 | 64 | 62 | 10 | 50 | 12 | 12.7 Nm | 480 g |
| 63-M1-15-12-B | 1 | B | 63 | 15 | 65 | 63 | 10 | 50 | 12 | 13.3 Nm | 490 g |
| 64-M1-15-12-B | 1 | B | 64 | 15 | 66 | 64 | 10 | 50 | 12 | 14 Nm | 500 g |
| 65-M1-15-12-B | 1 | B | 65 | 15 | 67 | 65 | 10 | 50 | 12 | 14.6 Nm | 515 g |
| 66-M1-15-12-B | 1 | B | 66 | 15 | 68 | 66 | 10 | 50 | 12 | 15 Nm | 525 g |
| 67-M1-15-12-B | 1 | B | 67 | 15 | 69 | 67 | 10 | 50 | 12 | 15.5 Nm | 540 g |
| 68-M1-15-12-B | 1 | B | 68 | 15 | 70 | 68 | 10 | 50 | 12 | 15.9 Nm | 550 g |
| 69-M1-15-12-B | 1 | B | 69 | 15 | 71 | 69 | 10 | 50 | 12 | 16.3 Nm | 560 g |
| 70-M1-15-12-B | 1 | B | 70 | 15 | 72 | 70 | 10 | 50 | 12 | 16.7 Nm | 575 g |
| 75-M1-15-12-B | 1 | B | 75 | 15 | 77 | 75 | 10 | 50 | 12 | 18.4 Nm | 650 g |
| 80-M1-15-12-B | 1 | B | 80 | 15 | 82 | 80 | 10 | 50 | 12 | 20.3 Nm | 720 g |
| 90-M1-15-12-B | 1 | B | 90 | 15 | 92 | 90 | 10 | 50 | 12 | 24.5 Nm | 880 g |
| 100-M1-15-12-B | 1 | B | 100 | 15 | 102 | 100 | 10 | 60 | 12 | 28.9 Nm | 1.12 kg |
| 120-M1-15-12-B | 1 | B | 120 | 15 | 122 | 120 | 10 | 60 | 12 | 40 Nm | 1.53 kg |
| 11-M1.5-17-6-B | 1.5 | B | 11 | 17 | 19.5 | 16.5 | 13 | 12 | 6 | 0.99 Nm | 33 g |
| 12-M1.5-17-8-B | 1.5 | B | 12 | 17 | 21 | 18 | 13 | 14 | 8 | 1.14 Nm | 40 g |
| 13-M1.5-17-8-B | 1.5 | B | 13 | 17 | 22.5 | 19.5 | 13 | 15 | 8 | 1.3 Nm | 50 g |
| 14-M1.5-17-8-B | 1.5 | B | 14 | 17 | 24 | 21 | 13 | 17 | 8 | 1.46 Nm | 60 g |
| 15-M1.5-17-8-B | 1.5 | B | 15 | 17 | 25.5 | 22.5 | 13 | 18 | 8 | 1.58 Nm | 70 g |
| 16-M1.5-17-8-B | 1.5 | B | 16 | 17 | 27 | 24 | 13 | 19 | 8 | 1.1 Nm | 80 g |
| 17-M1.5-17-8-B | 1.5 | B | 17 | 17 | 28.5 | 25.5 | 13 | 20 | 8 | 1.79 Nm | 90 g |
| 18-M1.5-17-8-B | 1.5 | B | 18 | 17 | 30 | 27 | 13 | 20 | 8 | 1.99 Nm | 100 g |
| 19-M1.5-17-8-B | 1.5 | B | 19 | 17 | 31.5 | 28.5 | 13 | 20 | 8 | 2.31 Nm | 110 g |
| 20-M1.5-17-8-B | 1.5 | B | 20 | 17 | 33 | 30 | 13 | 25 | 8 | 2.6 Nm | 120 g |
| 21-M1.5-17-10-B | 1.5 | B | 21 | 17 | 34.5 | 31.5 | 13 | 25 | 10 | 2.92 Nm | 130 g |
| 22-M1.5-17-10-B | 1.5 | B | 22 | 17 | 36 | 33 | 13 | 25 | 10 | 3.25 Nm | 140 g |
| 23-M1.5-17-10-B | 1.5 | B | 23 | 17 | 37.5 | 34.5 | 13 | 25 | 10 | 3.61 Nm | 160 g |
| 24-M1.5-17-10-B | 1.5 | B | 24 | 17 | 39 | 36 | 13 | 25 | 10 | 4.02 Nm | 170 g |
| 25-M1.5-17-10-B | 1.5 | B | 25 | 17 | 40.5 | 37.5 | 13 | 25 | 10 | 4.38 Nm | 180 g |
| 26-M1.5-17-12-B | 1.5 | B | 26 | 17 | 42 | 39 | 13 | 30 | 12 | 4.83 Nm | 200 g |
| 27-M1.5-17-12-B | 1.5 | B | 27 | 17 | 43.5 | 40.5 | 13 | 30 | 12 | 5.28 Nm | 220 g |
| 28-M1.5-17-12-B | 1.5 | B | 28 | 17 | 45 | 42 | 13 | 30 | 12 | 5.72 Nm | 230 g |
| 29-M1.5-17-12-B | 1.5 | B | 29 | 17 | 46.5 | 43.5 | 13 | 30 | 12 | 6.29 Nm | 240 g |
| 30-M1.5-17-12-B | 1.5 | B | 30 | 17 | 48 | 45 | 13 | 30 | 12 | 6.74 Nm | 260 g |
| 31-M1.5-17-12-B | 1.5 | B | 31 | 17 | 49.5 | 46.5 | 13 | 35 | 12 | 7.23 Nm | 300 g |
| 32-M1.5-17-12-B | 1.5 | B | 32 | 17 | 51 | 48 | 13 | 35 | 12 | 7.84 Nm | 310 g |
| 33-M1.5-17-12-B | 1.5 | B | 33 | 17 | 52.5 | 49.5 | 13 | 35 | 12 | 8.44 Nm | 330 g |
| 34-M1.5-17-12-B | 1.5 | B | 34 | 17 | 54 | 51 | 13 | 35 | 12 | 9.01 Nm | 340 g |
| 35-M1.5-17-12-B | 1.5 | B | 35 | 17 | 55.5 | 52.5 | 13 | 35 | 12 | 9.66 Nm | 360 g |
| 36-M1.5-17-12-B | 1.5 | B | 36 | 17 | 57 | 54 | 13 | 35 | 12 | 10.3 Nm | 370 g |
| 37-M1.5-17-12-B | 1.5 | B | 37 | 17 | 58.5 | 55.5 | 13 | 40 | 12 | 10.6 Nm | 420 g |
| 38-M1.5-17-12-B | 1.5 | B | 38 | 17 | 60 | 57 | 13 | 40 | 12 | 11.7 Nm | 440 g |
| 39-M1.5-17-12-B | 1.5 | B | 39 | 17 | 61.5 | 58.5 | 13 | 40 | 12 | 12.4 Nm | 460 g |
| 40-M1.5-17-12-B | 1.5 | B | 40 | 17 | 63 | 60 | 13 | 40 | 12 | 13.2 Nm | 480 g |
| 41-M1.5-17-12-B | 1.5 | B | 41 | 17 | 64.5 | 61.5 | 13 | 40 | 12 | 14.1 Nm | 500 g |
| 42-M1.5-17-12-B | 1.5 | B | 42 | 17 | 66 | 63 | 13 | 50 | 12 | 14.8 Nm | 590 g |
| 43-M1.5-17-12-B | 1.5 | B | 43 | 17 | 67.5 | 64.5 | 13 | 50 | 12 | 15.7 Nm | 610 g |
| 44-M1.5-17-12-B | 1.5 | B | 44 | 17 | 69 | 66 | 13 | 50 | 12 | 16.5 Nm | 630 g |
| 45-M1.5-17-12-B | 1.5 | B | 45 | 17 | 70.5 | 67.5 | 13 | 50 | 12 | 17.3 Nm | 650 g |
| 46-M1.5-17-14-B | 1.5 | B | 46 | 17 | 72 | 69 | 13 | 50 | 14 | 18.3 Nm | 670 g |
| 47-M1.5-17-14-B | 1.5 | B | 47 | 17 | 73.5 | 70.5 | 13 | 50 | 14 | 19.4 Nm | 700 g |
| 48-M1.5-17-14-B | 1.5 | B | 48 | 17 | 75 | 72 | 13 | 50 | 14 | 20.7 Nm | 710 g |
| 49-M1.5-17-14-B | 1.5 | B | 49 | 17 | 76.5 | 73.5 | 13 | 50 | 14 | 22 Nm | 730 g |
| 50-M1.5-17-14-B | 1.5 | B | 50 | 17 | 78 | 75 | 13 | 50 | 14 | 23.4 Nm | 760 g |
| 51-M1.5-17-14-B | 1.5 | B | 51 | 17 | 79.5 | 76.5 | 13 | 60 | 14 | 24.8 Nm | 860 g |
| 52-M1.5-17-14-B | 1.5 | B | 52 | 17 | 81 | 78 | 13 | 60 | 14 | 26.4 Nm | 890 g |
| 53-M1.5-17-14-B | 1.5 | B | 53 | 17 | 82.5 | 79.5 | 13 | 60 | 14 | 27.2 Nm | 910 g |
| 54-M1.5-17-14-B | 1.5 | B | 54 | 17 | 84 | 81 | 13 | 60 | 14 | 28.8 Nm | 940 g |
| 55-M1.5-17-14-B | 1.5 | B | 55 | 17 | 85.5 | 82.5 | 13 | 60 | 14 | 30.1 Nm | 960 g |
| 56-M1.5-17-16-B | 1.5 | B | 56 | 17 | 87 | 84 | 13 | 60 | 16 | 31.4 Nm | 980 g |
| 57-M1.5-17-16-B | 1.5 | B | 57 | 17 | 88.5 | 85.5 | 13 | 60 | 16 | 32.7 Nm | 1 kg |
| 58-M1.5-17-16-B | 1.5 | B | 58 | 17 | 90 | 87 | 13 | 60 | 16 | 34 Nm | 1.03 kg |
| 59-M1.5-17-16-B | 1.5 | B | 59 | 17 | 91.5 | 88.5 | 13 | 60 | 16 | 35.5 Nm | 1.06 kg |
| 60-M1.5-17-16-B | 1.5 | B | 60 | 17 | 93 | 90 | 13 | 60 | 16 | 37 Nm | 1.09 kg |
| 61-M1.5-17-16-B | 1.5 | B | 61 | 17 | 94.5 | 91.5 | 13 | 70 | 16 | 38.6 Nm | 1.22 kg |
| 62-M1.5-17-16-B | 1.5 | B | 62 | 17 | 96 | 93 | 13 | 70 | 16 | 40.8 Nm | 1.25 kg |
| 63-M1.5-17-16-B | 1.5 | B | 63 | 17 | 97.5 | 94.5 | 13 | 70 | 16 | 42.9 Nm | 1.28 kg |
| 64-M1.5-17-16-B | 1.5 | B | 64 | 17 | 99 | 96 | 13 | 70 | 16 | 45 Nm | 1.31 kg |
| 65-M1.5-17-16-B | 1.5 | B | 65 | 17 | 100.5 | 97.5 | 13 | 70 | 16 | 47.1 Nm | 1.34 kg |
| 66-M1.5-17-16-B | 1.5 | B | 66 | 17 | 102 | 99 | 13 | 70 | 16 | 48.5 Nm | 1.37 kg |
| 67-M1.5-17-16-B | 1.5 | B | 67 | 17 | 103.5 | 100.5 | 13 | 70 | 16 | 49.5 Nm | 1.4 kg |
| 68-M1.5-17-16-B | 1.5 | B | 68 | 17 | 105 | 102 | 13 | 70 | 16 | 51.4 Nm | 1.43 kg |
| 69-M1.5-17-16-B | 1.5 | B | 69 | 17 | 106.5 | 103.5 | 13 | 70 | 16 | 52.6 Nm | 1.46 kg |
| 70-M1.5-17-16-B | 1.5 | B | 70 | 17 | 108 | 105 | 13 | 70 | 16 | 53.7 Nm | 1.5 kg |
| 72-M1.5-17-16-B | 1.5 | B | 72 | 17 | 111 | 108 | 13 | 80 | 16 | 55.8 Nm | 1.66 kg |
| 75-M1.5-17-16-B | 1.5 | B | 75 | 17 | 115.5 | 112.5 | 13 | 80 | 16 | 59.3 Nm | 1.76 kg |
| 80-M1.5-17-16-B | 1.5 | B | 80 | 17 | 123 | 120 | 13 | 80 | 16 | 65.1 Nm | 1.94 kg |
| 90-M1.5-17-16-B | 1.5 | B | 90 | 17 | 138 | 135 | 13 | 80 | 16 | 84.8 Nm | 2.33 kg |
| 100-M1.5-17-16-B | 1.5 | B | 100 | 17 | 153 | 150 | 13 | 80 | 16 | 92.2 Nm | 2.77 kg |
| 120-M1.5-17-16-B | 1.5 | B | 120 | 17 | 183 | 180 | 13 | 80 | 16 | 100.8 Nm | 3.79 kg |
| 12-M2-20-10-B | 2 | B | 12 | 20 | 28 | 24 | 15 | 18 | 10 | 2.8 Nm | 80 g |
| 13-M2-20-10-B | 2 | B | 13 | 20 | 30 | 26 | 15 | 20 | 10 | 3.2 Nm | 100 g |
| 14-M2-20-10-B | 2 | B | 14 | 20 | 32 | 28 | 15 | 22 | 10 | 3.6 Nm | 120 g |
| 15-M2-20-10-B | 2 | B | 15 | 20 | 34 | 30 | 15 | 24 | 10 | 3.9 Nm | 140 g |
| 16-M2-20-10-B | 2 | B | 16 | 20 | 36 | 32 | 15 | 25 | 10 | 4.2 Nm | 160 g |
| 17-M2-20-10-B | 2 | B | 17 | 20 | 38 | 34 | 15 | 25 | 10 | 4.4 Nm | 180 g |
| 18-M2-20-10-B | 2 | B | 18 | 20 | 40 | 36 | 15 | 25 | 10 | 4.9 Nm | 190 g |
| 19-M2-20-10-B | 2 | B | 19 | 20 | 42 | 38 | 15 | 25 | 10 | 5.7 Nm | 210 g |
| 20-M2-20-10-B | 2 | B | 20 | 20 | 44 | 40 | 15 | 30 | 10 | 6.4 Nm | 260 g |
| 21-M2-20-12-B | 2 | B | 21 | 20 | 46 | 42 | 15 | 30 | 12 | 7.2 Nm | 270 g |
| 22-M2-20-12-B | 2 | B | 22 | 20 | 48 | 44 | 15 | 30 | 12 | 8 Nm | 290 g |
| 23-M2-20-12-B | 2 | B | 23 | 20 | 50 | 46 | 15 | 30 | 12 | 8.9 Nm | 310 g |
| 24-M2-20-12-B | 2 | B | 24 | 20 | 52 | 48 | 15 | 35 | 12 | 9.9 Nm | 360 g |
| 25-M2-20-12-B | 2 | B | 25 | 20 | 54 | 50 | 15 | 35 | 12 | 10.8 Nm | 390 g |
| 26-M2-20-12-B | 2 | B | 26 | 20 | 56 | 52 | 15 | 40 | 12 | 11.9 Nm | 450 g |
| 27-M2-20-12-B | 2 | B | 27 | 20 | 58 | 54 | 15 | 40 | 12 | 13 Nm | 470 g |
| 28-M2-20-12-B | 2 | B | 28 | 20 | 60 | 56 | 15 | 40 | 12 | 14.1 Nm | 500 g |
| 29-M2-20-14-B | 2 | B | 29 | 20 | 62 | 58 | 15 | 40 | 14 | 15.5 Nm | 520 g |
| 30-M2-20-14-B | 2 | B | 30 | 20 | 64 | 60 | 15 | 40 | 14 | 16.6 Nm | 550 g |
| 31-M2-20-14-B | 2 | B | 31 | 20 | 66 | 62 | 15 | 45 | 14 | 17.8 Nm | 610 g |
| 32-M2-20-14-B | 2 | B | 32 | 20 | 68 | 64 | 15 | 45 | 14 | 19.3 Nm | 650 g |
| 33-M2-20-14-B | 2 | B | 33 | 20 | 70 | 66 | 15 | 45 | 14 | 20.8 Nm | 680 g |
| 34-M2-20-14-B | 2 | B | 34 | 20 | 72 | 68 | 15 | 45 | 14 | 22.2 Nm | 710 g |
| 35-M2-20-14-B | 2 | B | 35 | 20 | 74 | 70 | 15 | 45 | 14 | 23.8 Nm | 740 g |
| 36-M2-20-14-B | 2 | B | 36 | 20 | 76 | 72 | 15 | 45 | 14 | 25.3 Nm | 780 g |
| 37-M2-20-14-B | 2 | B | 37 | 20 | 78 | 74 | 15 | 50 | 14 | 26.1 Nm | 860 g |
| 38-M2-20-14-B | 2 | B | 38 | 20 | 80 | 76 | 15 | 50 | 14 | 28.9 Nm | 900 g |
| 39-M2-20-14-B | 2 | B | 39 | 20 | 82 | 78 | 15 | 50 | 14 | 30.6 Nm | 930 g |
| 40-M2-20-14-B | 2 | B | 40 | 20 | 84 | 80 | 15 | 50 | 14 | 32.5 Nm | 970 g |
| 41-M2-20-16-B | 2 | B | 41 | 20 | 86 | 82 | 15 | 55 | 16 | 34.6 Nm | 1.05 kg |
| 42-M2-20-16-B | 2 | B | 42 | 20 | 88 | 84 | 15 | 55 | 16 | 36.5 Nm | 1.09 kg |
| 43-M2-20-16-B | 2 | B | 43 | 20 | 90 | 86 | 15 | 55 | 16 | 38.6 Nm | 1.13 kg |
| 44-M2-20-16-B | 2 | B | 44 | 20 | 92 | 88 | 15 | 60 | 16 | 40.6 Nm | 1.23 kg |
| 45-M2-20-16-B | 2 | B | 45 | 20 | 94 | 90 | 15 | 60 | 16 | 42.7 Nm | 1.27 kg |
| 46-M2-20-16-B | 2 | B | 46 | 20 | 96 | 92 | 15 | 60 | 16 | 45 Nm | 1.31 kg |
| 47-M2-20-16-B | 2 | B | 47 | 20 | 98 | 94 | 15 | 70 | 16 | 47.8 Nm | 1.48 kg |
| 48-M2-20-16-B | 2 | B | 48 | 20 | 100 | 96 | 15 | 70 | 16 | 51 Nm | 1.53 kg |
| 49-M2-20-16-B | 2 | B | 49 | 20 | 102 | 98 | 15 | 70 | 16 | 54.2 Nm | 1.57 kg |
| 50-M2-20-16-B | 2 | B | 50 | 20 | 104 | 100 | 15 | 70 | 16 | 57.6 Nm | 1.62 kg |
| 51-M2-20-16-B | 2 | B | 51 | 20 | 106 | 102 | 15 | 70 | 16 | 61.1 Nm | 1.67 kg |
| 52-M2-20-16-B | 2 | B | 52 | 20 | 108 | 104 | 15 | 70 | 16 | 64.8 Nm | 1.72 kg |
| 53-M2-20-16-B | 2 | B | 53 | 20 | 110 | 106 | 15 | 70 | 16 | 68.5 Nm | 1.78 kg |
| 54-M2-20-16-B | 2 | B | 54 | 20 | 112 | 108 | 15 | 70 | 16 | 72.4 Nm | 1.83 kg |
| 55-M2-20-16-B | 2 | B | 55 | 20 | 114 | 110 | 15 | 70 | 16 | 76.3 Nm | 1.88 kg |
| 56-M2-20-16-B | 2 | B | 56 | 20 | 116 | 112 | 15 | 70 | 16 | 80.5 Nm | 1.94 kg |
| 57-M2-20-16-B | 2 | B | 57 | 20 | 118 | 114 | 15 | 70 | 16 | 84.7 Nm | 1.99 kg |
| 58-M2-20-16-B | 2 | B | 58 | 20 | 120 | 116 | 15 | 70 | 16 | 89 Nm | 2.05 kg |
| 59-M2-20-16-B | 2 | B | 59 | 20 | 122 | 118 | 15 | 70 | 16 | 93.1 Nm | 2.11 kg |
| 60-M2-20-16-B | 2 | B | 60 | 20 | 124 | 120 | 15 | 70 | 16 | 97.3 Nm | 2.16 kg |
| 61-M2-20-16-B | 2 | B | 61 | 20 | 126 | 122 | 15 | 80 | 16 | 102 Nm | 2.36 kg |
| 62-M2-20-16-B | 2 | B | 62 | 20 | 128 | 124 | 15 | 80 | 16 | 107 Nm | 2.42 kg |
| 63-M2-20-16-B | 2 | B | 63 | 20 | 130 | 126 | 15 | 80 | 16 | 111 Nm | 2.48 kg |
| 64-M2-20-16-B | 2 | B | 64 | 20 | 132 | 128 | 15 | 80 | 16 | 114 Nm | 2.55 kg |
| 65-M2-20-16-B | 2 | B | 65 | 20 | 134 | 130 | 15 | 80 | 16 | 117 Nm | 2.61 kg |
| 66-M2-20-16-B | 2 | B | 66 | 20 | 136 | 132 | 15 | 80 | 16 | 120 Nm | 2.67 kg |
| 67-M2-20-16-B | 2 | B | 67 | 20 | 138 | 134 | 15 | 80 | 16 | 122 Nm | 2.74 kg |
| 68-M2-20-16-B | 2 | B | 68 | 20 | 140 | 136 | 15 | 80 | 16 | 125 Nm | 2.81 kg |
| 69-M2-20-16-B | 2 | B | 69 | 20 | 142 | 138 | 15 | 80 | 16 | 127 Nm | 2.87 kg |
| 70-M2-20-16-B | 2 | B | 70 | 20 | 144 | 140 | 15 | 80 | 16 | 130 Nm | 2.94 kg |
| 75-M2-20-16-B | 2 | B | 75 | 20 | 154 | 150 | 15 | 80 | 16 | 166 Nm | 3.25 kg |
| 80-M2-20-16-B | 2 | B | 80 | 20 | 164 | 160 | 15 | 80 | 16 | 175 Nm | 3.6 kg |
| 90-M2-20-20-B | 2 | B | 90 | 20 | 184 | 180 | 15 | 90 | 20 | 180 Nm | 4.57 kg |
| 100-M2-20-20-B | 2 | B | 100 | 20 | 204 | 200 | 15 | 100 | 20 | 185 Nm | 5.67 kg |
| 120-M2-20-20-B | 2 | B | 120 | 20 | 244 | 240 | 15 | 100 | 20 | 217 Nm | 7.79 kg |
| 12-M2.5-25-10-B | 2.5 | B | 12 | 25 | 35 | 30 | 20 | 22 | 10 | 5.9 Nm | 170 g |
| 13-M2.5-25-10-B | 2.5 | B | 13 | 25 | 37.5 | 32.5 | 20 | 25 | 10 | 6.7 Nm | 210 g |
| 14-M2.5-25-10-B | 2.5 | B | 14 | 25 | 40 | 35 | 20 | 28 | 10 | 7.6 Nm | 250 g |
| 15-M2.5-25-10-B | 2.5 | B | 15 | 25 | 42.5 | 37.5 | 20 | 30 | 10 | 8.3 Nm | 300 g |
| 16-M2.5-25-12-B | 2.5 | B | 16 | 25 | 45 | 40 | 20 | 32 | 12 | 8.9 Nm | 330 g |
| 17-M2.5-25-12-B | 2.5 | B | 17 | 25 | 47.5 | 42.5 | 20 | 35 | 12 | 9.2 Nm | 380 g |
| 18-M2.5-25-12-B | 2.5 | B | 18 | 25 | 50 | 45 | 20 | 35 | 12 | 10.4 Nm | 420 g |
| 19-M2.5-25-12-B | 2.5 | B | 19 | 25 | 52.5 | 47.5 | 20 | 35 | 12 | 11.9 Nm | 450 g |
| 20-M2.5-25-12-B | 2.5 | B | 20 | 25 | 55 | 50 | 20 | 40 | 12 | 13.4 Nm | 540 g |
| 21-M2.5-25-14-B | 2.5 | B | 21 | 25 | 57.5 | 52.5 | 20 | 40 | 14 | 15.1 Nm | 560 g |
| 22-M2.5-25-14-B | 2.5 | B | 22 | 25 | 60 | 55 | 20 | 45 | 14 | 16.9 Nm | 660 g |
| 23-M2.5-25-14-B | 2.5 | B | 23 | 25 | 62.5 | 57.5 | 20 | 45 | 14 | 18.7 Nm | 700 g |
| 24-M2.5-25-14-B | 2.5 | B | 24 | 25 | 65 | 60 | 20 | 45 | 14 | 20.8 Nm | 740 g |
| 25-M2.5-25-14-B | 2.5 | B | 25 | 25 | 67.5 | 62.5 | 20 | 50 | 14 | 22.8 Nm | 850 g |
| 26-M2.5-25-14-B | 2.5 | B | 26 | 25 | 70 | 65 | 20 | 50 | 14 | 25 Nm | 900 g |
| 27-M2.5-25-14-B | 2.5 | B | 27 | 25 | 72.5 | 67.5 | 20 | 50 | 14 | 27.3 Nm | 950 g |
| 28-M2.5-25-14-B | 2.5 | B | 28 | 25 | 75 | 70 | 20 | 50 | 14 | 29.6 Nm | 1 kg |
| 29-M2.5-25-14-B | 2.5 | B | 29 | 25 | 77.5 | 72.5 | 20 | 50 | 14 | 32.7 Nm | 1.06 kg |
| 30-M2.5-25-14-B | 2.5 | B | 30 | 25 | 80 | 75 | 20 | 55 | 14 | 34.9 Nm | 1.18 kg |
| 31-M2.5-25-16-B | 2.5 | B | 31 | 25 | 82.5 | 77.5 | 20 | 55 | 16 | 37.5 Nm | 1.22 kg |
| 32-M2.5-25-16-B | 2.5 | B | 32 | 25 | 85 | 80 | 20 | 55 | 16 | 40.6 Nm | 1.28 kg |
| 33-M2.5-25-16-B | 2.5 | B | 33 | 25 | 87.5 | 82.5 | 20 | 55 | 16 | 43.8 Nm | 1.34 kg |
| 34-M2.5-25-16-B | 2.5 | B | 34 | 25 | 90 | 85 | 20 | 55 | 16 | 46.7 Nm | 1.41 kg |
| 35-M2.5-25-16-B | 2.5 | B | 35 | 25 | 92.5 | 87.5 | 20 | 60 | 16 | 50.2 Nm | 1.54 kg |
| 36-M2.5-25-16-B | 2.5 | B | 36 | 25 | 95 | 90 | 20 | 60 | 16 | 53.3 Nm | 1.61 kg |
| 37-M2.5-25-16-B | 2.5 | B | 37 | 25 | 97.5 | 92.5 | 20 | 60 | 16 | 54.9 Nm | 1.68 kg |
| 38-M2.5-25-16-B | 2.5 | B | 38 | 25 | 100 | 95 | 20 | 60 | 16 | 60.8 Nm | 1.75 kg |
| 39-M2.5-25-16-B | 2.5 | B | 39 | 25 | 102.5 | 97.5 | 20 | 60 | 16 | 65.3 Nm | 1.83 kg |
| 40-M2.5-25-16-B | 2.5 | B | 40 | 25 | 105 | 100 | 20 | 70 | 16 | 71.2 Nm | 2.06 kg |
| 41-M2.5-25-16-B | 2.5 | B | 41 | 25 | 107.5 | 102.5 | 20 | 70 | 16 | 77.4 Nm | 2.14 kg |
| 42-M2.5-25-16-B | 2.5 | B | 42 | 25 | 110 | 105 | 20 | 70 | 16 | 82.2 Nm | 2.22 kg |
| 43-M2.5-25-16-B | 2.5 | B | 43 | 25 | 112.5 | 107.5 | 20 | 70 | 16 | 92.4 Nm | 2.3 kg |
| 44-M2.5-25-16-B | 2.5 | B | 44 | 25 | 115 | 110 | 20 | 70 | 16 | 96.6 Nm | 2.38 kg |
| 45-M2.5-25-16-B | 2.5 | B | 45 | 25 | 117.5 | 112.5 | 20 | 70 | 16 | 100 Nm | 2.47 kg |
| 46-M2.5-25-20-B | 2.5 | B | 46 | 25 | 120 | 115 | 20 | 70 | 20 | 107 Nm | 2.52 kg |
| 47-M2.5-25-20-B | 2.5 | B | 47 | 25 | 122.5 | 117.5 | 20 | 80 | 20 | 114 Nm | 2.8 kg |
| 48-M2.5-25-20-B | 2.5 | B | 48 | 25 | 125 | 120 | 20 | 80 | 20 | 120 Nm | 2.88 kg |
| 49-M2.5-25-20-B | 2.5 | B | 49 | 25 | 127.5 | 122.5 | 20 | 80 | 20 | 128 Nm | 2.98 kg |
| 50-M2.5-25-20-B | 2.5 | B | 50 | 25 | 130 | 125 | 20 | 80 | 20 | 135 Nm | 3.07 kg |
| 51-M2.5-25-20-B | 2.5 | B | 51 | 25 | 132.5 | 127.5 | 20 | 80 | 20 | 143 Nm | 3.17 kg |
| 52-M2.5-25-20-B | 2.5 | B | 52 | 25 | 135 | 130 | 20 | 90 | 20 | 149 Nm | 3.48 kg |
| 53-M2.5-25-20-B | 2.5 | B | 53 | 25 | 137.5 | 132.5 | 20 | 90 | 20 | 156 Nm | 3.58 kg |
| 54-M2.5-25-20-B | 2.5 | B | 54 | 25 | 140 | 135 | 20 | 90 | 20 | 165 Nm | 3.68 kg |
| 55-M2.5-25-20-B | 2.5 | B | 55 | 25 | 142.5 | 137.5 | 20 | 90 | 20 | 173 Nm | 3.78 kg |
| 56-M2.5-25-20-B | 2.5 | B | 56 | 25 | 145 | 140 | 20 | 100 | 20 | 181 Nm | 4.13 kg |
| 57-M2.5-25-20-B | 2.5 | B | 57 | 25 | 147.5 | 142.5 | 20 | 100 | 20 | 190 Nm | 4.23 kg |
| 58-M2.5-25-20-B | 2.5 | B | 58 | 25 | 150 | 145 | 20 | 100 | 20 | 199 Nm | 4.34 kg |
| 59-M2.5-25-20-B | 2.5 | B | 59 | 25 | 152.5 | 147.5 | 20 | 100 | 20 | 208 Nm | 4.46 kg |
| 60-M2.5-25-20-B | 2.5 | B | 60 | 25 | 155 | 150 | 20 | 100 | 20 | 217 Nm | 4.57 kg |
| 70-M2.5-25-20-B | 2.5 | B | 70 | 25 | 180 | 175 | 20 | 100 | 20 | 324 Nm | 5.74 kg |
| 90-M2.5-25-25-B | 2.5 | B | 90 | 25 | 230 | 225 | 20 | 120 | 25 | 348 Nm | 9.24 kg |
| 100-M2.5-25-25-B | 2.5 | B | 100 | 25 | 255 | 250 | 20 | 120 | 25 | 378 Nm | 11.2 kg |
| 120-M2.5-25-25-B | 2.5 | B | 120 | 25 | 305 | 300 | 20 | 120 | 25 | 438 Nm | 15.19 kg |
| 12-M3-30-12-B | 3 | B | 12 | 30 | 42 | 36 | 20 | 27 | 12 | 10.7 Nm | 280 g |
| 13-M3-30-12-B | 3 | B | 13 | 30 | 45 | 39 | 20 | 30 | 12 | 12.1 Nm | 340 g |
| 14-M3-30-12-B | 3 | B | 14 | 30 | 48 | 42 | 20 | 33 | 12 | 13.6 Nm | 410 g |
| 15-M3-30-12-B | 3 | B | 15 | 30 | 51 | 45 | 20 | 35 | 12 | 15 Nm | 470 g |
| 16-M3-30-14-B | 3 | B | 16 | 30 | 54 | 48 | 20 | 38 | 14 | 16.1 Nm | 540 g |
| 17-M3-30-14-B | 3 | B | 17 | 30 | 57 | 51 | 20 | 42 | 14 | 17 Nm | 630 g |
| 18-M3-30-14-B | 3 | B | 18 | 30 | 60 | 54 | 20 | 45 | 14 | 19 Nm | 720 g |
| 19-M3-30-14-B | 3 | B | 19 | 30 | 63 | 57 | 20 | 45 | 14 | 21.6 Nm | 780 g |
| 20-M3-30-14-B | 3 | B | 20 | 30 | 66 | 60 | 20 | 45 | 14 | 24.5 Nm | 840 g |
| 21-M3-30-16-B | 3 | B | 21 | 30 | 69 | 63 | 20 | 45 | 16 | 27.5 Nm | 890 g |
| 22-M3-30-16-B | 3 | B | 22 | 30 | 72 | 66 | 20 | 50 | 16 | 30.7 Nm | 1.02 kg |
| 23-M3-30-16-B | 3 | B | 23 | 30 | 75 | 69 | 20 | 50 | 16 | 34 Nm | 1.1 kg |
| 24-M3-30-16-B | 3 | B | 24 | 30 | 78 | 72 | 20 | 50 | 16 | 37.6 Nm | 1.18 kg |
| 25-M3-30-16-B | 3 | B | 25 | 30 | 81 | 75 | 20 | 60 | 16 | 41.4 Nm | 1.39 kg |
| 26-M3-30-16-B | 3 | B | 26 | 30 | 84 | 78 | 20 | 60 | 16 | 45.4 Nm | 1.48 kg |
| 27-M3-30-16-B | 3 | B | 27 | 30 | 87 | 81 | 20 | 60 | 16 | 49.7 Nm | 1.56 kg |
| 28-M3-30-16-B | 3 | B | 28 | 30 | 90 | 84 | 20 | 60 | 16 | 54.1 Nm | 1.66 kg |
| 29-M3-30-16-B | 3 | B | 29 | 30 | 93 | 87 | 20 | 60 | 16 | 59.2 Nm | 1.75 kg |
| 30-M3-30-16-B | 3 | B | 30 | 30 | 96 | 90 | 20 | 60 | 16 | 63.5 Nm | 1.85 kg |
| 31-M3-30-16-B | 3 | B | 31 | 30 | 99 | 93 | 20 | 60 | 16 | 69.2 Nm | 1.95 kg |
| 32-M3-30-16-B | 3 | B | 32 | 30 | 102 | 96 | 20 | 70 | 16 | 74.6 Nm | 2.21 kg |
| 33-M3-30-16-B | 3 | B | 33 | 30 | 105 | 99 | 20 | 70 | 16 | 82.8 Nm | 2.32 kg |
| 34-M3-30-16-B | 3 | B | 34 | 30 | 108 | 102 | 20 | 70 | 16 | 88.6 Nm | 2.43 kg |
| 35-M3-30-16-B | 3 | B | 35 | 30 | 111 | 105 | 20 | 70 | 16 | 97.8 Nm | 2.55 kg |
| 36-M3-30-20-B | 3 | B | 36 | 30 | 114 | 108 | 20 | 70 | 20 | 106 Nm | 2.62 kg |
| 37-M3-30-20-B | 3 | B | 37 | 30 | 117 | 111 | 20 | 70 | 20 | 115 Nm | 2.74 kg |
| 38-M3-30-20-B | 3 | B | 38 | 30 | 120 | 114 | 20 | 80 | 20 | 124 Nm | 3.05 kg |
| 39-M3-30-20-B | 3 | B | 39 | 30 | 123 | 117 | 20 | 80 | 20 | 135 Nm | 3.18 kg |
| 40-M3-30-20-B | 3 | B | 40 | 30 | 126 | 120 | 20 | 80 | 20 | 143 Nm | 3.31 kg |
| 41-M3-30-20-B | 3 | B | 41 | 30 | 129 | 123 | 20 | 80 | 20 | 155 Nm | 3.44 kg |
| 42-M3-30-20-B | 3 | B | 42 | 30 | 132 | 126 | 20 | 80 | 20 | 164 Nm | 3.58 kg |
| 43-M3-30-20-B | 3 | B | 43 | 30 | 135 | 129 | 20 | 80 | 20 | 175 Nm | 3.72 kg |
| 44-M3-30-20-B | 3 | B | 44 | 30 | 138 | 132 | 20 | 90 | 20 | 186 Nm | 4.07 kg |
| 45-M3-30-20-B | 3 | B | 45 | 30 | 141 | 135 | 20 | 90 | 20 | 196 Nm | 4.22 kg |
| 46-M3-30-20-B | 3 | B | 46 | 30 | 144 | 138 | 20 | 90 | 20 | 207 Nm | 4.37 kg |
| 47-M3-30-20-B | 3 | B | 47 | 30 | 147 | 141 | 20 | 100 | 20 | 220 Nm | 4.76 kg |
| 48-M3-30-20-B | 3 | B | 48 | 30 | 150 | 144 | 20 | 100 | 20 | 232 Nm | 4.92 kg |
| 50-M3-30-20-B | 3 | B | 50 | 30 | 156 | 150 | 20 | 100 | 20 | 258 Nm | 5.18 kg |
| 60-M3-30-20-B | 3 | B | 60 | 30 | 186 | 180 | 20 | 100 | 20 | 437 Nm | 6.97 kg |
| 65-M3-30-20-B | 3 | B | 65 | 30 | 201 | 195 | 20 | 100 | 20 | 531 Nm | 7.99 kg |
| 70-M3-30-25-B | 3 | B | 70 | 30 | 216 | 210 | 20 | 100 | 25 | 552 Nm | 9.03 kg |
| 75-M3-30-25-B | 3 | B | 75 | 30 | 231 | 225 | 20 | 120 | 25 | 557 Nm | 10.75 kg |
| 90-M3-30-25-B | 3 | B | 90 | 30 | 276 | 270 | 20 | 120 | 25 | 610 Nm | 14.79 kg |
| 100-M3-30-25-B | 3 | B | 100 | 30 | 306 | 300 | 20 | 120 | 25 | 667 Nm | 18.18 kg |
| 120-M3-30-30-B | 3 | B | 120 | 30 | 366 | 360 | 20 | 120 | 30 | 774 Nm | 24.98 kg |
| 18-M1-15-8-A | 1 | A | 18 | 15 | 20 | 18 | — | — | 8 | 0.62 Nm | 24 g |
| 20-M1-15-8-A | 1 | A | 20 | 15 | 22 | 20 | — | — | 8 | 0.81 Nm | 30 g |
| 24-M1-15-10-A | 1 | A | 24 | 15 | 26 | 24 | — | — | 10 | 1.25 Nm | 43 g |
| 25-M1-15-10-A | 1 | A | 25 | 15 | 27 | 25 | — | — | 10 | 1.36 Nm | 48 g |
| 30-M1-15-10-A | 1 | A | 30 | 15 | 32 | 30 | — | — | 10 | 2.09 Nm | 72 g |
| 35-M1-15-10-A | 1 | A | 35 | 15 | 37 | 35 | — | — | 10 | 2.99 Nm | 102 g |
| 36-M1-15-10-A | 1 | A | 36 | 15 | 38 | 36 | — | — | 10 | 3.18 Nm | 108 g |
| 40-M1-15-10-A | 1 | A | 40 | 15 | 42 | 40 | — | — | 10 | 4.09 Nm | 136 g |
| 45-M1-15-10-A | 1 | A | 45 | 15 | 47 | 45 | — | — | 10 | 5.38 Nm | 174 g |
| 48-M1-15-10-A | 1 | A | 48 | 15 | 50 | 48 | — | — | 10 | 6.42 Nm | 200 g |
| 50-M1-15-12-A | 1 | A | 50 | 15 | 52 | 50 | — | — | 12 | 7.25 Nm | 214 g |
| 52-M1-15-12-A | 1 | A | 52 | 15 | 54 | 52 | — | — | 12 | 8.18 Nm | 232 g |
| 60-M1-15-12-A | 1 | A | 60 | 15 | 62 | 60 | — | — | 12 | 11.5 Nm | 313 g |
| 72-M1-15-12-A | 1 | A | 72 | 15 | 74 | 72 | — | — | 12 | 17.3 Nm | 460 g |
| 75-M1-15-12-A | 1 | A | 75 | 15 | 77 | 75 | — | — | 12 | 18.4 Nm | 510 g |
| 76-M1-15-12-A | 1 | A | 76 | 15 | 78 | 76 | — | — | 12 | 18.7 Nm | 520 g |
| 80-M1-15-12-A | 1 | A | 80 | 15 | 82 | 80 | — | — | 12 | 20.3 Nm | 580 g |
| 85-M1-15-12-A | 1 | A | 85 | 15 | 87 | 85 | — | — | 12 | 22.3 Nm | 650 g |
| 90-M1-15-12-A | 1 | A | 90 | 15 | 92 | 90 | — | — | 12 | 24.5 Nm | 730 g |
| 95-M1-15-12-A | 1 | A | 95 | 15 | 97 | 95 | — | — | 12 | 26.6 Nm | 820 g |
| 100-M1-15-12-A | 1 | A | 100 | 15 | 102 | 100 | — | — | 12 | 28.9 Nm | 910 g |
| 110-M1-15-12-A | 1 | A | 110 | 15 | 112 | 110 | — | — | 12 | 37.1 Nm | 1.084 kg |
| 114-M1-15-12-A | 1 | A | 114 | 15 | 116 | 114 | — | — | 12 | 38.2 Nm | 1.165 kg |
| 120-M1-15-12-A | 1 | A | 120 | 15 | 122 | 120 | — | — | 12 | 40 Nm | 1.32 kg |
| 127-M1-15-12-A | 1 | A | 127 | 15 | 129 | 127 | — | — | 12 | 42 Nm | 1.47 kg |
| 18-M1.5-17-8-A | 1.5 | A | 18 | 17 | 30 | 27 | — | — | 8 | 1.99 Nm | 68 g |
| 20-M1.5-17-8-A | 1.5 | A | 20 | 17 | 33 | 30 | — | — | 8 | 2.6 Nm | 86 g |
| 24-M1.5-17-10-A | 1.5 | A | 24 | 17 | 39 | 36 | — | — | 10 | 4.02 Nm | 123 g |
| 25-M1.5-17-10-A | 1.5 | A | 25 | 17 | 40.5 | 37.5 | — | — | 10 | 4.38 Nm | 135 g |
| 30-M1.5-17-12-A | 1.5 | A | 30 | 17 | 48 | 45 | — | — | 12 | 6.74 Nm | 195 g |
| 35-M1.5-17-12-A | 1.5 | A | 35 | 17 | 55.5 | 52.5 | — | — | 12 | 9.66 Nm | 270 g |
| 36-M1.5-17-12-A | 1.5 | A | 36 | 17 | 57 | 54 | — | — | 12 | 10.3 Nm | 285 g |
| 40-M1.5-17-12-A | 1.5 | A | 40 | 17 | 63 | 60 | — | — | 12 | 13.2 Nm | 355 g |
| 45-M1.5-17-12-A | 1.5 | A | 45 | 17 | 70.5 | 67.5 | — | — | 12 | 17.3 Nm | 455 g |
| 48-M1.5-17-14-A | 1.5 | A | 48 | 17 | 75 | 72 | — | — | 14 | 20.7 Nm | 510 g |
| 50-M1.5-17-14-A | 1.5 | A | 50 | 17 | 78 | 75 | — | — | 14 | 23.4 Nm | 560 g |
| 60-M1.5-17-16-A | 1.5 | A | 60 | 17 | 93 | 90 | — | — | 16 | 37 Nm | 810 g |
| 72-M1.5-17-16-A | 1.5 | A | 72 | 17 | 111 | 108 | — | — | 16 | 55.8 Nm | 1.19 kg |
| 75-M1.5-17-16-A | 1.5 | A | 75 | 17 | 115.5 | 112.5 | — | — | 16 | 59.3 Nm | 1.3 kg |
| 76-M1.5-17-16-A | 1.5 | A | 76 | 17 | 117 | 114 | — | — | 16 | 60.4 Nm | 1.33 kg |
| 80-M1.5-17-16-A | 1.5 | A | 80 | 17 | 123 | 120 | — | — | 16 | 65.1 Nm | 1.48 kg |
| 85-M1.5-17-16-A | 1.5 | A | 85 | 17 | 130.5 | 127.5 | — | — | 16 | 80.6 Nm | 1.67 kg |
| 90-M1.5-17-16-A | 1.5 | A | 90 | 17 | 138 | 135 | — | — | 16 | 84.8 Nm | 1.88 kg |
| 95-M1.5-17-16-A | 1.5 | A | 95 | 17 | 145.5 | 142.5 | — | — | 16 | 88.9 Nm | 2.09 kg |
| 100-M1.5-17-16-A | 1.5 | A | 100 | 17 | 153 | 150 | — | — | 16 | 92.2 Nm | 2.32 kg |
| 110-M1.5-17-16-A | 1.5 | A | 110 | 17 | 168 | 165 | — | — | 16 | 94.2 Nm | 2.82 kg |
| 114-M1.5-17-16-A | 1.5 | A | 114 | 17 | 174 | 171 | — | — | 16 | 96.2 Nm | 3.03 kg |
| 120-M1.5-17-16-A | 1.5 | A | 120 | 17 | 183 | 180 | — | — | 16 | 100.8 Nm | 3.36 kg |
| 127-M1.5-17-16-A | 1.5 | A | 127 | 17 | 193.5 | 190.5 | — | — | 16 | 107 Nm | 3.77 kg |
| 18-M2-20-10-A | 2 | A | 18 | 20 | 40 | 36 | — | — | 10 | 4.9 Nm | 145 g |
| 20-M2-20-10-A | 2 | A | 20 | 20 | 44 | 40 | — | — | 10 | 6.4 Nm | 180 g |
| 24-M2-20-12-A | 2 | A | 24 | 20 | 52 | 48 | — | — | 12 | 9.9 Nm | 260 g |
| 25-M2-20-12-A | 2 | A | 25 | 20 | 54 | 50 | — | — | 12 | 10.8 Nm | 285 g |
| 30-M2-20-14-A | 2 | A | 30 | 20 | 64 | 60 | — | — | 14 | 16.6 Nm | 410 g |
| 35-M2-20-14-A | 2 | A | 35 | 20 | 74 | 70 | — | — | 14 | 23.8 Nm | 570 g |
| 36-M2-20-14-A | 2 | A | 36 | 20 | 76 | 72 | — | — | 14 | 25.3 Nm | 600 g |
| 40-M2-20-14-A | 2 | A | 40 | 20 | 84 | 80 | — | — | 14 | 32.5 Nm | 750 g |
| 45-M2-20-16-A | 2 | A | 45 | 20 | 94 | 90 | — | — | 16 | 42.7 Nm | 950 g |
| 48-M2-20-16-A | 2 | A | 48 | 20 | 100 | 96 | — | — | 16 | 51 Nm | 1.08 kg |
| 50-M2-20-16-A | 2 | A | 50 | 20 | 104 | 100 | — | — | 16 | 57.6 Nm | 1.18 kg |
| 72-M2-20-16-A | 2 | A | 72 | 20 | 148 | 144 | — | — | 16 | 135 Nm | 2.5 kg |
| 75-M2-20-20-A | 2 | A | 75 | 20 | 154 | 150 | — | — | 20 | 166 Nm | 2.71 kg |
| 76-M2-20-20-A | 2 | A | 76 | 20 | 156 | 152 | — | — | 20 | 168 Nm | 2.79 kg |
| 80-M2-20-20-A | 2 | A | 80 | 20 | 164 | 160 | — | — | 20 | 175 Nm | 3.09 kg |
| 85-M2-20-20-A | 2 | A | 85 | 20 | 174 | 170 | — | — | 20 | 179 Nm | 3.5 kg |
| 90-M2-20-20-A | 2 | A | 90 | 20 | 184 | 180 | — | — | 20 | 180 Nm | 3.93 kg |
| 95-M2-20-20-A | 2 | A | 95 | 20 | 194 | 190 | — | — | 20 | 181 Nm | 4.39 kg |
| 100-M2-20-20-A | 2 | A | 100 | 20 | 204 | 200 | — | — | 20 | 185 Nm | 4.87 kg |
| 110-M2-20-20-A | 2 | A | 110 | 20 | 224 | 220 | — | — | 20 | 201 Nm | 5.9 kg |
| 114-M2-20-20-A | 2 | A | 114 | 20 | 232 | 228 | — | — | 20 | 208 Nm | 6.34 kg |
| 120-M2-20-20-A | 2 | A | 120 | 20 | 244 | 240 | — | — | 20 | 217 Nm | 7.03 kg |
| 127-M2-20-20-A | 2 | A | 127 | 20 | 258 | 254 | — | — | 20 | 235 Nm | 7.89 kg |
| 18-M2.5-25-12-A | 2.5 | A | 18 | 25 | 50 | 45 | — | — | 12 | 10.4 Nm | 280 g |
| 20-M2.5-25-12-A | 2.5 | A | 20 | 25 | 55 | 50 | — | — | 12 | 13.4 Nm | 360 g |
| 22-M2.5-25-14-A | 2.5 | A | 22 | 25 | 60 | 55 | — | — | 14 | 16.9 Nm | 430 g |
| 24-M2.5-25-14-A | 2.5 | A | 24 | 25 | 65 | 60 | — | — | 14 | 20.8 Nm | 510 g |
| 25-M2.5-25-14-A | 2.5 | A | 25 | 25 | 67.5 | 62.5 | — | — | 14 | 22.8 Nm | 560 g |
| 30-M2.5-25-14-A | 2.5 | A | 30 | 25 | 80 | 75 | — | — | 14 | 34.9 Nm | 820 g |
| 40-M2.5-25-16-A | 2.5 | A | 40 | 25 | 105 | 100 | — | — | 16 | 71.2 Nm | 1.47 kg |
| 48-M2.5-25-20-A | 2.5 | A | 48 | 25 | 125 | 120 | — | — | 20 | 120 Nm | 2.12 kg |
| 50-M2.5-25-20-A | 2.5 | A | 50 | 25 | 130 | 125 | — | — | 20 | 135 Nm | 2.3 kg |
| 60-M2.5-25-20-A | 2.5 | A | 60 | 25 | 155 | 150 | — | — | 20 | 217 Nm | 3.34 kg |
| 65-M2.5-25-20-A | 2.5 | A | 65 | 25 | 167.5 | 162.5 | — | — | 20 | 286 Nm | 3.99 kg |
| 70-M2.5-25-20-A | 2.5 | A | 70 | 25 | 180 | 175 | — | — | 20 | 324 Nm | 4.64 kg |
| 72-M2.5-25-20-A | 2.5 | A | 72 | 25 | 185 | 180 | — | — | 20 | 332 Nm | 4.91 kg |
| 75-M2.5-25-20-A | 2.5 | A | 75 | 25 | 192.5 | 187.5 | — | — | 20 | 338 Nm | 5.33 kg |
| 76-M2.5-25-20-A | 2.5 | A | 76 | 25 | 195 | 190 | — | — | 20 | 340 Nm | 5.48 kg |
| 80-M2.5-25-25-A | 2.5 | A | 80 | 25 | 205 | 200 | — | — | 25 | 342 Nm | 6.04 kg |
| 85-M2.5-25-25-A | 2.5 | A | 85 | 25 | 217.5 | 212.5 | — | — | 25 | 346 Nm | 6.84 kg |
| 90-M2.5-25-25-A | 2.5 | A | 90 | 25 | 230 | 225 | — | — | 25 | 348 Nm | 7.68 kg |
| 95-M2.5-25-25-A | 2.5 | A | 95 | 25 | 242.5 | 237.5 | — | — | 25 | 361 Nm | 8.57 kg |
| 100-M2.5-25-25-A | 2.5 | A | 100 | 25 | 255 | 250 | — | — | 25 | 378 Nm | 9.51 kg |
| 110-M2.5-25-25-A | 2.5 | A | 110 | 25 | 280 | 275 | — | — | 25 | 408 Nm | 11.53 kg |
| 114-M2.5-25-25-A | 2.5 | A | 114 | 25 | 290 | 285 | — | — | 25 | 419 Nm | 12.39 kg |
| 120-M2.5-25-25-A | 2.5 | A | 120 | 25 | 305 | 300 | — | — | 25 | 438 Nm | 13.74 kg |
| 127-M2.5-25-25-A | 2.5 | A | 127 | 25 | 322.5 | 317.5 | — | — | 25 | 453 Nm | 15.4 kg |
| 18-M3-30-14-A | 3 | A | 18 | 30 | 60 | 54 | — | — | 14 | 19 Nm | 490 g |
| 20-M3-30-14-A | 3 | A | 20 | 30 | 66 | 60 | — | — | 14 | 24.5 Nm | 620 g |
| 24-M3-30-16-A | 3 | A | 24 | 30 | 78 | 72 | — | — | 16 | 37.6 Nm | 890 g |
| 25-M3-30-16-A | 3 | A | 25 | 30 | 81 | 75 | — | — | 16 | 41.4 Nm | 970 g |
| 30-M3-30-16-A | 3 | A | 30 | 30 | 96 | 90 | — | — | 16 | 63.5 Nm | 1.42 kg |
| 40-M3-30-20-A | 3 | A | 40 | 30 | 126 | 120 | — | — | 20 | 143 Nm | 2.54 kg |
| 48-M3-30-20-A | 3 | A | 48 | 30 | 150 | 144 | — | — | 20 | 232 Nm | 3.69 kg |
| 50-M3-30-20-A | 3 | A | 50 | 30 | 156 | 150 | — | — | 20 | 258 Nm | 4.06 kg |
| 52-M3-30-20-A | 3 | A | 52 | 30 | 162 | 156 | — | — | 20 | 286 Nm | 4.4 kg |
| 55-M3-30-20-A | 3 | A | 55 | 30 | 171 | 165 | — | — | 20 | 331 Nm | 4.93 kg |
| 57-M3-30-20-A | 3 | A | 57 | 30 | 177 | 171 | — | — | 20 | 364 Nm | 5.3 kg |
| 60-M3-30-20-A | 3 | A | 60 | 30 | 186 | 180 | — | — | 20 | 437 Nm | 5.89 kg |
| 65-M3-30-20-A | 3 | A | 65 | 30 | 201 | 195 | — | — | 20 | 531 Nm | 6.92 kg |
| 70-M3-30-25-A | 3 | A | 70 | 30 | 216 | 210 | — | — | 25 | 552 Nm | 8 kg |
| 72-M3-30-25-A | 3 | A | 72 | 30 | 222 | 216 | — | — | 25 | 554 Nm | 8.47 kg |
| 75-M3-30-25-A | 3 | A | 75 | 30 | 231 | 225 | — | — | 25 | 557 Nm | 9.21 kg |
| 76-M3-30-25-A | 3 | A | 76 | 30 | 234 | 228 | — | — | 25 | 559 Nm | 9.46 kg |
| 80-M3-30-25-A | 3 | A | 80 | 30 | 246 | 240 | — | — | 25 | 564 Nm | 10.49 kg |
| 85-M3-30-25-A | 3 | A | 85 | 30 | 261 | 255 | — | — | 25 | 580 Nm | 11.86 kg |
| 90-M3-30-25-A | 3 | A | 90 | 30 | 276 | 270 | — | — | 25 | 610 Nm | 13.32 kg |
| 95-M3-30-25-A | 3 | A | 95 | 30 | 291 | 285 | — | — | 25 | 640 Nm | 14.86 kg |
| 100-M3-30-25-A | 3 | A | 100 | 30 | 306 | 300 | — | — | 25 | 667 Nm | 16.48 kg |
| 110-M3-30-25-A | 3 | A | 110 | 30 | 336 | 330 | — | — | 25 | 705 Nm | 19.97 kg |
| 114-M3-30-30-A | 3 | A | 114 | 30 | 348 | 342 | — | — | 30 | 740 Nm | 21.4 kg |
| 120-M3-30-30-A | 3 | A | 120 | 30 | 366 | 360 | — | — | 30 | 774 Nm | 23.74 kg |
| 127-M3-30-30-A | 3 | A | 127 | 30 | 387 | 381 | — | — | 30 | 800 Nm | 26.61 kg |
| 20-M4-40-16-A | 4 | A | 20 | 40 | 88 | 80 | — | — | 16 | 61 Nm | 1.49 kg |
| 24-M4-40-20-A | 4 | A | 24 | 40 | 104 | 96 | — | — | 20 | 95 Nm | 2.13 kg |
| 25-M4-40-20-A | 4 | A | 25 | 40 | 108 | 100 | — | — | 20 | 109 Nm | 2.32 kg |
| 30-M4-40-20-A | 4 | A | 30 | 40 | 128 | 120 | — | — | 20 | 185 Nm | 3.38 kg |
| 35-M4-40-20-A | 4 | A | 35 | 40 | 148 | 140 | — | — | 20 | 278 Nm | 4.64 kg |
| 36-M4-40-25-A | 4 | A | 36 | 40 | 152 | 144 | — | — | 25 | 299 Nm | 4.86 kg |
| 38-M4-40-25-A | 4 | A | 38 | 40 | 160 | 152 | — | — | 25 | 344 Nm | 5.2 kg |
| 40-M4-40-25-A | 4 | A | 40 | 40 | 168 | 160 | — | — | 25 | 394 Nm | 6.11 kg |
| 45-M4-40-25-A | 4 | A | 45 | 40 | 188 | 180 | — | — | 25 | 536 Nm | 7.78 kg |
| 48-M4-40-25-A | 4 | A | 48 | 40 | 200 | 192 | — | — | 25 | 638 Nm | 8.87 kg |
| 50-M4-40-25-A | 4 | A | 50 | 40 | 208 | 200 | — | — | 25 | 710 Nm | 9.65 kg |
| 52-M4-40-25-A | 4 | A | 52 | 40 | 216 | 208 | — | — | 25 | 795 Nm | 10.45 kg |
| 55-M4-40-25-A | 4 | A | 55 | 40 | 228 | 220 | — | — | 25 | 913 Nm | 11.71 kg |
| 57-M4-40-25-A | 4 | A | 57 | 40 | 236 | 228 | — | — | 25 | 1020 Nm | 12.59 kg |
| 60-M4-40-25-A | 4 | A | 60 | 40 | 248 | 240 | — | — | 25 | 1131 Nm | 13.97 kg |
| 65-M4-40-25-A | 4 | A | 65 | 40 | 268 | 260 | — | — | 25 | 1220 Nm | 16.43 kg |
| 70-M4-40-25-A | 4 | A | 70 | 40 | 288 | 280 | — | — | 25 | 1231 Nm | 19.09 kg |
| 75-M4-40-25-A | 4 | A | 75 | 40 | 308 | 300 | — | — | 25 | 1288 Nm | 21.94 kg |
| 76-M4-40-30-A | 4 | A | 76 | 40 | 312 | 304 | — | — | 30 | 1303 Nm | 22.47 kg |
| 80-M4-40-30-A | 4 | A | 80 | 40 | 328 | 320 | — | — | 30 | 1354 Nm | 24.93 kg |
| 85-M4-40-30-A | 4 | A | 85 | 40 | 348 | 340 | — | — | 30 | 1430 Nm | 28.18 kg |
| 90-M4-40-30-A | 4 | A | 90 | 40 | 368 | 360 | — | — | 30 | 1500 Nm | 31.62 kg |
| 95-M4-40-30-A | 4 | A | 95 | 40 | 388 | 380 | — | — | 30 | 1580 Nm | 35.26 kg |
| 100-M4-40-30-A | 4 | A | 100 | 40 | 408 | 400 | — | — | 30 | 1650 Nm | 39.11 kg |
| 110-M4-40-30-A | 4 | A | 110 | 40 | 448 | 440 | — | — | 30 | 1744 Nm | 47.38 kg |
| 114-M4-40-30-A | 4 | A | 114 | 40 | 464 | 456 | — | — | 30 | 1830 Nm | 50.91 kg |
| 12-M4-40-14-B | 4 | B | 12 | 40 | 56 | 48 | 20 | 35 | 14 | 26 Nm | 630 g |
| 13-M4-40-14-B | 4 | B | 13 | 40 | 60 | 52 | 20 | 40 | 14 | 30 Nm | 780 g |
| 14-M4-40-14-B | 4 | B | 14 | 40 | 64 | 56 | 20 | 45 | 14 | 34 Nm | 930 g |
| 15-M4-40-14-B | 4 | B | 15 | 40 | 68 | 60 | 20 | 45 | 14 | 38 Nm | 1.05 kg |
| 16-M4-40-16-B | 4 | B | 16 | 40 | 72 | 64 | 20 | 50 | 16 | 40 Nm | 1.2 kg |
| 17-M4-40-16-B | 4 | B | 17 | 40 | 76 | 68 | 20 | 50 | 16 | 43 Nm | 1.33 kg |
| 18-M4-40-16-B | 4 | B | 18 | 40 | 80 | 72 | 20 | 50 | 16 | 48 Nm | 1.47 kg |
| 19-M4-40-16-B | 4 | B | 19 | 40 | 84 | 76 | 20 | 60 | 16 | 54 Nm | 1.75 kg |
| 20-M4-40-16-B | 4 | B | 20 | 40 | 88 | 80 | 20 | 60 | 16 | 61 Nm | 1.9 kg |
| 21-M4-40-16-B | 4 | B | 21 | 40 | 92 | 84 | 20 | 70 | 16 | 69 Nm | 2.22 kg |
| 22-M4-40-16-B | 4 | B | 22 | 40 | 96 | 88 | 20 | 70 | 16 | 78 Nm | 2.39 kg |
| 23-M4-40-20-B | 4 | B | 23 | 40 | 100 | 92 | 20 | 75 | 20 | 86 Nm | 2.6 kg |
| 24-M4-40-20-B | 4 | B | 24 | 40 | 104 | 96 | 20 | 75 | 20 | 95 Nm | 2.79 kg |
| 25-M4-40-20-B | 4 | B | 25 | 40 | 108 | 100 | 20 | 75 | 20 | 109 Nm | 2.98 kg |
| 26-M4-40-20-B | 4 | B | 26 | 40 | 112 | 104 | 20 | 75 | 20 | 121 Nm | 3.18 kg |
| 27-M4-40-20-B | 4 | B | 27 | 40 | 116 | 108 | 20 | 75 | 20 | 136 Nm | 3.39 kg |
| 28-M4-40-20-B | 4 | B | 28 | 40 | 120 | 112 | 20 | 75 | 20 | 153 Nm | 3.6 kg |
| 29-M4-40-20-B | 4 | B | 29 | 40 | 124 | 116 | 20 | 75 | 20 | 171 Nm | 3.83 kg |
| 30-M4-40-20-B | 4 | B | 30 | 40 | 128 | 120 | 20 | 75 | 20 | 185 Nm | 4.06 kg |
| 31-M4-40-20-B | 4 | B | 31 | 40 | 132 | 124 | 20 | 80 | 20 | 205 Nm | 4.39 kg |
| 32-M4-40-20-B | 4 | B | 32 | 40 | 136 | 128 | 20 | 80 | 20 | 220 Nm | 4.64 kg |
| 33-M4-40-20-B | 4 | B | 33 | 40 | 140 | 132 | 20 | 80 | 20 | 248 Nm | 4.9 kg |
| 34-M4-40-20-B | 4 | B | 34 | 40 | 144 | 136 | 20 | 80 | 20 | 264 Nm | 5.16 kg |
| 35-M4-40-20-B | 4 | B | 35 | 40 | 148 | 140 | 20 | 80 | 20 | 278 Nm | 5.43 kg |
| 36-M4-40-25-B | 4 | B | 36 | 40 | 152 | 144 | 20 | 80 | 25 | 299 Nm | 5.63 kg |
| 38-M4-40-25-B | 4 | B | 38 | 40 | 160 | 152 | 20 | 80 | 25 | 344 Nm | 6.14 kg |
| 40-M4-40-25-B | 4 | B | 40 | 40 | 168 | 160 | 20 | 80 | 25 | 394 Nm | 6.74 kg |
| 50-M4-40-25-B | 4 | B | 50 | 40 | 208 | 200 | 20 | 100 | 25 | 710 Nm | 10.66 kg |
| 60-M4-40-25-B | 4 | B | 60 | 40 | 248 | 240 | 20 | 100 | 25 | 1131 Nm | 14.92 kg |
| 90-M4-40-30-B | 4 | B | 90 | 40 | 368 | 360 | 20 | 120 | 30 | 1500 Nm | 32.76 kg |
| Model Code | Pitch p | Module m | Teeth z | Bore D1 mm | DK mm | Do mm | D mm | L mm | L1 mm | L2 mm | T mm | U mm | Backlash mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1M-20-12 | 3.141 | 1 | 20 | 12 | 22 | 20 | 17 | 20 | 5 | 15 | 13.8 | 4 | 0.08~0.16 |
| 1M-25-12 | 3.141 | 1 | 25 | 12 | 27 | 25 | 20 | 20 | 5 | 15 | 13.8 | 4 | 0.08~0.16 |
| 1M-30-15 | 3.141 | 1 | 30 | 15 | 32 | 30 | 25 | 20 | 5 | 15 | 16.8 | 4 | 0.08~0.16 |
| 1M-35-15 | 3.141 | 1 | 35 | 15 | 37 | 35 | 30 | 20 | 5 | 15 | 17.3 | 5 | 0.08~0.16 |
| 1.5M-25-16 | 4.712 | 1.5 | 25 | 16 | 40.5 | 37.5 | 30 | 46 | 26 | 20 | 18.3 | 5 | 0.08~0.16 |
| 1.5M-32-22 | 4.712 | 1.5 | 32 | 22 | 51 | 48 | 36 | 48 | 28 | 20 | 24.8 | 6 | 0.10~0.18 |
| 1.5M-40-22 | 4.712 | 1.5 | 40 | 22 | 63 | 60 | 36 | 48 | 28 | 20 | 24.8 | 6 | 0.10~0.20 |
| 2M-25-16 | 6.283 | 2 | 25 | 16 | 54 | 50 | 30 | 54 | 26 | 28 | 18.3 | 5 | 0.10~0.20 |
| 2M-25-22 | 6.283 | 2 | 25 | 22 | 54 | 50 | 36 | 56 | 28 | 28 | 24.8 | 6 | 0.10~0.20 |
| 2M-28-30 | 6.283 | 2 | 28 | 30 | 60 | 56 | 50 | 60 | 32 | 28 | 33.3 | 8 | 0.12~0.22 |
| 2M-32-16 | 6.283 | 2 | 32 | 16 | 68 | 64 | 30 | 54 | 26 | 28 | 18.3 | 5 | 0.12~0.22 |
| 2M-32-22 | 6.283 | 2 | 32 | 22 | 68 | 64 | 36 | 56 | 28 | 28 | 24.8 | 6 | 0.12~0.22 |
| 2M-32-32 | 6.283 | 2 | 32 | 32 | 68 | 64 | 55 | 65 | 37 | 28 | 35.3 | 10 | 0.12~0.22 |
| 2M-36-40 | 6.283 | 2 | 36 | 40 | 76 | 72 | 62 | 65 | 37 | 28 | 43.3 | 12 | 0.12~0.22 |
| 2M-40-32 | 6.283 | 2 | 40 | 32 | 84 | 80 | 55 | 65 | 37 | 28 | 35.3 | 10 | 0.12~0.22 |
| 2M-50-45 | 6.283 | 2 | 50 | 45 | 104 | 100 | 68 | 65 | 37 | 28 | 48.8 | 14 | 0.12~0.22 |
| 2.5M-22-22 | 7.854 | 2.5 | 22 | 22 | 60 | 55 | 36 | 56 | 28 | 28 | 24.8 | 16 | 0.12~0.22 |
| 2.5M-28-32 | 7.854 | 2.5 | 28 | 32 | 75 | 70 | 55 | 65 | 37 | 28 | 35.3 | 10 | 0.12~0.22 |
| 2.5M-36-40 | 7.854 | 2.5 | 36 | 40 | 95 | 90 | 62 | 65 | 37 | 28 | 43.3 | 12 | 0.12~0.22 |
| 3M-22-22 | 9.425 | 3 | 22 | 22 | 72 | 66 | 36 | 56 | 28 | 28 | 24.8 | 6 | 0.12~0.22 |
| 3M-22-32 | 9.425 | 3 | 22 | 32 | 72 | 66 | 55 | 65 | 37 | 28 | 35.3 | 10 | 0.12~0.22 |
| 3M-25-40 | 9.425 | 3 | 25 | 40 | 81 | 75 | 62 | 65 | 37 | 28 | 43.3 | 12 | 0.12~0.22 |
| 3M-28-22 | 9.425 | 3 | 28 | 22 | 90 | 84 | 36 | 56 | 28 | 28 | 24.8 | 6 | 0.12~0.22 |
| 3M-28-32 | 9.425 | 3 | 28 | 32 | 90 | 84 | 55 | 65 | 37 | 28 | 35.3 | 10 | 0.12~0.22 |
| 3M-32-40 | 9.425 | 3 | 32 | 40 | 102 | 96 | 62 | 65 | 37 | 28 | 43.3 | 12 | 0.12~0.22 |
| 3M-36-45 | 9.425 | 3 | 36 | 45 | 114 | 108 | 68 | 65 | 37 | 28 | 48.8 | 14 | 0.14~0.24 |
| 4M-20-32 | 12.566 | 4 | 20 | 32 | 88 | 80 | 55 | 75 | 35 | 40 | 35.3 | 10 | 0.14~0.24 |
| 4M-20-35 | 12.566 | 4 | 20 | 35 | 88 | 80 | 55 | 75 | 35 | 40 | 38.3 | 10 | 0.14~0.24 |
| 4M-22-45 | 12.566 | 4 | 22 | 45 | 96 | 88 | 68 | 75 | 35 | 40 | 48.8 | 14 | 0.14~0.24 |
| 4M-25-32 | 12.566 | 4 | 25 | 32 | 108 | 100 | 55 | 75 | 35 | 40 | 35.3 | 10 | 0.14~0.24 |
| 4M-25-35 | 12.566 | 4 | 25 | 35 | 108 | 100 | 55 | 75 | 35 | 40 | 38.3 | 10 | 0.14~0.24 |
| 4M-25-55 | 12.566 | 4 | 25 | 55 | 108 | 100 | 80 | 80 | 40 | 40 | 59.3 | 16 | 0.14~0.24 |
| 4M-28-45 | 12.566 | 4 | 28 | 45 | 120 | 112 | 68 | 75 | 35 | 40 | 48.8 | 14 | 0.14~0.24 |
| 4M-32-55 | 12.566 | 4 | 32 | 55 | 136 | 128 | 80 | 80 | 40 | 40 | 59.3 | 16 | 0.16~0.26 |
| 4M-40-75 | 12.566 | 4 | 40 | 75 | 168 | 160 | 110 | 100 | 60 | 40 | 79.9 | 20 | 0.16~0.26 |
| 5M-21-45 | 15.708 | 5 | 21 | 45 | 115 | 105 | 68 | 85 | 35 | 50 | 48.8 | 14 | 0.16~0.26 |
| 5M-25-45 | 15.708 | 5 | 25 | 45 | 135 | 125 | 68 | 85 | 35 | 50 | 48.8 | 14 | 0.16~0.26 |
| 5M-25-55 | 15.708 | 5 | 25 | 55 | 135 | 125 | 80 | 90 | 40 | 50 | 59.3 | 16 | 0.16~0.26 |
| 6M-21-55 | 18.85 | 6 | 21 | 55 | 138 | 126 | 80 | 100 | 40 | 60 | 59.3 | 16 | 0.16~0.26 |
| 6M-25-75 | 18.85 | 6 | 25 | 75 | 162 | 150 | 110 | 120 | 60 | 60 | 79.9 | 20 | 0.18~0.26 |
Static copy of the selector data for reference and printing; use the interactive selector above to filter, sort and request a quote. All dimensions in mm; full range and tolerances per the PDF catalogue.
Click a column header to sort. Source: Wolfer spur gear catalogue (19 pages); 4 misprints in the original catalogue corrected via gear geometry d = m·z, da = m·(z+2). Download PDF catalogue ↗
