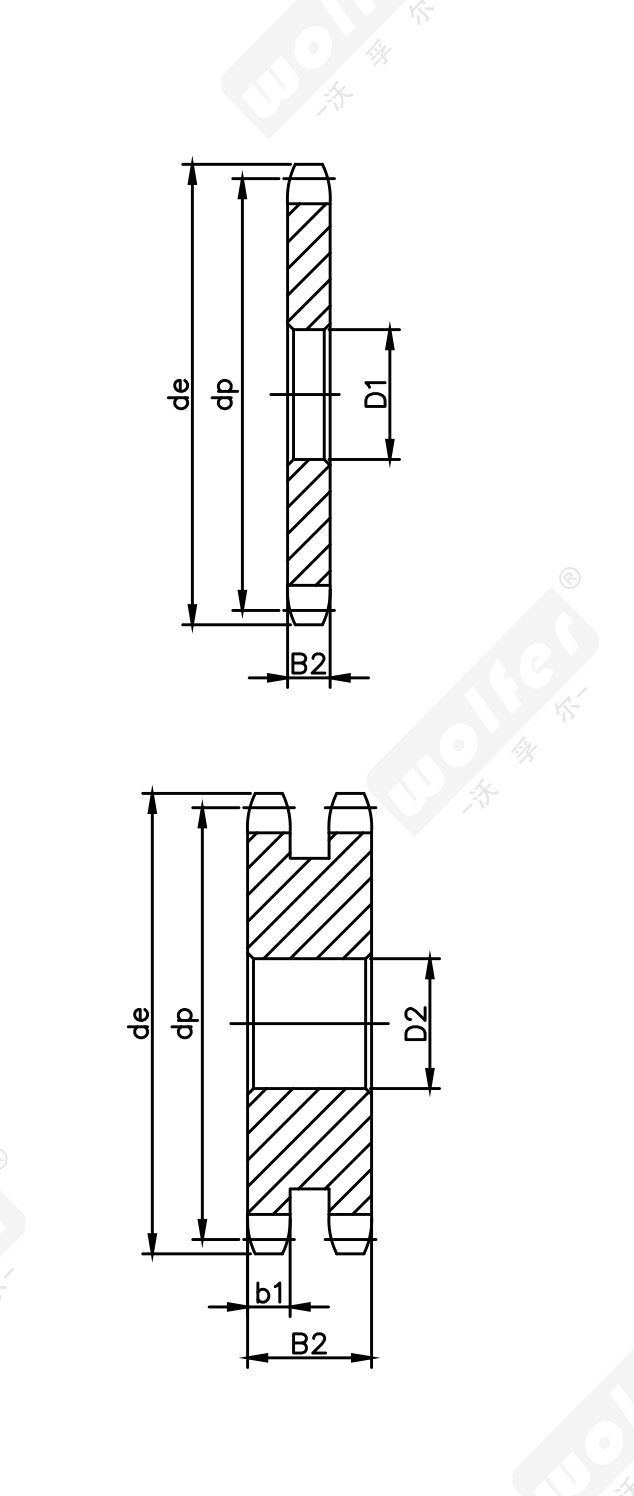

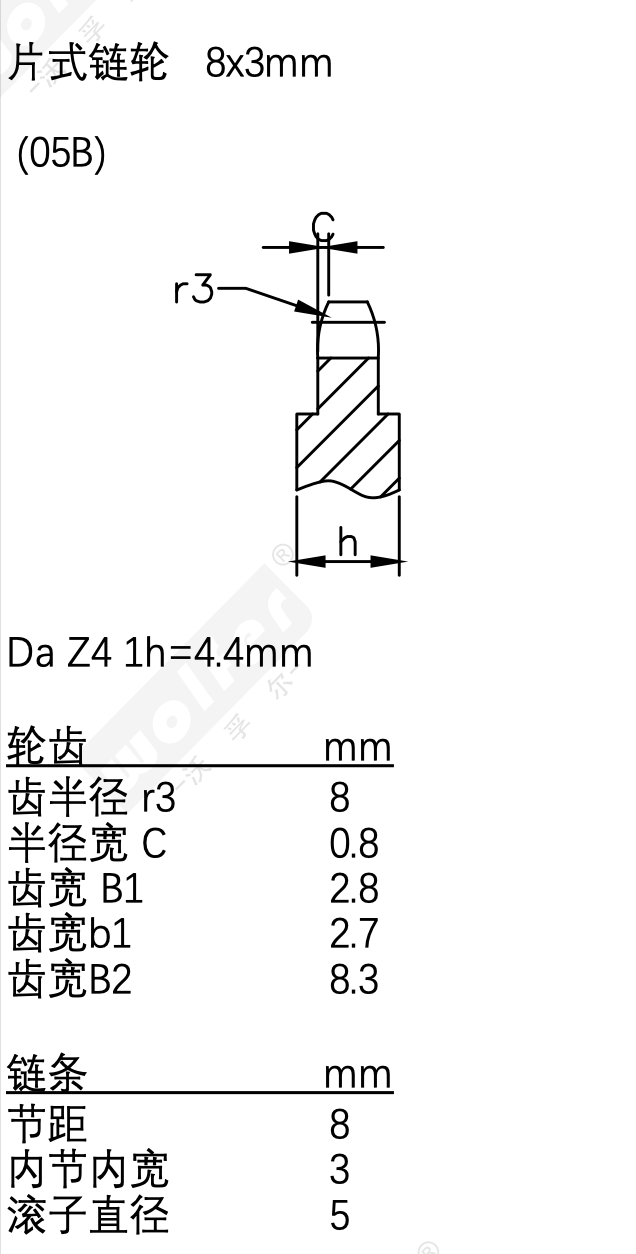

无毂平板式链轮，结构轻薄、成本低，可焊接或螺接到法兰 / 轮毂上。下表按链号给出齿数与 D1 / D2 / D3安装尺寸；左右两栏对应不同链号。
最近更新 审核人：罗根文（生产工厂主管）
规格选型 · Specifications
完整收录产品样本 PDF 的全部 709 种标准规格，覆盖 10 种链号。顶部按链号切换，可搜索型号或按齿数筛选。所有尺寸单位均为毫米。
按链号选择
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 05B-8Z | 8 | 23.4 | 20.9 | 6 | 6 | — |
| 05B-9Z | 9 | 25.9 | 23.39 | 6 | 6 | — |
| 05B-10Z | 10 | 28.4 | 25.89 | 8 | 8 | — |
| 05B-11Z | 11 | 31 | 28.39 | 8 | 8 | — |
| 05B-12Z | 12 | 33.7 | 30.91 | 8 | 8 | — |
| 05B-13Z | 13 | 36.7 | 33.42 | 8 | 8 | — |
| 05B-14Z | 14 | 39.2 | 35.95 | 8 | 8 | — |
| 05B-15Z | 15 | 41.7 | 38.48 | 8 | 8 | — |
| 05B-16Z | 16 | 44.2 | 41.01 | 8 | 10 | — |
| 05B-17Z | 17 | 46.7 | 43.53 | 8 | 10 | — |
| 05B-18Z | 18 | 49.2 | 46.07 | 8 | 10 | — |
| 05B-19Z | 19 | 51.7 | 48.61 | 8 | 10 | — |
| 05B-20Z | 20 | 54.2 | 51.14 | 8 | 10 | — |
| 05B-21Z | 21 | 57.2 | 53.67 | 8 | 10 | — |
| 05B-22Z | 22 | 59.4 | 56.21 | 8 | 10 | — |
| 05B-23Z | 23 | 62.2 | 58.75 | 8 | 10 | — |
| 05B-24Z | 24 | 64.7 | 61.29 | 8 | 10 | — |
| 05B-25Z | 25 | 67.2 | 63.83 | 8 | 10 | — |
| 05B-26Z | 26 | 69.7 | 66.37 | 10 | 12 | — |
| 05B-27Z | 27 | 72.3 | 68.91 | 10 | 12 | — |
| 05B-28Z | 28 | 74.7 | 71.45 | 10 | 12 | — |
| 05B-29Z | 29 | 77.2 | 73.99 | 10 | 12 | — |
| 05B-30Z | 30 | 80.2 | 76.53 | 10 | 12 | — |
| 05B-31Z | 31 | 82.2 | 79.08 | 10 | 12 | — |
| 05B-32Z | 32 | 85.2 | 81.61 | 10 | 12 | — |
| 05B-33Z | 33 | 87.7 | 84.16 | 10 | 12 | — |
| 05B-34Z | 34 | 90.2 | 86.7 | 10 | 12 | — |
| 05B-35Z | 35 | 92.7 | 89.24 | 10 | 12 | — |
| 05B-36Z | 36 | 95.2 | 91.79 | 10 | 12 | — |
| 05B-37Z | 37 | 97.7 | 94.33 | 10 | 12 | — |
| 05B-38Z | 38 | 100.2 | 96.88 | 10 | 12 | — |
| 05B-39Z | 39 | 102.7 | 99.42 | 10 | 12 | — |
| 05B-40Z | 40 | 105.2 | 101.97 | 10 | 12 | — |
| 05B-41Z | 41 | 108.4 | 104.51 | 12 | 14 | — |
| 05B-42Z | 42 | 111 | 107.05 | 12 | 14 | — |
| 05B-43Z | 43 | 113.5 | 109.6 | 12 | 14 | — |
| 05B-44Z | 44 | 116.1 | 112.14 | 12 | 14 | — |
| 05B-45Z | 45 | 118.6 | 114.69 | 12 | 14 | — |
| 05B-46Z | 46 | 121.2 | 117.23 | 12 | 14 | — |
| 05B-47Z | 47 | 123.7 | 119.77 | 12 | 14 | — |
| 05B-48Z | 48 | 126.4 | 122.32 | 12 | 14 | — |
| 05B-49Z | 49 | 128.9 | 124.86 | 12 | 14 | — |
| 05B-50Z | 50 | 131.5 | 127.41 | 12 | 14 | — |
| 05B-51Z | 51 | 134 | 129.95 | 14 | 16 | — |
| 05B-52Z | 52 | 136.6 | 132.49 | 14 | 16 | — |
| 05B-53Z | 53 | 139.1 | 135.04 | 14 | 16 | — |
| 05B-54Z | 54 | 141.7 | 137.59 | 14 | 16 | — |
| 05B-55Z | 55 | 144.2 | 140.13 | 14 | 16 | — |
| 05B-56Z | 56 | 146.8 | 142.68 | 14 | 16 | — |
| 05B-57Z | 57 | 149.3 | 145.22 | 14 | 16 | — |
| 05B-58Z | 58 | 151.9 | 147.77 | 14 | 16 | — |
| 05B-59Z | 59 | 154.5 | 150.31 | 14 | 16 | — |
| 05B-60Z | 60 | 157.1 | 152.85 | 14 | 16 | — |
| 05B-62Z | 62 | 162.2 | 157.95 | 16 | 20 | — |
| 05B-64Z | 64 | 167.3 | 163.04 | 16 | 20 | — |
| 05B-65Z | 65 | 169.8 | 165.58 | 16 | 20 | — |
| 05B-66Z | 66 | 172.4 | 168.13 | 16 | 20 | — |
| 05B-68Z | 68 | 177.5 | 173.22 | 16 | 20 | — |
| 05B-70Z | 70 | 182.6 | 178.31 | 20 | 20 | — |
| 05B-72Z | 72 | 187.7 | 183.41 | 20 | 20 | — |
| 05B-75Z | 75 | 195.3 | 191.04 | 20 | 20 | — |
| 05B-76Z | 76 | 197.9 | 193.59 | 20 | 20 | — |
| 05B-78Z | 78 | 203 | 198.68 | 20 | 20 | — |
| 05B-80Z | 80 | 208.1 | 203.77 | 20 | 20 | — |
| 05B-85Z | 85 | 220.8 | 216.5 | 20 | 20 | — |
| 05B-90Z | 90 | 233.6 | 229.23 | 20 | 20 | — |
| 05B-95Z | 95 | 246.3 | 241.96 | 20 | 20 | — |
| 05B-100Z | 100 | 259.1 | 254.68 | 20 | 20 | — |
| 05B-110Z | 110 | 284.6 | 280.15 | 20 | 20 | — |
| 05B-114Z | 114 | 294.8 | 290.33 | 20 | 20 | — |
| 05B-120Z | 120 | 301.1 | 305.61 | 20 | 20 | — |
| 05B-125Z | 125 | 322.8 | 318.34 | 20 | 20 | — |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 06B-8Z | 8 | 28.6 | 24.89 | 6 | 6 | 6 |
| 06B-9Z | 9 | 31.5 | 27.85 | 8 | 8 | 6 |
| 06B-10Z | 10 | 34.5 | 30.82 | 8 | 8 | 10 |
| 06B-11Z | 11 | 37.5 | 33.8 | 8 | 10 | 10 |
| 06B-12Z | 12 | 40.5 | 36.8 | 8 | 10 | 10 |
| 06B-13Z | 13 | 43.5 | 39.8 | 8 | 10 | 10 |
| 06B-14Z | 14 | 46.5 | 42.8 | 8 | 10 | 12 |
| 06B-15Z | 15 | 49.5 | 45.81 | 8 | 10 | 12 |
| 06B-16Z | 16 | 52.5 | 48.82 | 10 | 12 | 12 |
| 06B-17Z | 17 | 55.5 | 51.83 | 10 | 12 | 12 |
| 06B-18Z | 18 | 58.5 | 54.85 | 10 | 12 | 12 |
| 06B-19Z | 19 | 61.6 | 57.87 | 10 | 12 | 12 |
| 06B-20Z | 20 | 64.6 | 60.89 | 10 | 12 | 12 |
| 06B-21Z | 21 | 67.6 | 63.91 | 10 | 12 | 14 |
| 06B-22Z | 22 | 70.6 | 66.93 | 10 | 12 | 14 |
| 06B-23Z | 23 | 73.7 | 69.95 | 10 | 12 | 14 |
| 06B-24Z | 24 | 76.7 | 72.97 | 10 | 12 | 14 |
| 06B-25Z | 25 | 79.7 | 76 | 10 | 12 | 14 |
| 06B-26Z | 26 | 82.7 | 79.02 | 10 | 12 | 14 |
| 06B-27Z | 27 | 85.7 | 82.04 | 10 | 12 | 14 |
| 06B-28Z | 28 | 88.8 | 85.07 | 10 | 12 | 14 |
| 06B-29Z | 29 | 91.8 | 88.09 | 10 | 12 | 14 |
| 06B-30Z | 30 | 94.8 | 91.12 | 10 | 12 | 14 |
| 06B-31Z | 31 | 97.9 | 94.15 | 12 | 14 | 16 |
| 06B-32Z | 32 | 100.9 | 97.17 | 12 | 14 | 16 |
| 06B-33Z | 33 | 103.9 | 100.2 | 12 | 14 | 16 |
| 06B-34Z | 34 | 106.9 | 103.23 | 12 | 14 | 16 |
| 06B-35Z | 35 | 110 | 106.26 | 12 | 14 | 16 |
| 06B-36Z | 36 | 113 | 109.29 | 12 | 14 | 16 |
| 06B-37Z | 37 | 116 | 112.32 | 12 | 14 | 16 |
| 06B-38Z | 38 | 119 | 115.34 | 12 | 14 | 16 |
| 06B-39Z | 39 | 122.1 | 118.37 | 12 | 14 | 16 |
| 06B-40Z | 40 | 125.1 | 121.4 | 12 | 14 | 16 |
| 06B-41Z | 41 | 129 | 124.43 | 16 | 16 | 16 |
| 06B-42Z | 42 | 132.1 | 127.46 | 16 | 16 | 16 |
| 06B-43Z | 43 | 135.1 | 130.49 | 16 | 16 | 16 |
| 06B-44Z | 44 | 138.1 | 133.52 | 16 | 16 | 16 |
| 06B-45Z | 45 | 141.1 | 136.54 | 16 | 16 | 16 |
| 06B-46Z | 46 | 144.2 | 139.58 | 16 | 16 | 16 |
| 06B-47Z | 47 | 147.2 | 142.61 | 16 | 16 | 16 |
| 06B-48Z | 48 | 150.2 | 145.64 | 16 | 16 | 16 |
| 06B-49Z | 49 | 153.3 | 148.66 | 16 | 16 | 16 |
| 06B-50Z | 50 | 156.3 | 151.69 | 16 | 16 | 16 |
| 06B-51Z | 51 | 159.3 | 154.72 | 16 | 16 | 20 |
| 06B-52Z | 52 | 162.4 | 157.75 | 16 | 16 | 20 |
| 06B-53Z | 53 | 165.4 | 160.78 | 16 | 16 | 20 |
| 06B-54Z | 54 | 168.4 | 163.82 | 16 | 16 | 20 |
| 06B-55Z | 55 | 171.4 | 166.85 | 16 | 16 | 20 |
| 06B-56Z | 56 | 174.5 | 169.88 | 16 | 16 | 20 |
| 06B-57Z | 57 | 177.5 | 172.91 | 16 | 16 | 20 |
| 06B-58Z | 58 | 180.5 | 175.93 | 16 | 16 | 20 |
| 06B-59Z | 59 | 183.6 | 178.96 | 16 | 16 | 20 |
| 06B-60Z | 60 | 186.6 | 181.99 | 16 | 16 | 20 |
| 06B-62Z | 62 | 192.7 | 188.06 | 20 | 20 | 20 |
| 06B-64Z | 64 | 198.7 | 194.12 | 20 | 20 | 20 |
| 06B-65Z | 65 | 201.8 | 197.15 | 20 | 20 | 20 |
| 06B-66Z | 66 | 204.8 | 200.18 | 20 | 20 | 25 |
| 06B-68Z | 68 | 210.8 | 206.24 | 20 | 20 | 25 |
| 06B-70Z | 70 | 216.9 | 212.3 | 20 | 20 | 25 |
| 06B-72Z | 72 | 223 | 218.37 | 20 | 20 | 25 |
| 06B-75Z | 75 | 232.1 | 227.46 | 20 | 20 | 25 |
| 06B-76Z | 76 | 235.1 | 230.49 | 20 | 20 | 25 |
| 06B-78Z | 78 | 241.2 | 236.55 | 20 | 20 | 25 |
| 06B-80Z | 80 | 247.2 | 242.61 | 20 | 20 | 25 |
| 06B-85Z | 85 | 262.4 | 257.77 | 20 | 20 | 25 |
| 06B-90Z | 90 | 277.5 | 272.93 | 20 | 20 | 25 |
| 06B-95Z | 95 | 292.7 | 288.08 | 20 | 20 | 25 |
| 06B-100Z | 100 | 307.8 | 303.25 | 20 | 20 | 25 |
| 06B-110Z | 110 | 338.2 | 333.55 | 20 | 20 | 25 |
| 06B-114Z | 114 | 350.3 | 345.68 | 20 | 20 | 25 |
| 06B-120Z | 120 | 368.5 | 363.86 | 20 | 20 | 25 |
| 06B-125Z | 125 | 383.6 | 379.02 | 20 | 20 | 25 |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 081-8Z | 8 | 39.5 | 53.18 | 8 | — | — |
| 081-9Z | 9 | 43.4 | 37.13 | 8 | — | — |
| 081-10Z | 10 | 47.4 | 41.1 | 8 | — | — |
| 081-11Z | 11 | 51.4 | 45.07 | 8 | — | — |
| 081-12Z | 12 | 55.4 | 49.07 | 8 | — | — |
| 081-13Z | 13 | 59.4 | 53.06 | 8 | — | — |
| 081-14Z | 14 | 63.4 | 57.07 | 8 | — | — |
| 081-15Z | 15 | 67.4 | 61.09 | 8 | — | — |
| 081-16Z | 16 | 71.4 | 65.1 | 10 | — | — |
| 081-17Z | 17 | 75.4 | 69.11 | 10 | — | — |
| 081-18Z | 18 | 79.4 | 73.14 | 10 | — | — |
| 081-19Z | 19 | 83.5 | 77.16 | 10 | — | — |
| 081-20Z | 20 | 87.5 | 81.19 | 10 | — | — |
| 081-21Z | 21 | 91.5 | 85.22 | 10 | — | — |
| 081-22Z | 22 | 95.5 | 89.24 | 10 | — | — |
| 081-23Z | 23 | 99.6 | 93.27 | 10 | — | — |
| 081-24Z | 24 | 103.6 | 97.29 | 10 | — | — |
| 081-25Z | 25 | 107.6 | 101.33 | 10 | — | — |
| 081-26Z | 26 | 111.7 | 105.36 | 12 | — | — |
| 081-27Z | 27 | 115.7 | 109.4 | 12 | — | — |
| 081-28Z | 28 | 119.7 | 113.42 | 12 | — | — |
| 081-29Z | 29 | 123.8 | 117.46 | 12 | — | — |
| 081-30Z | 30 | 127.8 | 121.5 | 12 | — | — |
| 081-31Z | 31 | 131.8 | 125.54 | 12 | — | — |
| 081-32Z | 32 | 135.9 | 129.56 | 12 | — | — |
| 081-33Z | 33 | 139.9 | 133.6 | 12 | — | — |
| 081-34Z | 34 | 143.9 | 137.64 | 12 | — | — |
| 081-35Z | 35 | 148 | 141.68 | 12 | — | — |
| 081-36Z | 36 | 152 | 145.72 | 16 | — | — |
| 081-37Z | 37 | 156.1 | 149.76 | 16 | — | — |
| 081-38Z | 38 | 160.1 | 153.8 | 16 | — | — |
| 081-39Z | 39 | 164.1 | 157.83 | 16 | — | — |
| 081-40Z | 40 | 168.2 | 161.87 | 16 | — | — |
| 081-41Z | 41 | 172.7 | 165.91 | 16 | — | — |
| 081-42Z | 42 | 176.7 | 169.95 | 16 | — | — |
| 081-43Z | 43 | 180.8 | 173.99 | 16 | — | — |
| 081-44Z | 44 | 184.8 | 178.03 | 16 | — | — |
| 081-45Z | 45 | 188.9 | 182.07 | 16 | — | — |
| 081-46Z | 46 | 192.9 | 186.1 | 20 | — | — |
| 081-47Z | 47 | 196.9 | 190.14 | 20 | — | — |
| 081-48Z | 48 | 201 | 194.18 | 20 | — | — |
| 081-49Z | 49 | 205 | 198.22 | 20 | — | — |
| 081-50Z | 50 | 209.1 | 202.26 | 20 | — | — |
| 081-51Z | 51 | 213.1 | 206.3 | 20 | — | — |
| 081-52Z | 52 | 217.1 | 210.34 | 20 | — | — |
| 081-53Z | 53 | 221.2 | 214.37 | 20 | — | — |
| 081-54Z | 54 | 225.2 | 218.43 | 20 | — | — |
| 081-55Z | 55 | 229.3 | 222.46 | 20 | — | — |
| 081-56Z | 56 | 233.3 | 226.5 | 20 | — | — |
| 081-57Z | 57 | 237.3 | 230.54 | 20 | — | — |
| 081-58Z | 58 | 241.4 | 234.58 | 20 | — | — |
| 081-59Z | 59 | 245.4 | 238.62 | 20 | — | — |
| 081-60Z | 60 | 249.5 | 242.66 | 20 | — | — |
| 081-62Z | 62 | 257.5 | 250.75 | 20 | — | — |
| 081-64Z | 64 | 256.6 | 258.82 | 20 | — | — |
| 081-65Z | 65 | 269.7 | 262.86 | 20 | — | — |
| 081-66Z | 66 | 273.7 | 266.9 | 25 | — | — |
| 081-68Z | 68 | 281.8 | 274.99 | 25 | — | — |
| 081-70Z | 70 | 289.9 | 283.07 | 25 | — | — |
| 081-72Z | 72 | 298 | 291.16 | 25 | — | — |
| 081-75Z | 75 | 310.1 | 303.27 | 25 | — | — |
| 081-76Z | 76 | 314.1 | 307.33 | 25 | — | — |
| 081-78Z | 78 | 322.2 | 315.4 | 25 | — | — |
| 081-80Z | 80 | 330.3 | 323.48 | 25 | — | — |
| 081-85Z | 85 | 350.5 | 343.69 | 25 | — | — |
| 081-90Z | 90 | 370.7 | 363.9 | 25 | — | — |
| 081-95Z | 95 | 390.9 | 384.11 | 25 | — | — |
| 081-100Z | 100 | 411.1 | 404.31 | 25 | — | — |
| 081-110Z | 110 | 451.5 | 444.74 | 25 | — | — |
| 081-114Z | 114 | 467.7 | 460.9 | 25 | — | — |
| 081-120Z | 120 | 492 | 485.16 | 25 | — | — |
| 081-125Z | 125 | 512.2 | 505.37 | 25 | — | — |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 083-8Z | 8 | 39.5 | 33.18 | 8 | — | — |
| 083-9Z | 9 | 43.4 | 37.13 | 8 | — | — |
| 083-10Z | 10 | 47.4 | 41.1 | 8 | — | — |
| 083-11Z | 11 | 51.4 | 45.07 | 8 | — | — |
| 083-12Z | 12 | 55.4 | 49.07 | 8 | — | — |
| 083-13Z | 13 | 59.4 | 53.06 | 8 | — | — |
| 083-14Z | 14 | 63.4 | 57.07 | 8 | — | — |
| 083-15Z | 15 | 67.4 | 61.09 | 8 | — | — |
| 083-16Z | 16 | 71.4 | 65.1 | 10 | — | — |
| 083-17Z | 17 | 75.4 | 69.11 | 10 | — | — |
| 083-18Z | 18 | 79.4 | 73.14 | 10 | — | — |
| 083-19Z | 19 | 83.5 | 77.16 | 10 | — | — |
| 083-20Z | 20 | 87.5 | 81.19 | 10 | — | — |
| 083-21Z | 21 | 91.5 | 85.22 | 10 | — | — |
| 083-22Z | 22 | 95.5 | 89.24 | 10 | — | — |
| 083-23Z | 23 | 99.6 | 93.27 | 10 | — | — |
| 083-24Z | 24 | 103.6 | 97.29 | 10 | — | — |
| 083-25Z | 25 | 107.6 | 101.33 | 10 | — | — |
| 083-26Z | 26 | 111.7 | 105.36 | 12 | — | — |
| 083-27Z | 27 | 115.7 | 109.4 | 12 | — | — |
| 083-28Z | 28 | 119.7 | 113.42 | 12 | — | — |
| 083-29Z | 29 | 123.8 | 117.46 | 12 | — | — |
| 083-30Z | 30 | 127.8 | 121.5 | 12 | — | — |
| 083-31Z | 31 | 131.8 | 125.54 | 12 | — | — |
| 083-32Z | 32 | 135.9 | 129.56 | 12 | — | — |
| 083-33Z | 33 | 139.9 | 133.6 | 12 | — | — |
| 083-34Z | 34 | 143.9 | 137.64 | 12 | — | — |
| 083-35Z | 35 | 148 | 141.68 | 12 | — | — |
| 083-36Z | 36 | 152 | 145.72 | 16 | — | — |
| 083-37Z | 37 | 156.1 | 149.76 | 16 | — | — |
| 083-38Z | 38 | 160.1 | 153.8 | 16 | — | — |
| 083-39Z | 39 | 164.1 | 157.83 | 16 | — | — |
| 083-40Z | 40 | 168.2 | 161.87 | 16 | — | — |
| 083-41Z | 41 | 172.7 | 165.91 | 16 | — | — |
| 083-42Z | 42 | 176.7 | 169.95 | 16 | — | — |
| 083-43Z | 43 | 180.8 | 173.99 | 16 | — | — |
| 083-44Z | 44 | 184.8 | 178.03 | 16 | — | — |
| 083-45Z | 45 | 188.9 | 182.07 | 16 | — | — |
| 083-46Z | 46 | 192.9 | 186.1 | 20 | — | — |
| 083-47Z | 47 | 196.9 | 190.14 | 20 | — | — |
| 083-48Z | 48 | 201 | 194.18 | 20 | — | — |
| 083-49Z | 49 | 205 | 198.22 | 20 | — | — |
| 083-50Z | 50 | 209.1 | 202.26 | 20 | — | — |
| 083-51Z | 51 | 213.1 | 206.3 | 20 | — | — |
| 083-52Z | 52 | 217.1 | 210.34 | 20 | — | — |
| 083-53Z | 53 | 221.2 | 214.37 | 20 | — | — |
| 083-54Z | 54 | 225.2 | 218.43 | 20 | — | — |
| 083-55Z | 55 | 229.3 | 222.46 | 20 | — | — |
| 083-56Z | 56 | 233.3 | 226.5 | 20 | — | — |
| 083-57Z | 57 | 237.3 | 230.54 | 20 | — | — |
| 083-58Z | 58 | 241.4 | 234.58 | 20 | — | — |
| 083-59Z | 59 | 245.4 | 238.62 | 20 | — | — |
| 083-60Z | 60 | 249.5 | 242.66 | 20 | — | — |
| 083-62Z | 62 | 257.5 | 250.75 | 20 | — | — |
| 083-64Z | 64 | 265.6 | 258.82 | 20 | — | — |
| 083-65Z | 65 | 269.7 | 262.86 | 20 | — | — |
| 083-66Z | 66 | 273.7 | 266.9 | 25 | — | — |
| 083-68Z | 68 | 281.8 | 274.99 | 25 | — | — |
| 083-70Z | 70 | 289.9 | 283.07 | 25 | — | — |
| 083-72Z | 72 | 298 | 291.16 | 25 | — | — |
| 083-75Z | 75 | 310.1 | 303.27 | 25 | — | — |
| 083-76Z | 76 | 314.1 | 307.33 | 25 | — | — |
| 083-78Z | 78 | 322.2 | 315.4 | 25 | — | — |
| 083-80Z | 80 | 330.3 | 323.48 | 25 | — | — |
| 083-85Z | 85 | 350.5 | 343.69 | 25 | — | — |
| 083-90Z | 90 | 370.7 | 363.9 | 25 | — | — |
| 083-95Z | 95 | 390.9 | 384.11 | 25 | — | — |
| 083-100Z | 100 | 411.1 | 404.31 | 25 | — | — |
| 083-110Z | 110 | 451.5 | 444.74 | 25 | — | — |
| 083-114Z | 114 | 467.7 | 460.9 | 25 | — | — |
| 083-120Z | 120 | 492 | 485.16 | 25 | — | — |
| 083-125Z | 125 | 512.2 | 505.37 | 25 | — | — |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 08B-8Z | 8 | 38 | 33.18 | 8 | 10 | 10 |
| 08B-9Z | 9 | 42 | 37.13 | 8 | 10 | 10 |
| 08B-10Z | 10 | 45.9 | 41.1 | 8 | 10 | 10 |
| 08B-11Z | 11 | 49.9 | 45.07 | 10 | 10 | 12 |
| 08B-12Z | 12 | 53.9 | 49.07 | 10 | 10 | 12 |
| 08B-13Z | 13 | 57.9 | 53.06 | 10 | 10 | 12 |
| 08B-14Z | 14 | 61.9 | 57.07 | 10 | 10 | 12 |
| 08B-15Z | 15 | 65.9 | 61.09 | 10 | 10 | 12 |
| 08B-16Z | 16 | 69.9 | 65.1 | 10 | 12 | 16 |
| 08B-17Z | 17 | 74 | 69.11 | 10 | 12 | 16 |
| 08B-18Z | 18 | 78 | 73.14 | 10 | 12 | 16 |
| 08B-19Z | 19 | 82 | 77.16 | 10 | 12 | 16 |
| 08B-20Z | 20 | 86 | 81.19 | 10 | 12 | 16 |
| 08B-21Z | 21 | 90.1 | 85.22 | 12 | 16 | 16 |
| 08B-22Z | 22 | 94.1 | 89.24 | 12 | 16 | 16 |
| 08B-23Z | 23 | 98.1 | 93.27 | 12 | 16 | 16 |
| 08B-24Z | 24 | 102.1 | 97.29 | 12 | 16 | 16 |
| 08B-25Z | 25 | 106.2 | 101.33 | 12 | 16 | 16 |
| 08B-26Z | 26 | 110.2 | 105.36 | 16 | 16 | 16 |
| 08B-27Z | 27 | 114.2 | 109.4 | 16 | 16 | 16 |
| 08B-28Z | 28 | 118.3 | 113.42 | 16 | 16 | 16 |
| 08B-29Z | 29 | 122.3 | 117.46 | 16 | 16 | 16 |
| 08B-30Z | 30 | 126.3 | 121.5 | 16 | 16 | 16 |
| 08B-31Z | 31 | 130.4 | 125.54 | 16 | 16 | 20 |
| 08B-32Z | 32 | 134.4 | 129.56 | 16 | 16 | 20 |
| 08B-33Z | 33 | 138.4 | 133.6 | 16 | 16 | 20 |
| 08B-34Z | 34 | 142.5 | 137.64 | 16 | 16 | 20 |
| 08B-35Z | 35 | 146.5 | 141.68 | 16 | 16 | 20 |
| 08B-36Z | 36 | 150.6 | 145.72 | 16 | 20 | 20 |
| 08B-37Z | 37 | 154.6 | 149.76 | 16 | 20 | 20 |
| 08B-38Z | 38 | 158.6 | 153.8 | 16 | 20 | 20 |
| 08B-39Z | 39 | 162.7 | 157.83 | 16 | 20 | 20 |
| 08B-40Z | 40 | 166.7 | 161.87 | 16 | 20 | 20 |
| 08B-41Z | 41 | 172.4 | 165.91 | 20 | 20 | 25 |
| 08B-42Z | 42 | 176.5 | 169.95 | 20 | 20 | 25 |
| 08B-43Z | 43 | 180.5 | 173.99 | 20 | 20 | 25 |
| 08B-44Z | 44 | 184.6 | 178.03 | 20 | 20 | 25 |
| 08B-45Z | 45 | 188.6 | 182.07 | 20 | 20 | 25 |
| 08B-46Z | 46 | 192.6 | 186.1 | 20 | 20 | 25 |
| 08B-47Z | 47 | 196.7 | 190.14 | 20 | 20 | 25 |
| 08B-48Z | 48 | 200.7 | 194.18 | 20 | 20 | 25 |
| 08B-49Z | 49 | 204.8 | 198.22 | 20 | 20 | 25 |
| 08B-50Z | 50 | 208.8 | 202.26 | 20 | 20 | 25 |
| 08B-51Z | 51 | 212.8 | 206.3 | 20 | 25 | 25 |
| 08B-52Z | 52 | 216.9 | 210.34 | 20 | 25 | 25 |
| 08B-53Z | 53 | 220.9 | 214.37 | 20 | 25 | 25 |
| 08B-54Z | 54 | 225 | 218.43 | 20 | 25 | 25 |
| 08B-55Z | 55 | 229 | 222.46 | 20 | 25 | 25 |
| 08B-56Z | 56 | 233 | 226.5 | 20 | 25 | 25 |
| 08B-57Z | 57 | 237.1 | 230.54 | 20 | 25 | 25 |
| 08B-58Z | 58 | 241.1 | 234.58 | 20 | 25 | 25 |
| 08B-59Z | 59 | 245.2 | 238.62 | 20 | 25 | 25 |
| 08B-60Z | 60 | 249.2 | 242.66 | 20 | 25 | 25 |
| 08B-62Z | 62 | 257.3 | 250.75 | 25 | 25 | 25 |
| 08B-64Z | 64 | 265.4 | 258.82 | 25 | 25 | 25 |
| 08B-65Z | 65 | 269.4 | 262.86 | 25 | 25 | 25 |
| 08B-66Z | 66 | 273.4 | 266.9 | 25 | 25 | 25 |
| 08B-68Z | 68 | 281.5 | 274.99 | 25 | 25 | 25 |
| 08B-70Z | 70 | 289.6 | 283.07 | 25 | 25 | 25 |
| 08B-72Z | 72 | 297.7 | 291.16 | 25 | 25 | 25 |
| 08B-75Z | 75 | 309.8 | 303.27 | 25 | 25 | 25 |
| 08B-76Z | 76 | 313.9 | 307.33 | 25 | 25 | 25 |
| 08B-78Z | 78 | 321.9 | 315.4 | 25 | 25 | 25 |
| 08B-80Z | 80 | 330 | 323.48 | 25 | 25 | 25 |
| 08B-85Z | 85 | 350.2 | 343.69 | 25 | 25 | 25 |
| 08B-90Z | 90 | 370.4 | 363.9 | 25 | 25 | 25 |
| 08B-95Z | 95 | 390.7 | 384.11 | 25 | 25 | 25 |
| 08B-100Z | 100 | 410.9 | 404.31 | 25 | 25 | 25 |
| 08B-110Z | 110 | 451.3 | 444.74 | 25 | 25 | 25 |
| 08B-114Z | 114 | 467.4 | 460.9 | 25 | 25 | 25 |
| 08B-120Z | 120 | 491.7 | 485.16 | 25 | 25 | 25 |
| 08B-125Z | 125 | 511 | 505.37 | 25 | 25 | 25 |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 10B-8Z | 8 | 48.5 | 41.48 | 10 | 10 | 12 |
| 10B-9Z | 9 | 53.3 | 46.42 | 10 | 10 | 12 |
| 10B-10Z | 10 | 58.3 | 51.37 | 10 | 10 | 12 |
| 10B-11Z | 11 | 63.2 | 56.34 | 10 | 12 | 12 |
| 10B-12Z | 12 | 68.2 | 61.34 | 10 | 12 | 12 |
| 10B-13Z | 13 | 73.2 | 66.32 | 10 | 12 | 12 |
| 10B-14Z | 14 | 78.2 | 71.34 | 10 | 12 | 12 |
| 10B-15Z | 15 | 83.2 | 76.36 | 10 | 12 | 12 |
| 10B-16Z | 16 | 88.3 | 81.37 | 12 | 12 | 16 |
| 10B-17Z | 17 | 93.3 | 86.39 | 12 | 12 | 16 |
| 10B-18Z | 18 | 98.3 | 91.42 | 12 | 12 | 16 |
| 10B-19Z | 19 | 103.3 | 96.45 | 12 | 12 | 16 |
| 10B-20Z | 20 | 108.4 | 101.49 | 12 | 12 | 16 |
| 10B-21Z | 21 | 113.4 | 106.52 | 12 | 16 | 16 |
| 10B-22Z | 22 | 118.4 | 111.55 | 12 | 16 | 16 |
| 10B-23Z | 23 | 123.5 | 116.58 | 12 | 16 | 16 |
| 10B-24Z | 24 | 128.5 | 121.62 | 12 | 16 | 16 |
| 10B-25Z | 25 | 133.6 | 126.66 | 12 | 16 | 16 |
| 10B-26Z | 26 | 138.6 | 131.7 | 16 | 16 | 20 |
| 10B-27Z | 27 | 143.6 | 136.75 | 16 | 16 | 20 |
| 10B-28Z | 28 | 148.7 | 141.78 | 16 | 16 | 20 |
| 10B-29Z | 29 | 153.7 | 146.83 | 16 | 16 | 20 |
| 10B-30Z | 30 | 158.8 | 151.87 | 16 | 16 | 20 |
| 10B-31Z | 31 | 163.8 | 156.92 | 16 | 20 | 20 |
| 10B-32Z | 32 | 168.9 | 161.95 | 16 | 20 | 20 |
| 10B-33Z | 33 | 173.9 | 167 | 16 | 20 | 20 |
| 10B-34Z | 34 | 178.9 | 172.05 | 16 | 20 | 20 |
| 10B-35Z | 35 | 184 | 177.1 | 16 | 20 | 20 |
| 10B-36Z | 36 | 189 | 182.15 | 20 | 20 | 25 |
| 10B-37Z | 37 | 194.1 | 187.2 | 20 | 20 | 25 |
| 10B-38Z | 38 | 199.1 | 192.24 | 20 | 20 | 25 |
| 10B-39Z | 39 | 204.2 | 197.29 | 20 | 20 | 25 |
| 10B-40Z | 40 | 209.2 | 202.34 | 20 | 20 | 25 |
| 10B-41Z | 41 | 215.8 | 207.39 | 20 | 20 | 25 |
| 10B-42Z | 42 | 220.8 | 212.44 | 20 | 20 | 25 |
| 10B-43Z | 43 | 225.9 | 217.49 | 20 | 20 | 25 |
| 10B-44Z | 44 | 230.9 | 222.53 | 20 | 20 | 25 |
| 10B-45Z | 45 | 236 | 227.58 | 20 | 20 | 25 |
| 10B-46Z | 46 | 241 | 232.63 | 20 | 25 | 25 |
| 10B-47Z | 47 | 246.1 | 237.68 | 20 | 25 | 25 |
| 10B-48Z | 48 | 251.1 | 242.73 | 20 | 25 | 25 |
| 10B-49Z | 49 | 256.2 | 247.78 | 20 | 25 | 25 |
| 10B-50Z | 50 | 261.2 | 252.82 | 20 | 25 | 25 |
| 10B-51Z | 51 | 266.3 | 257.87 | 20 | 25 | 25 |
| 10B-52Z | 52 | 271.3 | 262.92 | 20 | 25 | 25 |
| 10B-53Z | 53 | 276.4 | 267.97 | 20 | 25 | 25 |
| 10B-54Z | 54 | 281.4 | 273.03 | 20 | 25 | 25 |
| 10B-55Z | 55 | 286.5 | 278.08 | 20 | 25 | 25 |
| 10B-56Z | 56 | 291.5 | 283.13 | 25 | 25 | 25 |
| 10B-57Z | 57 | 296.6 | 288.18 | 25 | 25 | 25 |
| 10B-58Z | 58 | 301.6 | 293.23 | 25 | 25 | 25 |
| 10B-59Z | 59 | 306.7 | 298.27 | 25 | 25 | 25 |
| 10B-60Z | 60 | 311.7 | 303.32 | 25 | 25 | 25 |
| 10B-62Z | 62 | 321.8 | 313.43 | 25 | 25 | 25 |
| 10B-64Z | 64 | 331.9 | 323.53 | 25 | 25 | 30 |
| 10B-65Z | 65 | 337 | 328.58 | 25 | 25 | 30 |
| 10B-66Z | 66 | 342 | 333.63 | 25 | 25 | 25 |
| 10B-68Z | 68 | 352.1 | 343.74 | 25 | 25 | 30 |
| 10B-70Z | 70 | 362.2 | 353.84 | 25 | 25 | 30 |
| 10B-72Z | 72 | 372.3 | 363.95 | 25 | 25 | 30 |
| 10B-75Z | 75 | 387.5 | 379.09 | 25 | 25 | 30 |
| 10B-76Z | 76 | 392.5 | 384.16 | 25 | 25 | 30 |
| 10B-78Z | 78 | 402.6 | 394.25 | 25 | 25 | 30 |
| 10B-80Z | 80 | 412.7 | 404.35 | 25 | 30 | 30 |
| 10B-85Z | 85 | 438 | 429.62 | 30 | 30 | 30 |
| 10B-90Z | 90 | 463.3 | 454.88 | 30 | 30 | 30 |
| 10B-95Z | 95 | 488.5 | 480.14 | 30 | 30 | 30 |
| 10B-100Z | 100 | 513.8 | 505.4 | 30 | 30 | 30 |
| 10B-110Z | 110 | 564.3 | 555.92 | 30 | 30 | 30 |
| 10B-114Z | 114 | 584.5 | 576.13 | 30 | 30 | 30 |
| 10B-120Z | 120 | 614.8 | 606.44 | 30 | 30 | 30 |
| 10B-125Z | 125 | 640.1 | 631.71 | 30 | 30 | 30 |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 12B-8Z | 8 | 58 | 49.78 | 12 | 12 | 12 |
| 12B-9Z | 9 | 63.9 | 55.7 | 12 | 12 | 12 |
| 12B-10Z | 10 | 69.8 | 61.64 | 12 | 12 | 12 |
| 12B-11Z | 11 | 75.8 | 67.61 | 14 | 14 | 14 |
| 12B-12Z | 12 | 81.8 | 73.6 | 14 | 14 | 14 |
| 12B-13Z | 13 | 87.8 | 79.59 | 14 | 14 | 14 |
| 12B-14Z | 14 | 93.8 | 85.61 | 14 | 14 | 14 |
| 12B-15Z | 15 | 99.8 | 91.63 | 14 | 14 | 14 |
| 12B-16Z | 16 | 105.8 | 97.65 | 14 | 16 | 16 |
| 12B-17Z | 17 | 111.9 | 103.67 | 14 | 16 | 16 |
| 12B-18Z | 18 | 117.9 | 109.71 | 14 | 16 | 16 |
| 12B-19Z | 19 | 123.9 | 115.75 | 14 | 16 | 16 |
| 12B-20Z | 20 | 130 | 121.78 | 14 | 16 | 16 |
| 12B-21Z | 21 | 136 | 127.82 | 16 | 16 | 20 |
| 12B-22Z | 22 | 142 | 133.86 | 16 | 16 | 20 |
| 12B-23Z | 23 | 148.1 | 139.9 | 16 | 16 | 20 |
| 12B-24Z | 24 | 154.1 | 145.94 | 16 | 16 | 20 |
| 12B-25Z | 25 | 160.2 | 152 | 16 | 16 | 20 |
| 12B-26Z | 26 | 166.2 | 158.04 | 16 | 20 | 20 |
| 12B-27Z | 27 | 172.3 | 164.09 | 16 | 20 | 20 |
| 12B-28Z | 28 | 178.3 | 170.13 | 16 | 20 | 20 |
| 12B-29Z | 29 | 184.4 | 176.19 | 16 | 20 | 20 |
| 12B-30Z | 30 | 190.4 | 182.25 | 16 | 20 | 20 |
| 12B-31Z | 31 | 196.5 | 188.31 | 20 | 20 | 25 |
| 12B-32Z | 32 | 202.5 | 194.35 | 20 | 20 | 25 |
| 12B-33Z | 33 | 208.6 | 200.4 | 20 | 20 | 25 |
| 12B-34Z | 34 | 214.6 | 206.46 | 20 | 20 | 25 |
| 12B-35Z | 35 | 220.7 | 212.52 | 20 | 20 | 25 |
| 12B-36Z | 36 | 226.8 | 218.58 | 20 | 25 | 25 |
| 12B-37Z | 37 | 232.8 | 224.64 | 20 | 25 | 25 |
| 12B-38Z | 38 | 239.9 | 230.69 | 20 | 25 | 25 |
| 12B-39Z | 39 | 244.9 | 236.75 | 20 | 25 | 25 |
| 12B-40Z | 40 | 251 | 242.81 | 20 | 25 | 25 |
| 12B-41Z | 41 | 258.9 | 248.87 | 25 | 25 | 25 |
| 12B-42Z | 42 | 265 | 254.93 | 25 | 25 | 25 |
| 12B-43Z | 43 | 271.1 | 260.98 | 25 | 25 | 25 |
| 12B-44Z | 44 | 277.1 | 267.03 | 25 | 25 | 25 |
| 12B-45Z | 45 | 283.2 | 273.1 | 25 | 25 | 25 |
| 12B-46Z | 46 | 289.2 | 279.16 | 25 | 25 | 25 |
| 12B-47Z | 47 | 295.3 | 285.21 | 25 | 25 | 25 |
| 12B-48Z | 48 | 301.4 | 291.27 | 25 | 25 | 25 |
| 12B-49Z | 49 | 307.4 | 297.33 | 25 | 25 | 25 |
| 12B-50Z | 50 | 313.5 | 303.39 | 25 | 25 | 25 |
| 12B-51Z | 51 | 319.5 | 309.45 | 25 | 25 | 25 |
| 12B-52Z | 52 | 325.6 | 315.5 | 25 | 25 | 25 |
| 12B-53Z | 53 | 331.6 | 321.56 | 25 | 25 | 25 |
| 12B-54Z | 54 | 337.7 | 327.64 | 25 | 25 | 25 |
| 12B-55Z | 55 | 343.8 | 333.7 | 25 | 25 | 25 |
| 12B-56Z | 56 | 349.8 | 339.75 | 25 | 25 | 30 |
| 12B-57Z | 57 | 355.9 | 345.81 | 25 | 25 | 30 |
| 12B-58Z | 58 | 362 | 351.87 | 25 | 25 | 30 |
| 12B-59Z | 59 | 368 | 357.93 | 25 | 25 | 30 |
| 12B-60Z | 60 | 374.1 | 363.99 | 25 | 25 | 30 |
| 12B-62Z | 62 | 386.2 | 376.12 | 25 | 30 | 30 |
| 12B-64Z | 64 | 398.3 | 388.24 | 25 | 30 | 30 |
| 12B-65Z | 65 | 404.4 | 394.29 | 25 | 30 | 30 |
| 12B-66Z | 66 | 410.4 | 400.34 | 30 | 30 | 30 |
| 12B-68Z | 68 | 422.6 | 412.49 | 30 | 30 | 30 |
| 12B-70Z | 70 | 434.7 | 424.6 | 30 | 30 | 30 |
| 12B-72Z | 72 | 446.8 | 436.74 | 30 | 30 | 30 |
| 12B-75Z | 75 | 465 | 454.91 | 30 | 30 | 30 |
| 12B-76Z | 76 | 471.1 | 460.99 | 30 | 30 | 30 |
| 12B-78Z | 78 | 483.2 | 473.1 | 30 | 30 | 30 |
| 12B-80Z | 80 | 495.3 | 485.22 | 30 | 30 | 30 |
| 12B-85Z | 85 | 525.6 | 515.55 | 30 | 30 | 30 |
| 12B-90Z | 90 | 555.9 | 545.86 | 30 | 30 | 30 |
| 12B-95Z | 95 | 586.2 | 576.1 | 30 | 30 | 30 |
| 12B-100Z | 100 | 616.6 | 606.47 | 30 | 30 | 30 |
| 12B-110Z | 110 | 677.2 | 667.11 | 30 | 30 | 30 |
| 12B-114Z | 114 | 701.4 | 691.36 | 30 | 30 | 30 |
| 12B-120Z | 120 | 737.8 | 727.74 | 30 | 30 | 30 |
| 12B-125Z | 125 | 768.1 | 758.05 | 30 | 30 | 30 |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 16B-8Z | 8 | 77.9 | 66.37 | 12 | 16 | 20 |
| 16B-9Z | 9 | 85.8 | 74.27 | 12 | 16 | 20 |
| 16B-10Z | 10 | 93.8 | 82.19 | 12 | 16 | 20 |
| 16B-11Z | 11 | 101.7 | 90.14 | 16 | 20 | 20 |
| 16B-12Z | 12 | 109.7 | 98.14 | 16 | 20 | 20 |
| 16B-13Z | 13 | 117.7 | 106.12 | 16 | 20 | 20 |
| 16B-14Z | 14 | 125.7 | 114.15 | 16 | 20 | 20 |
| 16B-15Z | 15 | 133.7 | 122.17 | 16 | 20 | 20 |
| 16B-16Z | 16 | 141.8 | 130.2 | 20 | 20 | 30 |
| 16B-17Z | 17 | 149.8 | 138.22 | 20 | 20 | 30 |
| 16B-18Z | 18 | 157.8 | 146.28 | 20 | 20 | 30 |
| 16B-19Z | 19 | 165.9 | 154.33 | 20 | 20 | 30 |
| 16B-20Z | 20 | 173.9 | 162.38 | 20 | 20 | 30 |
| 16B-21Z | 21 | 182 | 170.43 | 20 | 25 | 30 |
| 16B-22Z | 22 | 190.1 | 178.48 | 20 | 25 | 30 |
| 16B-23Z | 23 | 198.1 | 186.53 | 20 | 25 | 30 |
| 16B-24Z | 24 | 206.2 | 194.59 | 20 | 25 | 30 |
| 16B-25Z | 25 | 214.2 | 202.66 | 20 | 25 | 30 |
| 16B-26Z | 26 | 222.3 | 210.72 | 20 | 25 | 30 |
| 16B-27Z | 27 | 230.4 | 218.79 | 20 | 25 | 30 |
| 16B-28Z | 28 | 238.4 | 226.85 | 20 | 25 | 30 |
| 16B-29Z | 29 | 246.5 | 234.92 | 20 | 25 | 30 |
| 16B-30Z | 30 | 254.6 | 243 | 20 | 25 | 30 |
| 16B-31Z | 31 | 262.6 | 251.08 | 25 | 25 | 30 |
| 16B-32Z | 32 | 270.7 | 259.13 | 25 | 25 | 30 |
| 16B-33Z | 33 | 278.7 | 267.21 | 25 | 25 | 30 |
| 16B-34Z | 34 | 286.9 | 275.28 | 25 | 25 | 30 |
| 16B-35Z | 35 | 294.9 | 283.36 | 25 | 25 | 30 |
| 16B-36Z | 36 | 303 | 291.44 | 25 | 25 | 30 |
| 16B-37Z | 37 | 311.1 | 299.51 | 25 | 25 | 30 |
| 16B-38Z | 38 | 319.2 | 307.59 | 25 | 25 | 30 |
| 16B-39Z | 39 | 327.2 | 315.67 | 25 | 25 | 30 |
| 16B-40Z | 40 | 335.3 | 323.73 | 25 | 25 | 30 |
| 16B-41Z | 41 | 345.6 | 331.82 | 25 | 25 | 30 |
| 16B-42Z | 42 | 353.7 | 339.9 | 25 | 25 | 30 |
| 16B-43Z | 43 | 361.7 | 347.98 | 25 | 25 | 30 |
| 16B-44Z | 44 | 369.8 | 356.06 | 25 | 25 | 30 |
| 16B-45Z | 45 | 377.9 | 364.12 | 25 | 25 | 30 |
| 16B-46Z | 46 | 386 | 372.21 | 25 | 30 | 30 |
| 16B-47Z | 47 | 394.1 | 380.29 | 25 | 30 | 30 |
| 16B-48Z | 48 | 402.1 | 388.36 | 25 | 30 | 30 |
| 16B-49Z | 49 | 410.2 | 396.44 | 25 | 30 | 30 |
| 16B-50Z | 50 | 418.3 | 404.52 | 25 | 30 | 30 |
| 16B-51Z | 51 | 426.4 | 412.6 | 30 | 30 | 40 |
| 16B-52Z | 52 | 434.5 | 420.67 | 30 | 30 | 40 |
| 16B-53Z | 53 | 442.5 | 428.75 | 30 | 30 | 40 |
| 16B-54Z | 54 | 450.6 | 436.85 | 30 | 30 | 40 |
| 16B-55Z | 55 | 458.7 | 444.93 | 30 | 30 | 40 |
| 16B-56Z | 56 | 466.8 | 453.01 | 30 | 30 | 40 |
| 16B-57Z | 57 | 474.9 | 461.07 | 30 | 30 | 40 |
| 16B-58Z | 58 | 482.9 | 469.16 | 30 | 30 | 40 |
| 16B-59Z | 59 | 491 | 477.24 | 30 | 30 | 40 |
| 16B-60Z | 60 | 499.1 | 485.32 | 30 | 30 | 40 |
| 16B-62Z | 62 | 515.3 | 501.5 | 30 | 30 | 40 |
| 16B-64Z | 64 | 531.4 | 517.65 | 30 | 30 | 40 |
| 16B-65Z | 65 | 439.5 | 525.73 | 30 | 30 | 40 |
| 16B-66Z | 66 | 547.6 | 533.8 | 30 | 30 | 40 |
| 16B-68Z | 68 | 563.8 | 549.98 | 30 | 30 | 40 |
| 16B-70Z | 70 | 579.9 | 566.14 | 30 | 30 | 40 |
| 16B-72Z | 72 | 596.1 | 582.32 | 30 | 30 | 40 |
| 16B-75Z | 75 | 620.3 | 606.55 | 30 | 30 | 40 |
| 16B-76Z | 76 | 628.4 | 614.65 | 30 | 30 | 40 |
| 16B-78Z | 78 | 644.6 | 630.8 | 30 | 30 | 40 |
| 16B-80Z | 80 | 660.7 | 646.96 | 30 | 30 | 40 |
| 16B-85Z | 85 | 701.2 | 687.4 | 30 | 30 | 40 |
| 16B-90Z | 90 | 741.6 | 727.81 | 30 | 30 | 40 |
| 16B-95Z | 95 | 782 | 768.22 | 30 | 30 | 40 |
| 16B-100Z | 100 | 822.4 | 808.63 | 30 | 30 | 40 |
| 16B-110Z | 110 | 903.3 | 889.48 | 30 | 30 | 40 |
| 16B-114Z | 114 | 935.6 | 921.81 | 30 | 40 | 40 |
| 16B-120Z | 120 | 984.1 | 970.33 | 30 | 40 | 40 |
| 16B-125Z | 125 | 1024.5 | 1010.73 | 30 | 40 | 40 |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 20B-8Z | 8 | 96 | 82.98 | 16 | 20 | 20 |
| 20B-9Z | 9 | 106.5 | 92.84 | 16 | 20 | 20 |
| 20B-10Z | 10 | 117 | 102.74 | 16 | 20 | 20 |
| 20B-11Z | 11 | 127 | 112.68 | 16 | 20 | 20 |
| 20B-12Z | 12 | 137 | 122.68 | 20 | 20 | 20 |
| 20B-13Z | 13 | 147.5 | 132.65 | 20 | 20 | 20 |
| 20B-14Z | 14 | 157.6 | 142.68 | 20 | 20 | 20 |
| 20B-15Z | 15 | 167.6 | 152.72 | 20 | 20 | 20 |
| 20B-16Z | 16 | 177.7 | 162.75 | 25 | 25 | 25 |
| 20B-17Z | 17 | 187.8 | 172.78 | 25 | 25 | 25 |
| 20B-18Z | 18 | 197.8 | 182.85 | 25 | 25 | 25 |
| 20B-19Z | 19 | 207.9 | 192.91 | 25 | 25 | 25 |
| 20B-20Z | 20 | 217.9 | 202.98 | 25 | 25 | 25 |
| 20B-21Z | 21 | 228 | 213.04 | 25 | 25 | 25 |
| 20B-22Z | 22 | 238.1 | 223.11 | 25 | 25 | 25 |
| 20B-23Z | 23 | 248.2 | 233.17 | 25 | 25 | 25 |
| 20B-24Z | 24 | 258.3 | 243.23 | 25 | 25 | 25 |
| 20B-25Z | 25 | 268.4 | 253.33 | 25 | 25 | 25 |
| 20B-26Z | 26 | 278.4 | 263.4 | 25 | 25 | 25 |
| 20B-27Z | 27 | 288.5 | 273.48 | 25 | 25 | 25 |
| 20B-28Z | 28 | 298.5 | 283.56 | 25 | 25 | 30 |
| 20B-29Z | 29 | 308.6 | 293.56 | 25 | 25 | 30 |
| 20B-30Z | 30 | 318.7 | 303.75 | 25 | 25 | 30 |
| 20B-31Z | 31 | 328.8 | 313.85 | 25 | 30 | 30 |
| 20B-32Z | 32 | 338.9 | 323.91 | 25 | 30 | 30 |
| 20B-33Z | 33 | 349 | 334.01 | 25 | 30 | 30 |
| 20B-34Z | 34 | 359.1 | 344.1 | 25 | 30 | 30 |
| 20B-35Z | 35 | 369.2 | 354.2 | 25 | 30 | 30 |
| 20B-36Z | 36 | 379.2 | 364.3 | 25 | 30 | 30 |
| 20B-37Z | 37 | 389.3 | 374.39 | 25 | 30 | 40 |
| 20B-38Z | 38 | 399.4 | 384.49 | 25 | 30 | 40 |
| 20B-39Z | 39 | 409.5 | 394.59 | 25 | 30 | 40 |
| 20B-40Z | 40 | 419.6 | 404.66 | 25 | 30 | 40 |
| 20B-41Z | 41 | 430.7 | 414.78 | 30 | 30 | 40 |
| 20B-42Z | 42 | 440.8 | 424.88 | 30 | 30 | 40 |
| 20B-43Z | 43 | 450.9 | 434.97 | 30 | 30 | 40 |
| 20B-44Z | 44 | 461 | 445.07 | 30 | 30 | 40 |
| 20B-45Z | 45 | 471.1 | 455.17 | 30 | 30 | 40 |
| 20B-46Z | 46 | 481.2 | 465.26 | 30 | 30 | 40 |
| 20B-47Z | 47 | 491.3 | 475.36 | 30 | 30 | 40 |
| 20B-48Z | 48 | 501.4 | 485.46 | 30 | 30 | 40 |
| 20B-49Z | 49 | 511.5 | 495.55 | 30 | 30 | 40 |
| 20B-50Z | 50 | 521.6 | 505.65 | 30 | 30 | 40 |
| 20B-51Z | 51 | 531.7 | 515.75 | 30 | 30 | 40 |
| 20B-52Z | 52 | 541.8 | 525.84 | 30 | 30 | 40 |
| 20B-53Z | 53 | 551.9 | 535.94 | 30 | 30 | 40 |
| 20B-54Z | 54 | 562 | 546.07 | 30 | 30 | 40 |
| 20B-55Z | 55 | 572.1 | 556.16 | 30 | 30 | 40 |
| 20B-56Z | 56 | 582.2 | 566.26 | 30 | 30 | 40 |
| 20B-57Z | 57 | 592.3 | 576.36 | 30 | 30 | 40 |
| 20B-58Z | 58 | 602.4 | 586.45 | 30 | 30 | 40 |
| 20B-59Z | 59 | 612.5 | 596.55 | 30 | 30 | 40 |
| 20B-60Z | 60 | 622.6 | 606.65 | 30 | 30 | 40 |
| 20B-62Z | 62 | 642.8 | 626.87 | 30 | 30 | 40 |
| 20B-64Z | 64 | 663 | 647.06 | 30 | 30 | 40 |
| 20B-65Z | 65 | 673.1 | 657.16 | 30 | 30 | 40 |
| 20B-66Z | 66 | 683.2 | 667.26 | 30 | 30 | 40 |
| 20B-68Z | 68 | 703.4 | 687.48 | 30 | 30 | 40 |
| 20B-70Z | 70 | 723.6 | 707.67 | 30 | 30 | 40 |
| 20B-72Z | 72 | 743.8 | 727.9 | 30 | 30 | 40 |
| 20B-75Z | 75 | 774.2 | 758.19 | 30 | 30 | 40 |
| 20B-76Z | 76 | 784.3 | 768.32 | 30 | 30 | 40 |
| 20B-80Z | 80 | 824.7 | 808.32 | 30 | 30 | 40 |
| 20B-85Z | 85 | 875.2 | 859.25 | 30 | 30 | 40 |
| 20B-90Z | 90 | 925.7 | 909.75 | 30 | 30 | 40 |
| 20B-95Z | 95 | 976.2 | 960.28 | 30 | 30 | 40 |
| 20B-100Z | 100 | 1026.7 | 1010.79 | 30 | 40 | 40 |
| 20B-114Z | 114 | 1168.2 | 1152.26 | 30 | 40 | 40 |
| 型号 Code | 齿数 z | de | dp | D1 单排 | D2 双排 | D3 三排 |
|---|---|---|---|---|---|---|
| 24B-8Z | 8 | 113 | 99.55 | 20 | 25 | 25 |
| 24B-9Z | 9 | 125 | 111.4 | 20 | 25 | 25 |
| 24B-10Z | 10 | 137 | 123.29 | 20 | 25 | 25 |
| 24B-11Z | 11 | 149 | 135.21 | 20 | 25 | 25 |
| 24B-12Z | 12 | 161 | 147.22 | 20 | 25 | 25 |
| 24B-13Z | 13 | 173 | 159.18 | 20 | 25 | 25 |
| 24B-14Z | 14 | 185 | 171.22 | 20 | 25 | 25 |
| 24B-15Z | 15 | 197 | 183.26 | 20 | 25 | 25 |
| 24B-16Z | 16 | 209 | 195.3 | 25 | 25 | 25 |
| 24B-17Z | 17 | 221 | 207.34 | 25 | 25 | 25 |
| 24B-18Z | 18 | 233 | 219.42 | 25 | 25 | 25 |
| 24B-19Z | 19 | 245.5 | 231.49 | 25 | 25 | 25 |
| 24B-20Z | 20 | 257.5 | 243.57 | 25 | 25 | 25 |
| 24B-21Z | 21 | 270.5 | 255.65 | 25 | 25 | 30 |
| 24B-22Z | 22 | 282.5 | 267.73 | 25 | 25 | 30 |
| 24B-23Z | 23 | 294.5 | 279.8 | 25 | 25 | 30 |
| 24B-24Z | 24 | 307 | 291.88 | 25 | 25 | 30 |
| 24B-25Z | 25 | 319 | 304 | 25 | 25 | 30 |
| 24B-26Z | 26 | 331 | 316.08 | 30 | 30 | 30 |
| 24B-27Z | 27 | 343 | 328.19 | 30 | 30 | 30 |
| 24B-28Z | 28 | 355 | 340.27 | 30 | 30 | 30 |
| 24B-29Z | 29 | 367.5 | 352.38 | 30 | 30 | 30 |
| 24B-30Z | 30 | 379.5 | 364.5 | 30 | 30 | 40 |
| 24B-31Z | 31 | 391.5 | 376.62 | 30 | 30 | 40 |
| 24B-32Z | 32 | 403.5 | 388.69 | 30 | 30 | 40 |
| 24B-33Z | 33 | 415.5 | 400.81 | 30 | 30 | 40 |
| 24B-34Z | 34 | 428 | 412.93 | 30 | 30 | 40 |
| 24B-35Z | 35 | 440 | 425.04 | 30 | 30 | 40 |
| 24B-36Z | 36 | 452 | 437.16 | 30 | 30 | 40 |
| 24B-37Z | 37 | 464 | 449.27 | 30 | 30 | 40 |
| 24B-38Z | 38 | 476.5 | 461.39 | 30 | 30 | 40 |
| 24B-39Z | 39 | 488.5 | 473.5 | 30 | 30 | 40 |
| 24B-40Z | 40 | 501.5 | 485.62 | 30 | 30 | 40 |
| 24B-41Z | 41 | 513.5 | 497.74 | 30 | 40 | 40 |
| 24B-42Z | 42 | 525.5 | 509.85 | 30 | 40 | 40 |
| 24B-43Z | 43 | 538 | 521.97 | 30 | 40 | 40 |
| 24B-44Z | 44 | 550 | 534.08 | 30 | 40 | 40 |
| 24B-45Z | 45 | 562 | 546.2 | 30 | 40 | 40 |
| 24B-46Z | 46 | 574 | 558.32 | 30 | 40 | 40 |
| 24B-47Z | 47 | 586.5 | 570.43 | 30 | 40 | 40 |
| 24B-48Z | 48 | 598.5 | 582.55 | 30 | 40 | 40 |
| 24B-49Z | 49 | 610.5 | 594.66 | 30 | 40 | 40 |
| 24B-50Z | 50 | 622.5 | 606.78 | 30 | 40 | 40 |
| 24B-51Z | 51 | 635 | 618.89 | 30 | 40 | 40 |
| 24B-52Z | 52 | 647 | 631.01 | 30 | 40 | 40 |
| 24B-53Z | 53 | 659 | 643.13 | 30 | 40 | 40 |
| 24B-54Z | 54 | 671 | 655.25 | 30 | 40 | 40 |
| 24B-55Z | 55 | 683.5 | 667.4 | 30 | 40 | 40 |
| 24B-56Z | 56 | 695.5 | 679.5 | 30 | 40 | 40 |
| 24B-57Z | 57 | 707.5 | 691.63 | 30 | 40 | 40 |
| 24B-58Z | 58 | 719.5 | 703.74 | 30 | 40 | 40 |
| 24B-59Z | 59 | 731.5 | 715.86 | 30 | 40 | 40 |
| 24B-60Z | 60 | 745 | 727.97 | 30 | 40 | 40 |
| 24B-62Z | 62 | 769 | 752.24 | 40 | 40 | 40 |
| 24B-64Z | 64 | 793.5 | 776.48 | 40 | 40 | 40 |
| 24B-65Z | 65 | 805.5 | 788.59 | 40 | 40 | 40 |
| 24B-66Z | 66 | 817.5 | 800.71 | 40 | 40 | 40 |
| 24B-68Z | 68 | 842 | 824.98 | 40 | 40 | 40 |
| 24B-70Z | 70 | 866 | 849.21 | 40 | 40 | 40 |
| 24B-72Z | 72 | 890.5 | 873.48 | 40 | 40 | 40 |
| 24B-75Z | 75 | 926.5 | 909.83 | 40 | 40 | 40 |
| 24B-76Z | 76 | 939 | 921.98 | 40 | 40 | 40 |
| 24B-80Z | 80 | 987.5 | 970.44 | 40 | 40 | 40 |
| 24B-85Z | 85 | 1048 | 1031.1 | 40 | 40 | 40 |
| 24B-90Z | 90 | 1169 | 1152.33 | 40 | 40 | 40 |
静态版只供检索与打印；筛选、排序与一键询价请使用上方在线选型器。所有尺寸单位均为毫米，完整型谱与公差以 PDF 样本为准。
单击列标题可排序。上标 ¹ ² ³ = 单 / 双 / 三排。尺寸单位：毫米。数据来源：沃孚尔链轮产品样本。 下载 PDF 样本 ↗
常见问题
表格收录 709 种标准链轮，覆盖 10 种链号（05B / 06B / 081 / 083 / 08B / 10B / 12B / 16B / 20B / 24B），齿数 8–125，单排 / 双排 / 三排均有。孔径、键槽和顶丝孔按图加工；其他齿数和链号可定制。
无毂平板式链轮，结构轻薄、成本低，可焊接或螺接到法兰 / 轮毂上。下表按链号给出齿数与 D1 / D2 / D3安装尺寸；左右两栏对应不同链号。 带毂链轮可直接加工孔、键槽和顶丝，是直接装轴的常规选择；片式链轮轻薄经济，焊接或螺栓固定在轮毂/法兰上；锥套链轮用 Taper-Lock 锥套免键安装，装拆快、定心好。齿形按 GB/T 1243 / ISO 606 / DIN 8187，齿部可感应淬火。
可以。本页的表格只是样本中的标准规格，所有产品都可以按图制造。起订量 1 件——我们经常为原厂已停产、找不到供应商的 OEM 客户单件补做。发来 DWG、STEP 或 PDF 图纸（或寄样件）：资料齐全后 24 小时内出正式报价，图纸确认后 30 天内交付首件，随货附检测记录。
提供图纸或：链号（ANSI/ISO 号或节距）、齿数、排数、轮毂形式（A/B/C/D）和尺寸、孔径公差和键槽、顶丝孔、淬火要求以及数量。非标链条请提供链条规格表或寄链条实物。
